Omnitron 10/100/1000 Media Converter with Power over Ethernet (PoE or PoE+) - Network (RJ-45) - 4x PoE+ (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2.0 x Expansion Slots - SFP - 2 x SFP Slots - 9459-0-249Z

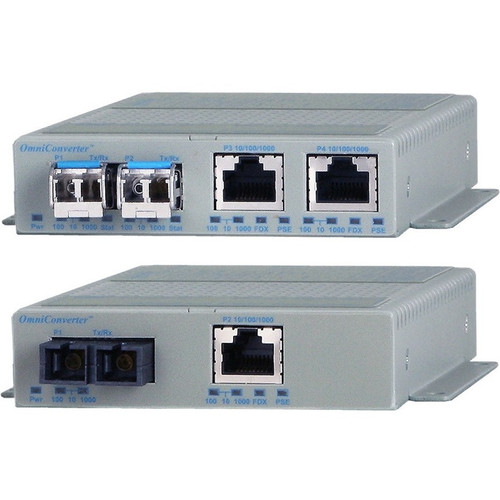

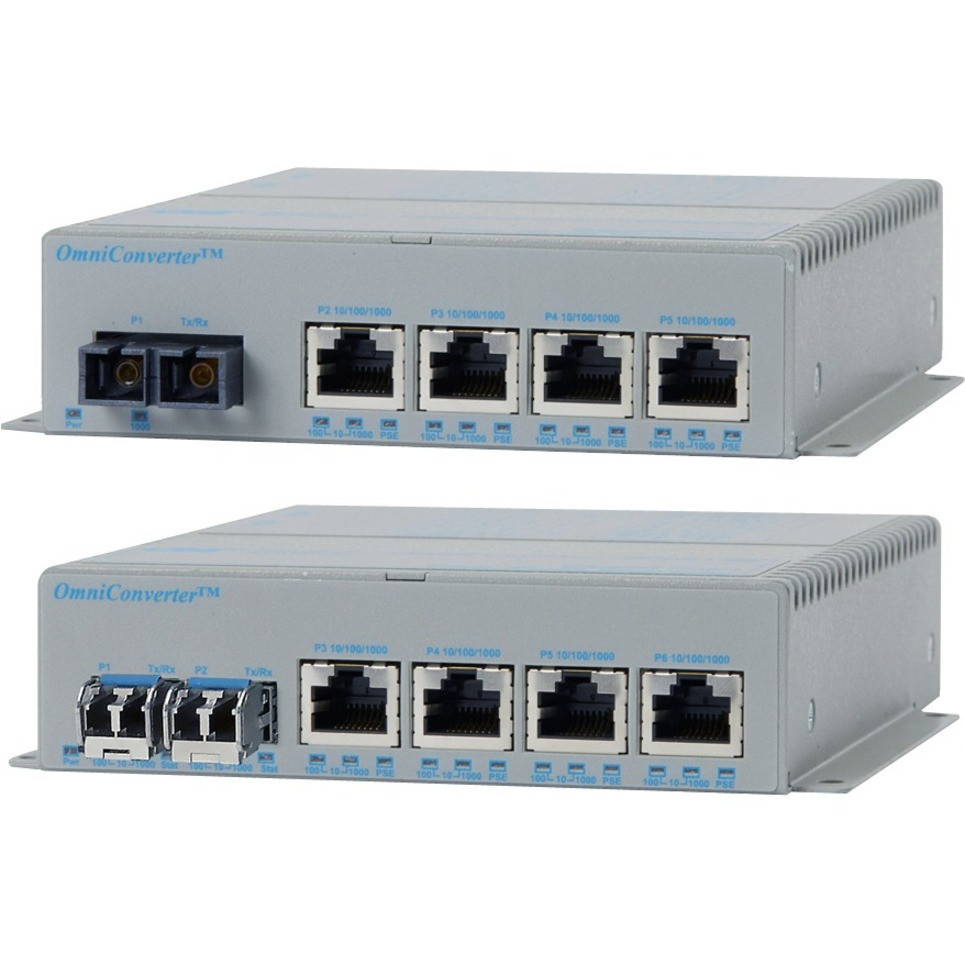

The OmniConverter GPoE+/SX is a multi-port media converter that converts 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber, and support Power-over-Ethernet (PoE and PoE+). OmniConverter PoE media converters provide network distance extension with fiber optic cabling, and function as PoE injectors providing power to four Powered Device (PDs) over standard UTP cables that carry the Ethernet data.
The GPoE+/SX provides up to 34.20W PoE+ (IEEE 802.3at) per RJ-45 port and supports frame sizes up to 10,240 bytes.
Models with two fiber ports support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port may also be used to cascade multiple media converters, or it may be used as another switch port.
Configurable features include Directed Switch Mode, MUX Mode, Dual PoE Device Mode and a PoE power reset.
When configured in Directed Switch Mode, video multicast traffic is only forwarded to the fiber uplink (Port 1), preventing the multicast video traffic from flooding other network ports.
MUX Mode allows the data traffic to be tunneled between two GPoE+/SX converters. The RJ-45 data traffic on one module will be mirrored to the corresponding RJ-45 on the other module.
The dual fiber port models can be configured in Dual PoE Device Mode. When configured, the GPoE+/SX operates as two independent PoE media converters, providing two separate fiber uplink ports.
PoE power reset enables a PD device to be re-initialized remotely. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, enabling the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the OmniConverter, eliminating the need for costly truck rolls to remote PD sites.
OmniConverter media converters support fixed-fiber connectors and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. They support multimode and single-mode dual fiber; and single-mode single-fiber, in standard and CWDM wavelengths.
The compact OmniConverter media converters can be wall mounted or DIN-rail mounted using an optional mounting clip. They are available with DC input power via terminal connectors or external 100 to 240V AC power adapters.
- Meet the multiple network connectivity needs of today's network environment with this 4 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
- The Wall Mountable provides convenient installation
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
