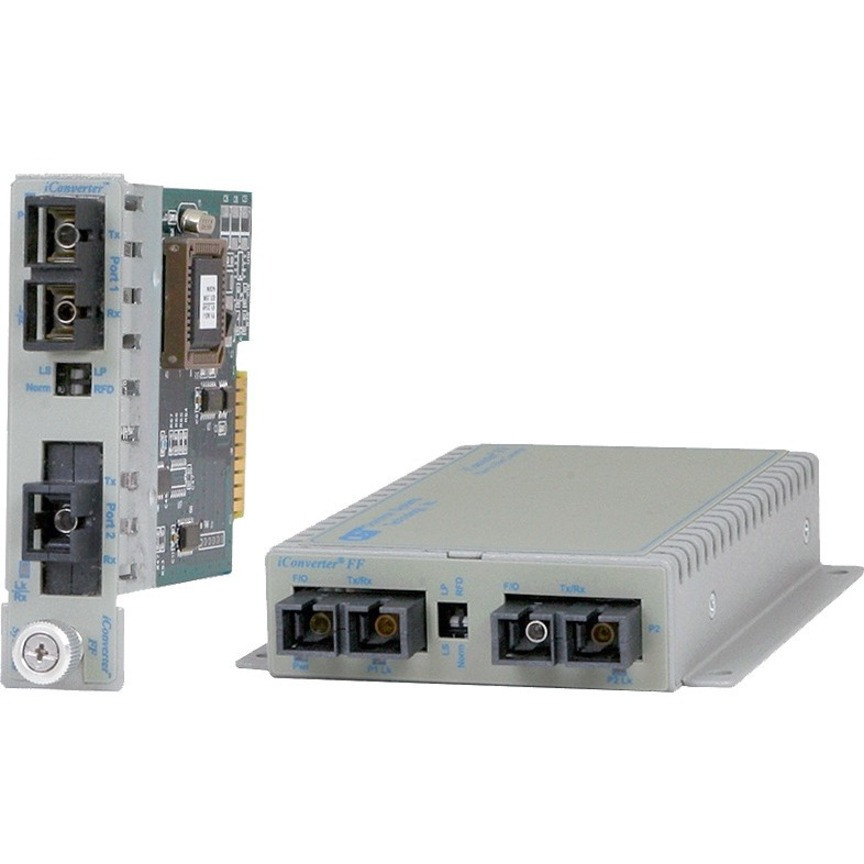

Omnitron 100BASE-FX Single-Mode to Multimode Managed Fiber Converter - 2 x SC Ports - DuplexSC Port - Multi-mode, Single-mode - 0.1 mil, 0 mil Fiber - Fast Ethernet - 100Base-FX, 100Base-ZX - 30 km - AC Adapter - 8622-61
The iConverter 100FF is a Fast Ethernet fiber-to-fiber media converter available as a compact, unmanaged standalone unit or a managed chassis plug-in module. The iConverter 100FF provides a cost-effective solution to extend fiber network distances with multimode to single-mode, dual fiber to singlefiber, and wavelength (850/1310 and 1310/1550) conversion.
iConverter 100FF models support multimode and single-mode dual fiber with ST and SC connectors; and single-mode singlefiber with SC connectors. The multimode fiber port supports distances up to 5km and the single-mode fiber port supports distances up to 120km.
The 100FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.
The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.
The standalone 100FF can be wall-mounted and is DC powered. It can be ordered with an external AC to DC power adapter, or it can be DC powered using a 2-pin terminal connector.
- Conforms to IEEE 802.3 and 100BASE-FX specifications
- Operates with a constant rate signal from 1Mbps to 100Mbps
- Supports multimode, single-mode dual fiber with ST and SC connectors, and single-mode single-fiber with SC connectors
- Supports distances of 120km or longer*
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- LED displays for immediate visual status of each port
- Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- Management of the plug-in module is available with the addition of a management module to the chassis
- SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
- Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
- Lifetime Warranty and free 24/7 Technical Support
