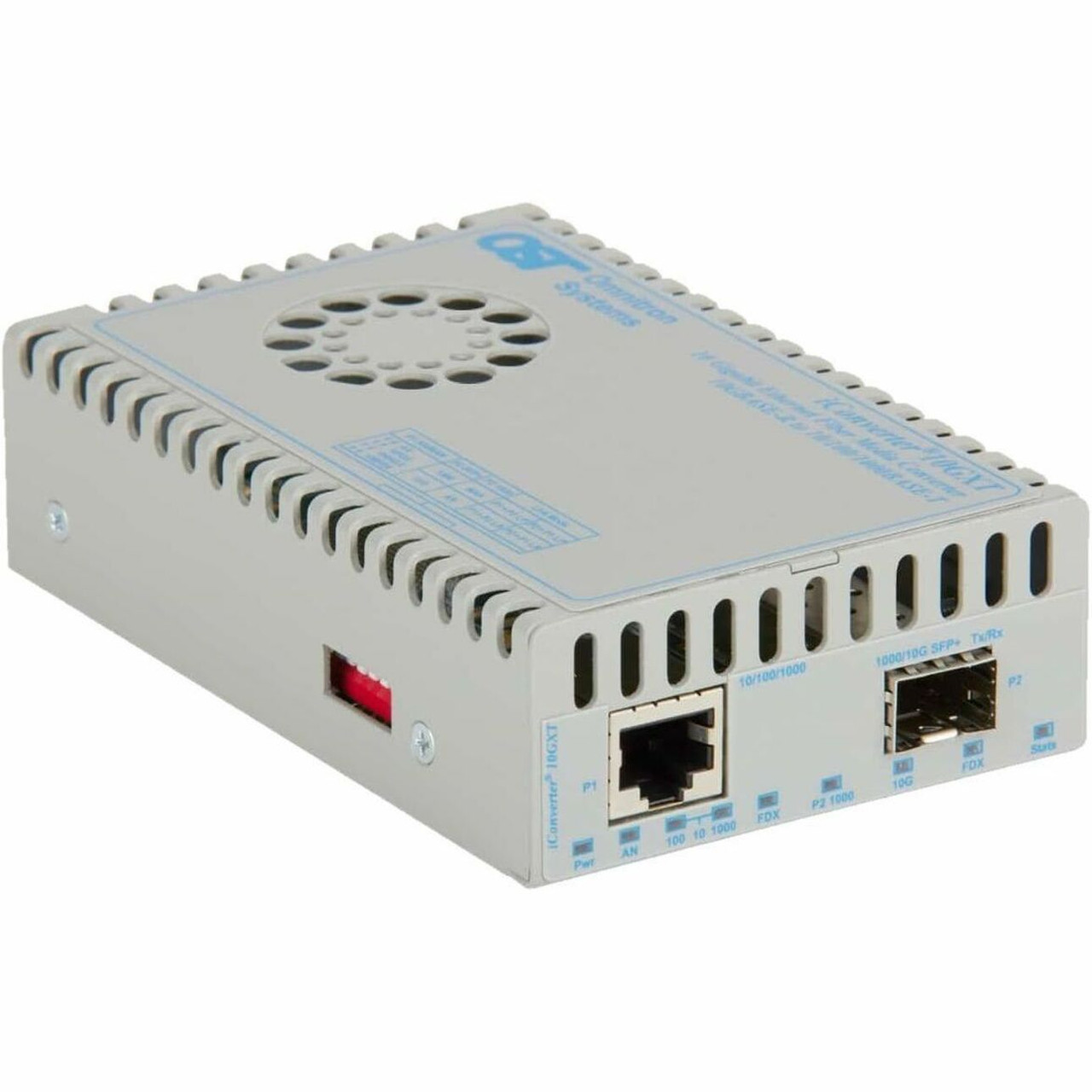

Omnitron iConverter 10GXT 10/100/1000BASE-T to 1000/10G Fiber Media Converter - 1 x Network (RJ-45) - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - SFP+ - 1 x SFP+ Slots - DC - Rack-mountable - 8580-0-CW
The iConverter 10GXT is a 10/100/1000BASE-T copper to 1000BASE-X or 10GBASE-R fiber media converter, and is available as a compact, unmanaged standalone unit. The iConverter 10GXT supports jumbo frames up to 10,056 bytes.
The 10GXT is used to convert 10/100/1000 copper to Gigabit Ethernet fiber or 10 Gigabit Ethernet fiber. The 10GXT supports 1000BASE-X or 10GBASE-R Small Form Pluggable (SFP/SFP+) transceivers or 10GBASE-X XFP transceivers. SFP/SFP+/XFP transceivers enable adaptability to different fiber types and distances, and support Coarse Wave Division Multiplexing (CWDM) and Dense Wave Division Multiplexing (DWDM) technologies to increase the bandwidth capacity of fiber infrastructure.
The RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation with hardware manual override controls.
The 10GXT features user-selectable Link Propagate and Link Segment modes to facilitate quick fault detection, isolation and reporting.
The 10GXT is available as a standalone unit with or without integrated mounting brackets. The 10GXT is DC powered and can be ordered with an external AC to DC power adapter, or 2-pin terminal connector for direct DC voltages up to 16 VDC. The 10GXT can be DIN-Rail mounted using the optional DIN-Rail mounting clips (8251-0).
- 10/100/1000 copper to 1G/10G Fiber Media Converter
- Conforms to IEEE 802.3u, 802.3ab, 802.3z and 802.3ae specifications
- Supports 1G SFP, 10G SFP+ and 10G XFP transceivers
- Supports dual fiber and single-fiber SFP/SFP+ and XFP transceivers for standard, CWDM or DWDM wavelengths
- RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation and MDI/MDIX auto-crossover
- 10,056 byte jumbo frames
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
- TAA, BAA and NDAA compliant, and Made in the USA
- Commercial (0 to 50°C), wide (-40 to 60°C) and extended (-40 to 75°C) temperature ranges
