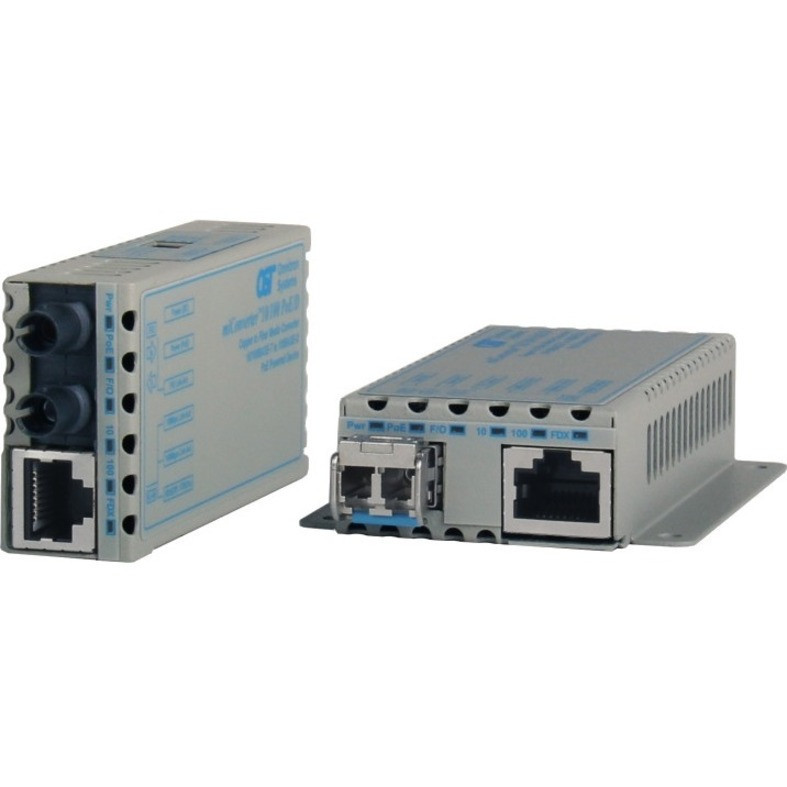

Omnitron Industrial 10/100BASE-T to 100BASE-X Ethernet Media Converters with PoE Powering - 1 x Network (RJ-45) - Fast Ethernet - 100Base-X, 10/100Base-T - 1.0 x Expansion Slots - SFP - 1 x SFP Slots - PoE - Desktop - 1119D-0-19Z
The miniature miConverter™ 10/100 PoE/D is a rate-switching 10/100 RJ-45 copper to 100BASE-X fiber industrial media converter that can be powered with Power over Ethernet (PoE) when connected to PoE switches and midspans. It can also be powered with DC power or AC power with an external power adapter. The miConverter 10/100 PoE/D provides reliable and cost-effective fiber extension in a variety of FTTx applications, including fiber to the desktop and Fiber to the Premises.
The miConverter 10/100 PoE/D features fixed fiber connectors and Small Form Pluggable (SFP) transceivers. ST, SC and LC fixed fiber connectors support multimode, single-mode, and single-mode single-fiber. 100BASE-X SFP transceivers enable adaptability to different fiber types and wavelengths, including Coarse Wave Division Multiplexing (CWDM) wavelengths to increase the bandwidth capacity of fiber infrastructure.
The RJ-45 port can auto-negotiate by detecting the speed and duplex-mode of the connected device. Upon connection to the UTP device, the RJ-45 port speed adjusts to either 10Mbps or 100Mbps, and the duplex-mode adjusts to either Full-Duplex or Half-Duplex. Auto-crossover enables the connection to workstations (MDI port) or hub/switches (MDI-X port) without requiring a crossover cable.
DIP-switches enable manual configuration of the RJ-45 port speed and duplex modes, and configuration of Link Modes (fault-detection capabilities) that enable in the identification and isolation of link failures.
Diagnostic data is provided through front-panel LED indicators that assist in network installation and maintenance. The LEDs display the availability of power, port activity, link status, and the speed and duplex modes of the RJ-45 port.
The miConverter 10/100 PoE/D features power redundancy with AC or DC external power options when used with PoE powering. AC power adapter is available in US, Universal and Country/Region specific models. DC power up to 60VDC is available with a terminal connector option.
The miConverter 10/100 PoE/D is available with or without integrated mounting brackets.
- Industrial Miniature Media Converter with PoE Powering
- Extended (-40º to 75ºC) and industrial* (-40º to 85ºC) operational temperature ranges
- Cost-effective, miniature 10/100BASE-T to 100BASE-X Ethernet media converter powered by PoE
- Supports 10BASE-T, 100BASE-TX, 100BASE-X and IEEE 802.3 specifications
- Compact and light weight
- Fixed fiber port supports multimode and single-mode dual fiber with ST, SC and LC connectors; and singlemode single-fiber with SC connectors
- SFP transceivers for standard or CWDM wavelengths
- RJ-45/PoE port supports Full/Half-Duplex autonegotiation and MDI/MDIX auto-crossover
- LED indicators for RJ-45 and fiber port status
- User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
