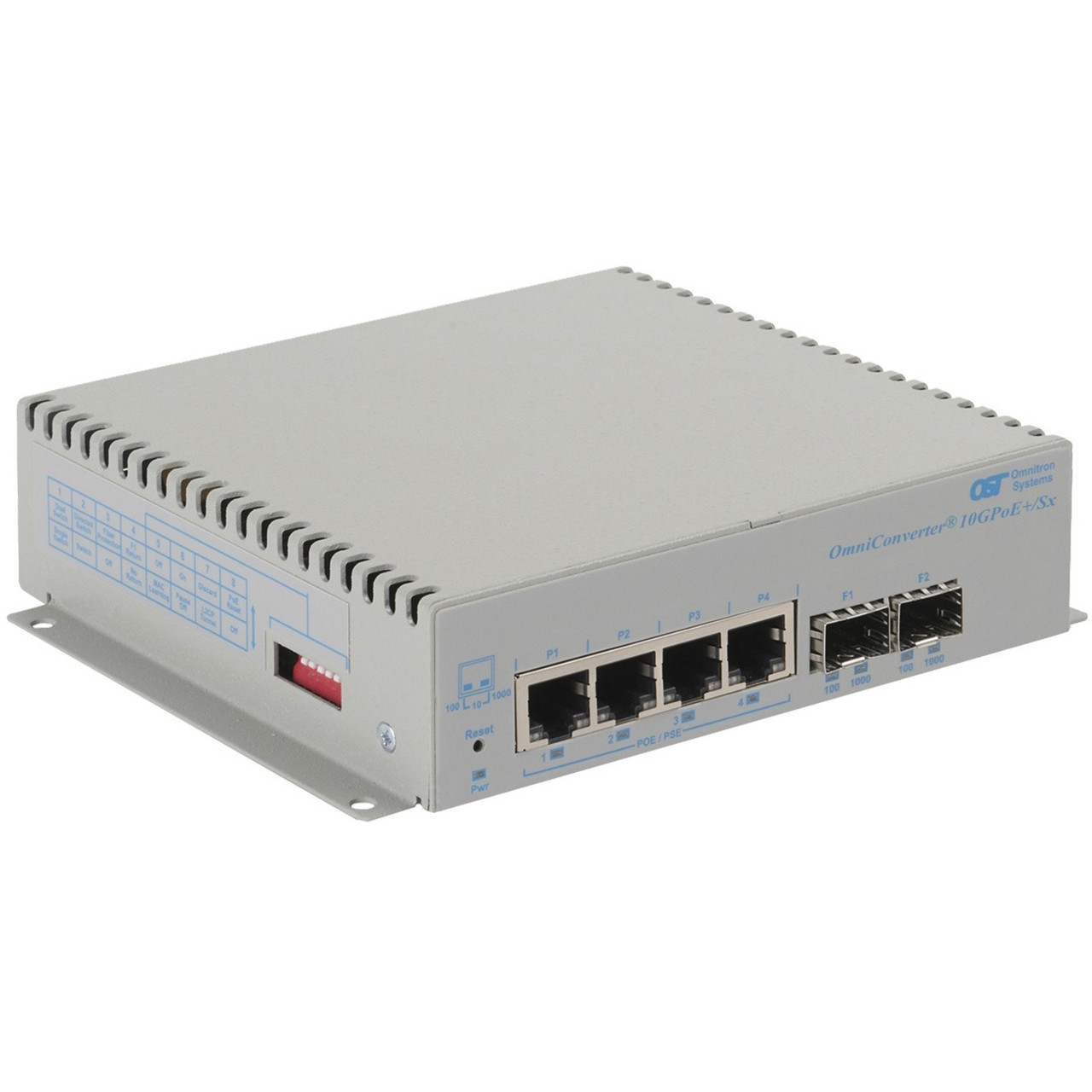

Omnitron OmniConverter 10GPoE+/Sx PoE+, 2xSFP/SFP+, 4xRJ-45, 1xDC Powered Wide Temp - 6 Ports - 2 Layer Supported - Modular - 30 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable - 9581-0-24-9W
The OmniConverter 10G/M is a managed compact Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter 10G/M enables network distance extension with fiber cabling.
The OmniConverter 10G/M is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
The OmniConverter 10G/M supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.
The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.
The switches support Dual Device mode that enables the 10G/M to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/M provides separate and independent data traffic paths between each uplink port and a group of user ports.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.
The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.
The compact OmniConverter 10G/M Ethernet switches can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. The OmniConverter Ethernet switch models are available with 2-Pin DC Terminal or external 100-240V AC power adapters.
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Quickly and easily set up a wired network with 6 networking ports
- Effectively increases available bandwidth on your network
- Terminal Block (2 Wire) plug/connector type for maximum usability with added reliability
