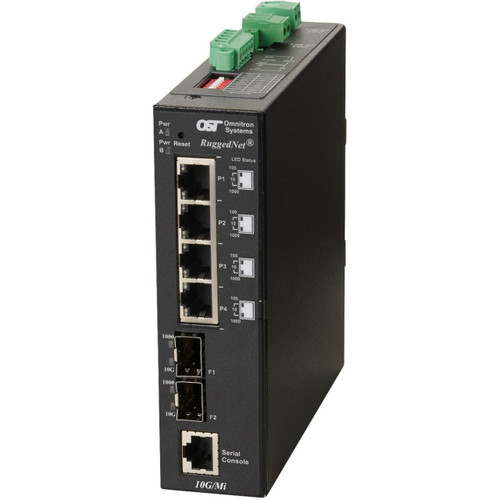

Omnitron RuggedNet 10G/Si, 2xSFP/SFP+, 4xRJ-45, 2xDC Powered Industrial Temp - 6 Ports - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty
The RuggedNet 10G/Si is a ruggedized unmanaged industrial Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 copper user ports. The RuggedNet 10G/Si enables industrial network distance extension with fiber cabling.
The RuggedNet 10G/Si is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.
The switches support Dual Device mode that enables the 10G/Si to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/Si provides separate and independent data traffic paths between each uplink port and a group of user ports.
The 10G/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the RuggedNet for ease of identification and use.
The RuggedNet switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.
The RuggedNet compact industrial Ethernet switches can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 6 networking ports
- Effectively increases available bandwidth on your network
- Terminal Block (2 Wire) plug/connector type for a secure, hassle-free operation
