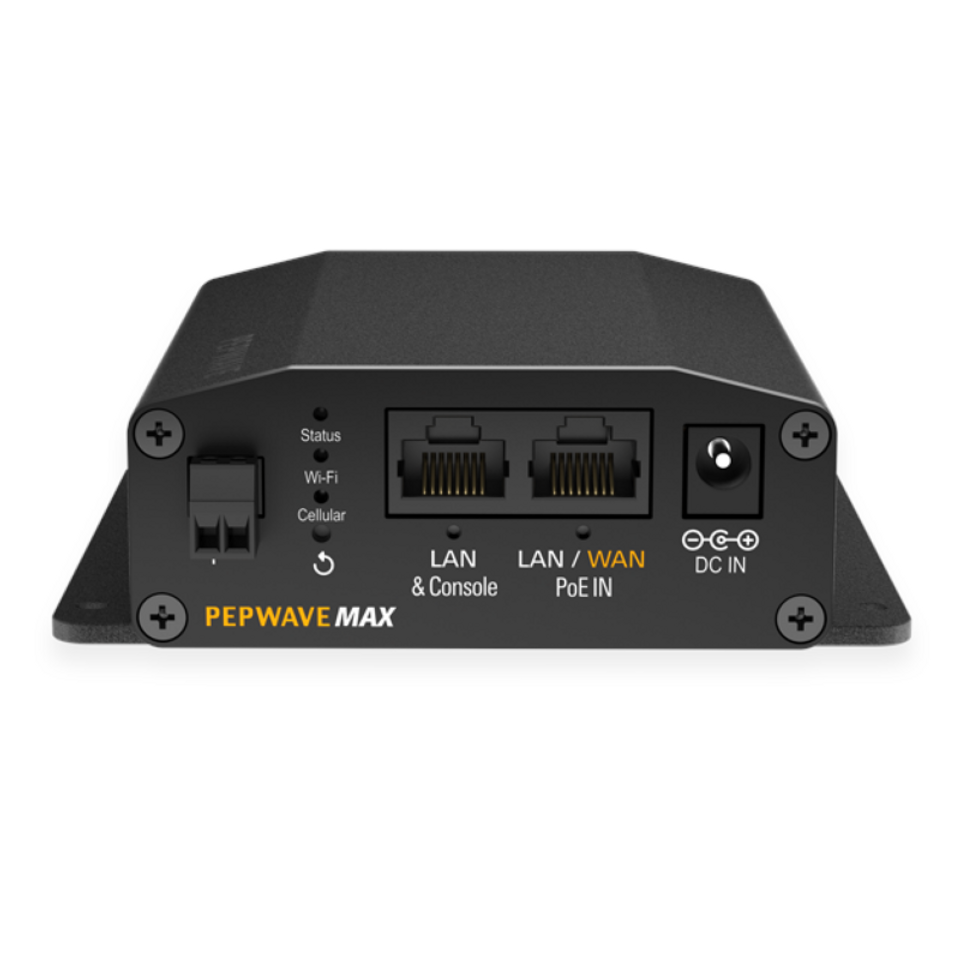

With the Max BR1 Mini, there is always a way to connect. Use a combination of cellular, Ethernet# , and Wi-Fi WAN# to provide users with constant connectivity. Also, when working from home, reliable connectivity is critical. The BR1 Mini provides this seamlessly: no matter what WAN connection the BR1 Mini uses, the user experience remains consistent. The BR1 Mini Core is designed to function where other routers can’t. It is certified For vibration resistance and rolling stock (E Mark, EN 61373, EN 50155, EN 61000). It accepts multiple power inputs and a wide voltage range. Finally, it has an optional mount For Class 1 Div 2 support, and can function in extreme heat and cold.
Core Features:
- Industrial-Grade 4G LTE Router
- 1x Embedded 4G LTE Modem (US/ CAT-4)
- 1x Optional Ethernet WAN
- Optional WAN Failover
- 802.11bgn Wi-Fi AP
- GPS/Fleet Tracking
- Full Antenna set
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 10 × 6 × 3 in |
| Brand | Peplink |
| Networking Device Type | Routers |
- WAN Interface:
- 1x 10/100M Ethernet Port #
- 1x Embedded LTE Modem with Redundant SIM Slot
- Wi-Fi Interface: 802.11b/g/n Wi-Fi WAN # or AP
- Number of PepVPN SpeedFusion Peers: 2/5
- Router Throughput: 100 Mbps
- Number of IPsec Tunnels: 5
- Recommended Users: 60
- Downlink/Uplink Datarate:
- 150Mbps/50Mbps (CAT 4)
- 300Mbps/50Mbps (CAT 6)
- Cellular and GPS Antenna Connector:
- 2x SMA Antenna Connectors
- 1x SMA GPS Antenna Connector
- 1x Wi-Fi Connector
- Power Input:
- DC Jack/Terminal Block: 12V – 28V DC
- Passive PoE Input (WAN Port, 12V – 28V DC)
- Power Consumption: 1.8W (nominal), 12W (max.)
