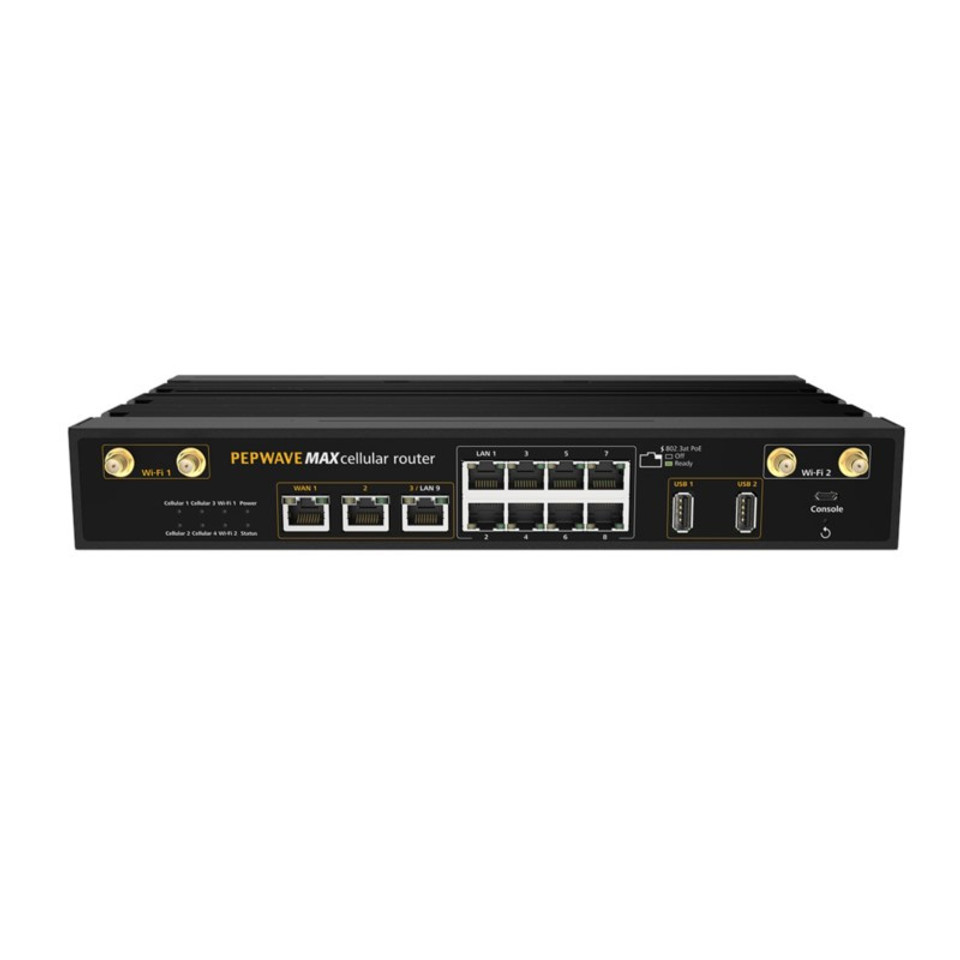

The HD4 MBX is capable of combining the bandwidth of up to 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room For another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.
Core Features:
- Fanless Design
- 8×802.3at PoE Outputs
- Robust Metal Enclosure
- Quad Cellular Bandwidth Bonding
- Ready For any Environment
- Ready to Move
- Gigabit LTE Ready For 5G
| Weight | 7.28 lbs |
|---|---|
| Dimensions | 11.5 × 6.97 × 1.97 in |
| Brand | Peplink |
| Networking Device Type | Routers |
- WAN Interface:
- 2x USB Interface
- 3x GE*
- 4x Embedded LTE-A Pro Modems with Redundant SIM Slots
- LAN Interface: 9x GE*
- Wi-Fi Interface:
- 802.11ac/a/b/g/n, 1166 Mbps 2×2 MIMO Wi-Fi WAN and/or AP
- Simultaneous Dual-Band
- Router Throughput: 2.5 Gbps
- Number of PepVPN SpeedFusion Peers: 2/20/50^
- PepVPN Throughput (No Encryption): 600 Mbps
- PepVPN Throughput (256-bit AES): 500 Mbps
- LTE-A Pro Modems: 4x Modems, Downlink/Uplink Per Modem: 600 Mbps/150 Mbps
- Recommended Users: 50-500
- Cellular and GPS Antenna Connector:
- 8x SMA Antenna Connectors
- 1x SMA GPS Antenna Connector
- 4x RP-SMA Wi-Fi Antenna Connectors
- Power Input: DC Jack/Terminal Block: 12-56 V#
- Power Output: Up to Eight 802.3at PoE Outputs#
- Power Consumption: 55 W (max.)
