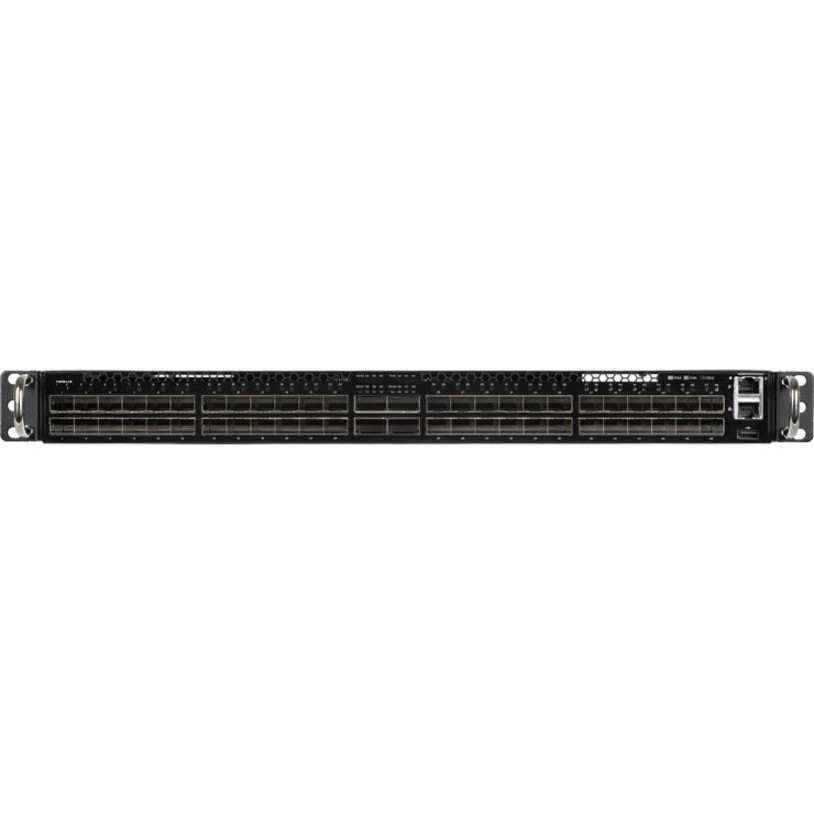

QCT Quanta Mesh T3048-LY8 Layer 3 Switch - Manageable - 4 Layer Supported - Modular - Optical Fiber - 1U High - Rail-mountable, Rack-mountable AIRFLOW P2020 CPU WITH RAIL KIT
A Powerful Spine/Leaf Switch for Datacenter and Cloud Computing
The Quanta Mesh T3048-LY8 is a high performance and low latency layer 2/3/4 Ethernet switch with 48 SFP+ ports and up to 6 QSFP+ port in a 1U form factor. Each 40G QSFP+ port can be independently configured as 40GbE or 4 x 10GbE ports. Built for Infrastructure-as-a-service (IaaS) datacenter deployment, high performance computing clusters and financial applications, the Quanta Mesh T3048-LY8 - with its very high port density and high performance as well as ultra-low latency characteristic - is ideal for demanding workloads and provides optimal TCO.
Automation
With the rapid adoption of cloud computing and the proliferation of big data and parallel calculations, the need for datacenter network devices is growing exponentially, making netowrk automation a critical factor. Supporting auto installation, Quanta Mesh T3048-LY8 facilities the easy deployment and build-up of mass datacenter IaaS.
Virtualization
Network virtualization is becoming an important topic of datacenters. Quanta Mesh T3048-LY8 offers a hardware-based VXLAN feature to support virtual machine mobility. Not limited by 4K VLANs, VXLAN enables network scale out across L3 subnets and can support up to 16.7M possible virtual networks.
High Availability
The Quanta Mesh T3048-LY8 is designed for high availability from both hardware and software perspectives. The key features include:
- 1+1 hot-swappable power supplies
- 2+1 hot-swappable fans
- Up to 48 paths ECMP routing for load balancing and redundancy
- Multi-chassis Link Aggregation
| Manageable | Yes |
| Country of Origin | China |
| Layer Supported | 4 |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | SFP+ |
| QSFP+ | |
| Number of Total Expansion Slots | 54 |
| Number of SFP+ Slots | 48 |
| Shared SFP Slot | No |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | 1LY8BZZ0STI |
| Manufacturer Website Address | http://www.quantatw.com |
| Manufacturer | Quanta Computer, lnc |
| Product Model | T3048-LY8 |
| Product Name | QuantaMesh T3048-LY8 Layer 3 Switch |
| Product Line | QuantaMesh |
| Brand Name | QCT |
| Modular | Yes |
| Uplink Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 6 x 40 Gigabit Ethernet Expansion Slot |
| 48 x 10 Gigabit Ethernet Expansion Slot |
| Network Technology | 10GBase-X |
| 40GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 40 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 20.13 lb |
| Form Factor | Rack-mountable |
| Rail-mountable | |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 20" |
| Compatible Rack Unit | 1U |
