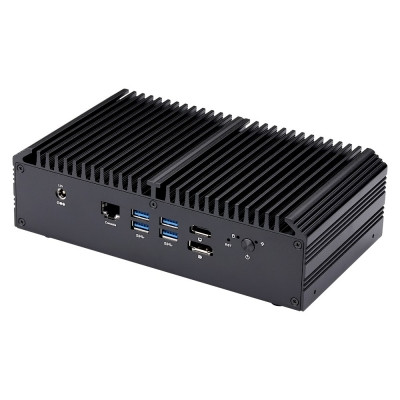

The Qotom Mini PC Q1000GEX S10 is a powerful and compact computer that is perfect for a variety of uses, including home entertainment, office work, and gaming. It is powered by an Intel Celeron Processor 4305U, which provides plenty of power for everyday tasks. The Q1000GEX S10 also has 8 Gigabit Intel Network Cards, HDMI, DDR4 Memory, 1 RJ45 Serial Port, 4 USB, and Power On, making it a versatile and capable computer.
- Powerful and compact computer
- Intel Celeron Processor 4305U
- 8 Gigabit Intel Network Cards
- HDMI
- DDR4 Memory
- 1 RJ45 Serial Port
- 4 USB
- Power On
| Description | |
| CPU | Intel Celeron Whiskey Lake SOC Processor, Default 4305U Dual core 2M Cache, 2.2 GHz, 15W |
| Memory | Single Channel DDR4 2133/2400MHz SDRAM, Max Support to 16G |
| Chipset | By CPU |
| Display | Intel UHD |
| 1 x HDMI, 1 x DP | |
| Ethernet | 8 x Intel 2.5 Gigabit LAN |
| 1 x M.2 2230 for Wi-Fi Module | |
| 1 x Mini PCIE Full-length for 3G/4G Module | |
| Audio | N/A |
| Storage | 1 x mSATA for SSD，1 x SATA 3.0 |
| USB | 4 x USB 3.0 |
| Console | 1 |
| WatchDog | Yes |
| GPIO | Yes |
| RS-485 | 0~2 |
| Power On | Yes |
| Front I/O | |
| Power Button | 1 |
| Reset Button | 1 |
| LED | 1 x Power LED, 1 x HDD LED |
| DC-IN | 12V3A，5.5mm，2.5mm |
| Console | 1 |
| USB | 4 x USB 3.0 |
| Display | 1 x HDMI, 1 x DP |
| Rear I/O | |
| Ethernet COM | 8 x Intel 2.5 Gigabit LAN 5 x RS232 (COM2 and COM3 can be set up as RS485) |
| Other | |
| Material | Aluminum |
| Dimension | 217 x 122 x 62mm |
| Weight | 2.5kg |
| Packaging Dimension | 285 x 260 x 93mm |
| Kensington Lock | None |
| Cooling Mode | Fanless, passtive cooling |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | Windows10，Linux |
| Environmental | |
| Operting Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x MiniPc，1 x Power supply，1 x Power cord，1 x VESA |
