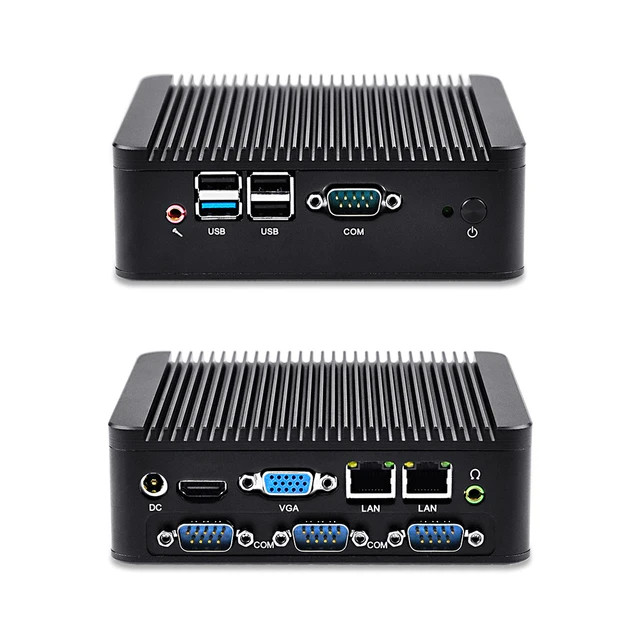

The Qotom Mini PC Q190P S02 is a powerful and compact computer that is perfect for a variety of applications. It is powered by an Intel Celeron J1900 processor and features dual Gigabit Ethernet ports, HDMI and VGA ports, and four USB ports. The Q190P S02 also has four serial ports, making it ideal for industrial applications.
Here are some of the benefits of using the Qotom Mini PC Q190P S02:
- Powerful performance: The Q190P S02 is powered by an Intel Celeron J1900 processor, which provides plenty of power for everyday tasks.
- Compact design: The Q190P S02 is only 117mm x 110mm x 35mm, making it easy to fit into tight spaces.
- Multiple I/O ports: The Q190P S02 has dual Gigabit Ethernet ports, HDMI and VGA ports, and four USB ports.
- Industrial-grade reliability: The Q190P S02 is designed to withstand harsh environments, making it ideal for industrial applications.
| Description | |
| CPU | Intel Celeron Bay Trail SOC Processor, J1900 Quad core 2M Cache, 2.0 GHz Up to 2.42GHz, 10W |
| Memory | Single Channel DDR3L 1333/1600MHz SDRAM, Max Support to 8G |
| Chipset | By CPU |
| Display | Intel HD Graphics |
| 1 x HDMI, 1 x VGA | |
| Ethernet | 2 x Realtek 8111E Gigabit LAN |
| 1 x Mini PCIE, Half-length for WiFi Module | |
| Audio | Realtek ALC662 HD Audio |
| Storage | 1 x mSATA，1 x SATA 3.0 |
| USB | 1 x USB 3.0，3 x USB 2.0 |
| Serial | 4 x RS-232 |
| WatchDog | N/A |
| GPIO | N/A |
| RS-485 | 0 |
| Power On | BIOS Option |
| Front I/O | |
| Power Button | 1 |
| LED | 1 x Power LED |
| Serial Port | 1 x RS-232 |
| USB | 1 x USB 3.0，3 x USB 2.0 |
| Audio | 1 x Mic-in |
| Rear I/O | |
| DC-IN | 12V3A，5.5mm，2.5mm |
| Display | 1 x HDMI, 1 x VGA |
| Ethernet | 2 x Realtek 8111E Gigabit LAN |
| Serial | 3 x RS232 |
| Audio | 1 x Line-out |
| Other | |
| Material | Aluminum |
| Dimension | 135 x 128 x 46mm |
| Weight | 0.75kg |
| Packaging Dimension | 260 x 220 x 75mm |
| Kensington Lock | Yes |
| Cooling Mode | Fanless, passtive cooling |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | Windows 7，Windows 8，Windows10，Linux |
| Environmental | |
| Operting Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Packlist | |
| PackList | 1 x MiniPc，1 x Power supply，1 x Power cable，1 x VESA |
