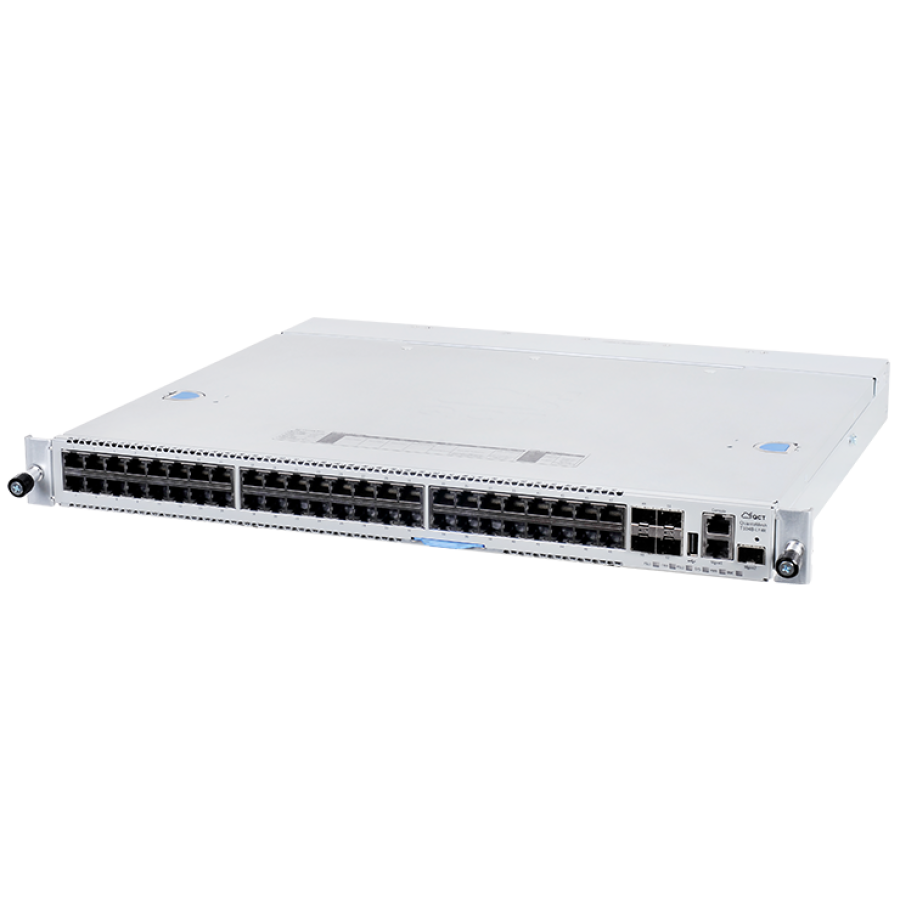

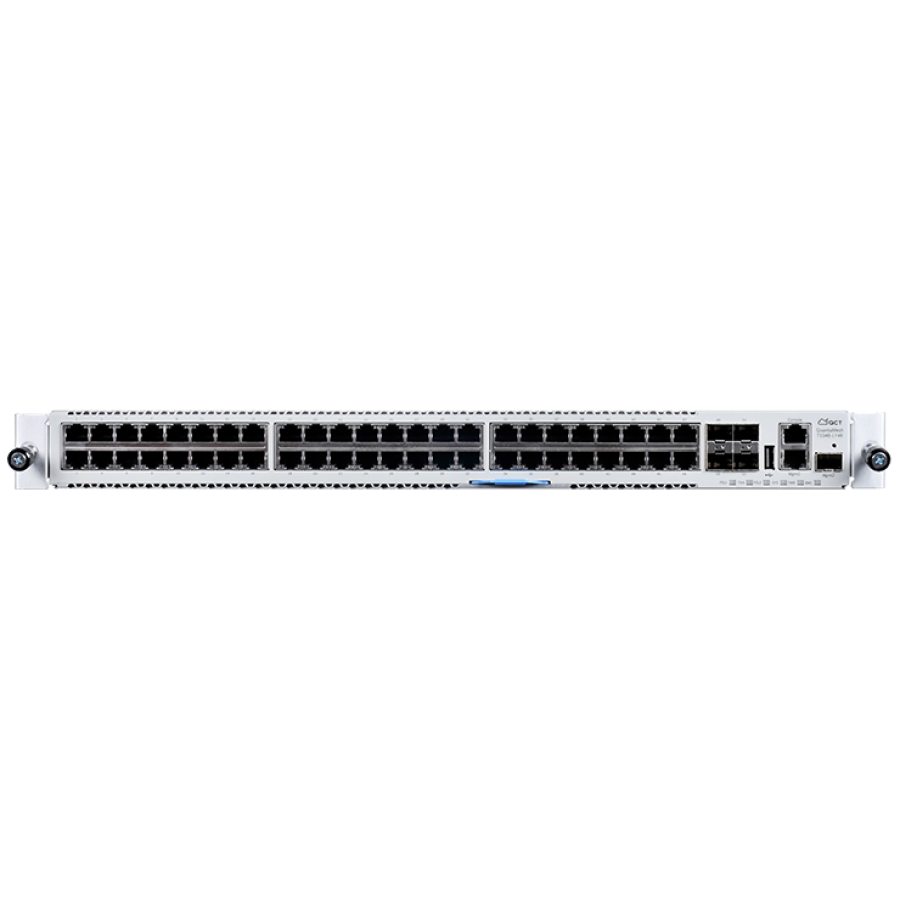

Quanta 1G/10G Enterprise-Class Ethernet Switch - T1048-LY4
The Quanta Mesh T1048-LY4 family is the new generation of layer 2 and layer 4 Ethernet standalone switches that provide the following configuration:
- 48 10/100/1000Base-T downlink plus 2 1/10GBase-X SFP+ uplink ports
- 48 10/100/1000Base-T downlink plus 4 1000Base-X SFP uplink ports
The Quanta Mesh T1048-LY4 is ideal for branch office access network design. It integrates advanced management and security functions for contemporary datacenter requirements
Extensive Layer 2
Equipped with full Layer 2 features like Spanning Tree, Link Aggregation Control Protocol (LACP), IGMP Snooping and Port Mirroring, the Quanta Mesh T1048-LY4 provides loop-free environment, flexible throughput adjusting, best control of multicast traffic and network monitoring. Supported with 802.1Q up to 4094 active VLANs in the Quanta Mesh T1048-LY4, it secures broadcast domain as well as resource access in between each VLAN.
Enhanced Security
The port security of the Quanta Mesh T1048-LY4 restricts switch access with the proper MAC address. The Layer-2, -3, and -4 access control list feature provides advanced traffic filtering based on the source and destination MAC addresses, IP addresses, or TCP/UDP ports. 802.1x Port-Based and MAC-Based access control makes sure only authorized user before granted access. The storm control for unknown unicast, unknown multicast and broadcast packets render the network unable to transport normal traffic.
QoS, Bandwidth Control
The QoS technique specifies a priority tag for QoS disciplines to different traffic. When a switch receives the fame, it prioritizes the stream, puts into the proper queues, and forwards the packets. The QuantaMesh T1048-LY4 supports 802.1p, DSCP, IP Precedence and TCP/UDP port number, and gives the optimal performance for real-time applications like voice and video. The 802.1Q QoS assignment can automatically inserts a tag and processes the best effort performance for the streaming
Datacenter Application
The Quanta Mesh T1048-LY4 is a high port density unit that is useful as a management device in datacenter server rack. The Quanta Mesh T1048-LY4 can support front to back or back to front airflow for different datacenter requirements. Also, the LY4 can support AC and DC power.
Key Features
- OOB Management Switch
- Datacenter airflow support
- AC/DC support
