Key Features:

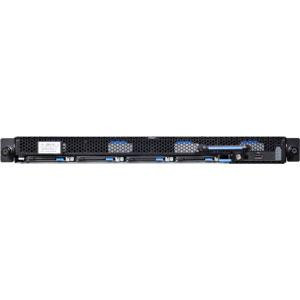

The Ultimate Scale-Out Building Block for Software-Define-Storage
- Ultra-Dense 1U storage server optimized for tiering hot and cold data
- Efficient computing power with dual Intel ® Xeon® Scalable Processors.
- Flexible I/O expansion slots
- Patented inner cable chain & hot-swappable HDD carriers for enterprise-level serviceability.
Description
The Ultimate Scale-Out Building Block for Software-Define-Storage
Processor
| CPU Quantity | 2 |
| CPU Socket | Dual Socket P (LGA 3647) |
| CPU Manufacturer | Intel |
| CPU Supported | Intel® Xeon® Processor Scalable Family |
| Cores | Up to 28 Cores |
Memory
| Memory Capacity | Up to 768GB RDIMM Up to 768GB LRDIMM Up to 3TB (512G*4 DCPMM + 128G*8 RDIMM/LRDIMM) |
| Memory Type | 2666 MHz DDR4 RDIMM 2933Mhz DDR4 RDIMM/LRDIMM Up to (4) 2666Mhz Intel® Optane&trade DC Persistent Memory (DCPMM) |
| Memory Voltage | DDR4-2666/PC4-21300 |
| Memory Slots | 12 |
On-board
| Chipset | Intel® C621 Intel® C624 |
| SATA | SATA3 (6Gbps) RAID 0 1 5 10 |
| IPMI | IPMI v2.0 Compliant on board "KVM over IP" support |
| Graphics | ASPEED AST2500 8MB DDR4 video memory |
Expansion Slots
| Default | 1 PCIe Gen3 x16 SAS mezz slot 1 PCIe Gen3 x16 OCP mezz slot 1 PCIe Gen3 x16 LP MD-2 |
Storage
| Default | 12 3.5"/2.5&rdquo HDD + 4 2.5" SSD |
| Optional | 2 PCIe M.2 support with M.2 adapter for boot disk |
Input/Output
| Front IO | 1 USB 2.0 port |
| Rear IO | 1 VGA port 1 Micro-USB port (Serial signal) 1 Gbe RJ45 management port 1 USB 3.0 ports 1 MicroSD slot |
| TPM | TPM 1.2/2.0 SPI module |
Cooling
| Fans | 2 System fan module assemblies |
Power
| Power Supply | 1+1 Redundant 700 W |
| Certification | 80 Plus Platinum |
Dimensions
| Form Factor | Rackmount |
| Rack Height | 1U |
| Height | 1.7" (43mm) |
| Width | 17.6" (447mm) |
| Depth | 34.7" (881mm) |
| Weight (Max. Configuration) | 66 lbs (30 kg) |
