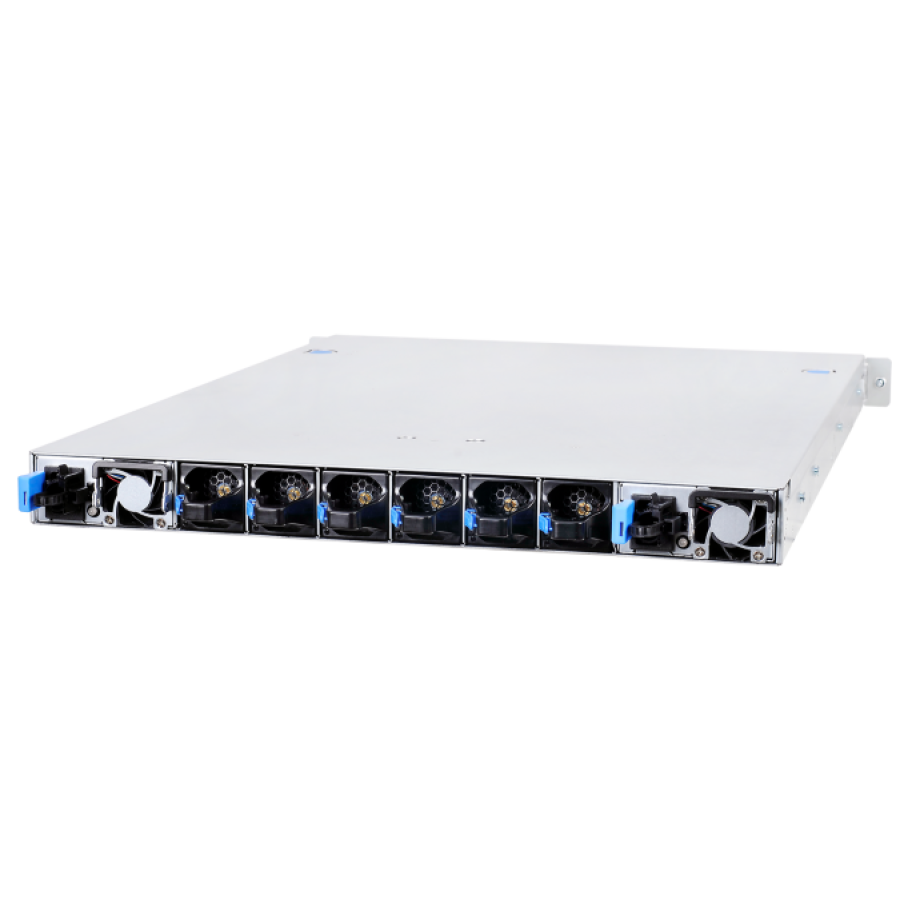

Quanta The 400G switch for Hyper Scale Data Center - BMS T9032-IX9
The next generation of network, 5G, is driven by growing number of network devices. With increasing bandwidth demands from emerging 5G, T9032-IX9 is designed to address hyper-scale cloud environments.
- ONIE Pre-loaded - Bare Metal Switch
- x86 CPU Board
- BMC Built-in
- SONiC Ready
QuantaMesh T9032-IX9 is the first 400G capable switch in the QuantaMesh BMS product line. T9032-IX9 is a 32 port QSFPDD switch, each port supports 400/200/100GbE or via breakout cables 4 x 100 GbE or 4 x 25 GbE. That's a total of 128 x 100G QSFP28+ ports.
It is equipped with BMC in a 1RU form factor with an overall throughput of 25.6Tbps.
T9032-IX9 offers a throughput of 25.6Tbps, 700ns low latency at high power efficiency, and a 64MB large packet buffer, allowing heavily loaded network to be absorbed. By levering merchant silicon chip, T9032-IX9 is allowed to perform high-speed, low- latency with advanced features such as smart table, dynamic load balancing, and VxLAN/RIOT support.
High Availability
- 1+1 hot-swappable power supplies
- 5+1 redundant, hot swappable fan modules
- Color coded fan module to indicate airflow direction
- ONIE pre-loaded to support open source
