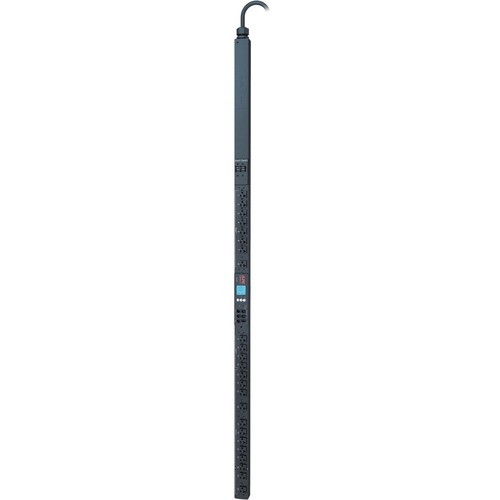

APC by Schneider Electric Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R - Switched - NEMA L5-30P - 24 x NEMA 5-20R - 120 V AC - 2880 W - 0U - Horizontal/Vertical - Rack-mountable - Tower 0U 24X5-20R 2G
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
- Vertical Mounting Capabilities - Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
| Management |
|
| Limited Warranty | 2 Year |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| RoHS |
| Weight (Approximate) | 17.27 lb |
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft |
| Height | 70.5" |
| Width | 2.2" |
| Depth | 1.8" |
| Number of Cord/Cable | 1 |
| Mounting Orientation | Horizontal/Vertical |
| Product Color | Black |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Switched |
| Receptacle Detail | 24 x NEMA 5-20R |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| Input Current | 30 A |
| Power Rating (VA) | 2880 VA |
| Product Type | PDU |
| Manufacturer Part Number | AP8932 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R |
| Brand Name | APC by Schneider Electric |
