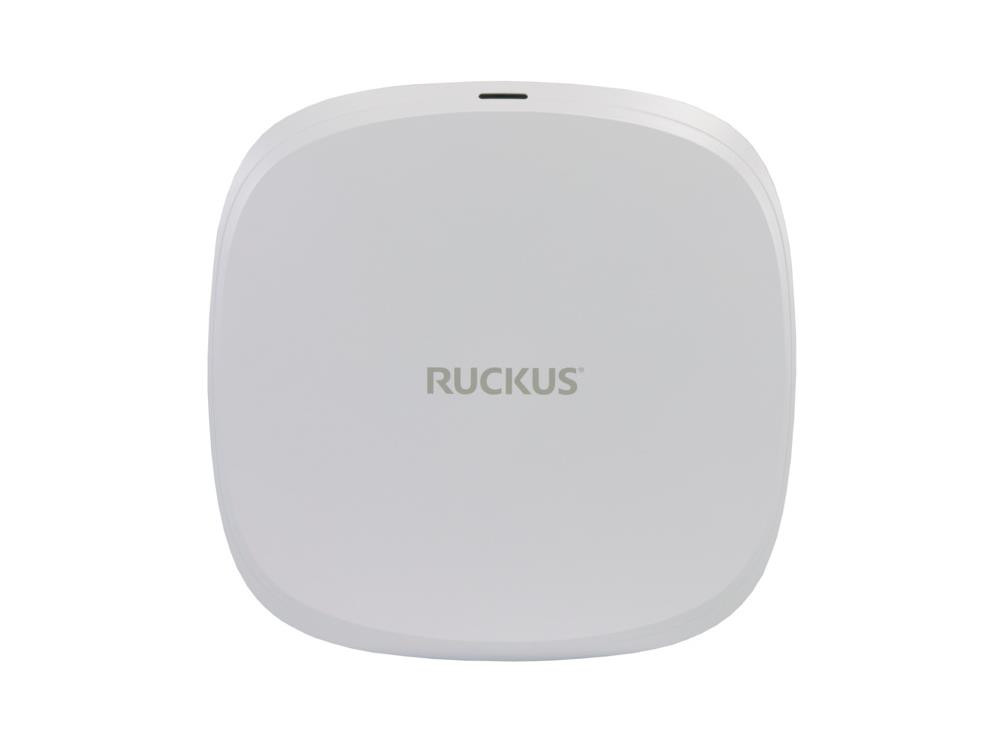

RUCKUS Unleashed R770 Wi-Fi 7 tri-band concurrent wireless Access Point with 2x2 (2.4GHz) + 4x4 (5GHz) + 2x2 (6GHz) RF configurations. Wi-Fi 7 support in all three frequency bands. BeamFlex+ , one 10-Gigabit Ethernet 802.3bt PoE, one Gigabit auxiliary port, optional 48VDC power supply, TPM 2.0, Secure Boot, and DPSK3. Includes adjustable acoustic drop ceiling bracket. Does not include power adapter or PoE injector. Includes Limited Lifetime Warranty
Wi-Fi 7’s extreme speed, low latency and increased capacity delivers exceptional user experiences and empowers an entirely new class of advanced connected devices and demanding applications. Need a way for wireless devices to support 8K video streams, extended reality (XR) video conferencing, massive social gaming, and more? Wi-Fi 7 is the answer and RUCKUS® brings it to life with the R770 as the first enterprise-class AP supporting Wi-Fi 7 to hit the market.
Superior Throughput and Capacity
- RUCKUS BeamFlex+ on all three bands dramatically improves throughput and range.
- 4K QAM and 320 MHz wide channels take full advantage of the 6 GHz spectrum and deliver unprecedented throughput
- 10 Gbps Ethernet port eliminates backhaul bottleneck
- AI Driven Radio Resources Management simplifies support and enhances network performance
- Automated Frequency Coordination (AFC) boosts signal strength and range by enabling the use of Standard Power (SP) mode at 6 GHz
Adaptive Resilience
- Multi Link Operation (MLO) improves reliability by transmitting data across multiple links to prevent interruptions.
- Better Wi-Fi resiliency through AI driven automated incident classification and recommended remediation steps
Reduced Latency
- RUCKUS Wi-Fi 7 enhancements including smart QoS mirroring deliver the deterministic latency applications need
- Wi-Fi 7 new set of QoS features to improve user experience in various scenarios.
Advanced Security Simplified
- RUCKUS exclusive DPSK3 adds the power of DPSK to WPA3 combining advanced security with the flexibility and ease of use of dynamic passphrase to secure network access.
- Secure boot and TPM 2.0 offers hardware-level protection against malware and sophisticated cyberattacks
Built-in Modern IoT Stack
- Built-in IoT radio for BLE & Zigbee supportâ¯and USB port for additional expandability
- Broad Pre-integrated IoT solutions/ecosystems
- Matter and Thread ready
