Exos AP Series — Compute & Storage

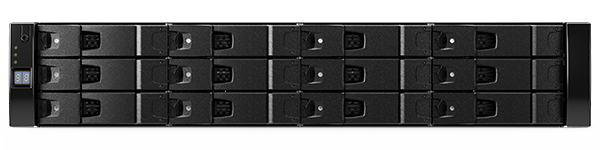

Powerful and compact, the Seagate® Exos® AP 2U12 all-in-one, expandable, low-cost storage solution supports growing businesses with high-capacity and high-availability options.
Best-Fit Applications
- Small to mid-sized businesses
- Scalable capacity
- Immediate data access
Key Advantages:
Save space and maximize capacity with up to 12 drives that can hold 192TB per chassis in a 2U rackmount enclosure
Dual ×86 controllers with flexible performance options that fit your software requirements and budget, including high availability
Deliver data fast with 7Gb/s reads and 5.5Gb/s writes
Future-proofed to support network infrastructures with 10GbE, 25GbE, and 100GbE I/O options
Expandable with up to 8 total EBOD chassis to grow with your business
Dual 12Gb/s SAS controllers are compliant with latest architecture standards for maximum data throughput
Ensure data is constantly available with hot-swappable controllers, PSUs, system fan modules, drives, and expander cards
Modular solution is easily serviceable and allows for interchangeability with other Exos products
Specifications:
| Exos AP 2U12 Specifications | |
|---|---|
| Controller Specifications | |
| Controller and Quantity | One or two AP-LS-1 controllers, redundancy optional |
| CPU Type and Quantity Per Controller | One Intel® Xeon® E5 processors v4 family up to 85W TDP |
| Memory Type and Quantity Per Controller | up to 4 standard-height DDR4-2400 dimm slots |
| Internal Boot Drive Per Controller | Two M.2 SATA devices |
| Onboard I/O | Two 10GbE RJ45 ports (Intel X540); two 1GbE RJ45 ports (Intel i350-AM4); one 1GbE RJ45 port (management from BMC) |
| PCIE Expansion | One low-profile, half-length PCIe gen 3 ×16 slot; one Seagate AP-LS-1 custom form-factor PCIe gen 3 × 16 slot |
| Storage Infrastructure | One 12Gb/s SAS controller with optional turbo mode adding second SAS controller |
| Host/Expansion I/O Ports | Two ×4 mini-SAS HD 12G expansion I/O connectors |
| Inter-Controller Link | ×16 PCIe |
| Chassis Specifications | |
| Redundant Path | Yes (SAS only) |
| Management/Status Reporting | Out-of-band CLI via management port and in-band SCSI enclosure services |
| Device Support | 12Gb/s SAS drives and 6Gb/s SATA drives |
| Max Drives Per Enclsoure | up to 12 × 3.5-in LFF or 2.5-in SFF drives (in 3.5-in conversion carrier) (for a full list of supported drives, please contact your account or sales manager) |
| Hot-Swappable Components | HDDs and SSDs (in chassis data slots), power supply and cooling modules units (PCU), and controllers |
| Physical | Height: 87.9mm / 3.46 in Width: 443mm / 17.44 in Depth: 630mm / 24.8 in Width (w/ear mounts): 483mm / 19.01 in Weight: 17kg / 38 lb | Weight (with drives): 32kg / 71 lb |
| Power Requirements — AC Input | |
| Input Power Requirements | 100V-240V AC 60Hz/50Hz |
| Max Power Output per PSU | 764W |
| Environmental/Temperature Ranges | |
| Operating/Nonoperating Temperature | ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C/300m above 900m, 20°C/hr max rate of change / –40°C to 70°C (–40°F to 158°F) |
| Operating/Nonoperating Humidity | –12°C DP minimum, 8% RH to 85% RH, max DP 21°C / 5% to 100% noncondensing |
| Operating/Nonoperating Shock | 5 Gs, 10ms, half sine pulses / 15 Gs, 10ms, half sine pulses |
| Operating/Nonoperating Vibration | 0.21 Gs rms, 5Hz to 500Hz random / 1.04 Gs rms, 2Hz to 200Hz random |
| Standards/Approvals | |
| Safety Certifications | UL 60950-1/UL62368-1 ED2 (United States) | CAN/CSA-C22.2 No.60950-1-07/No.62368-1-14, 2nd Ed (Canada) | EN 60950- 1/EN62368-1 (European Union) | IEC 60950-1/IEC 62368-1 Ed2 (International) | CCC (China PRC – CCC Power Supplies) | BIS (India – BIS Power Supplies) |
| Ecodesign | Commission Regulation (EU) 2019/424 (Directive 2009/125/EC) |
| Emissions (EMC) | FCC CFR 47 Part 15 Subpart B Class A (United States) | ICES/NMB-003 Class A (Canada) | EN 55032 Class A | AS/NZS CISPR 32 Class A (Australia/New Zealand) | VCCI Class A (Japan) | KN 32 Class A | CNS 13438 Class A (Taiwan) |
| Harmonics | EN 61000-3-2 (EU) |
| Flicker | EN 61000-3-3 (EU) |
| Immunity | EN 55024 (EU) | KN 24/KN 35 (S. Korea) | CISPR 24/CISPR35 |
| Environmental Standards | The RoHS Directive (2011/65/EU) | The WEEE Directive (2012/19/EU) | The REACH Directive (EC/1907/2006) | The Batteries Directive (2006/66/EC) |
| Standard Marks/Approvals | United States (FCC/UL) |
