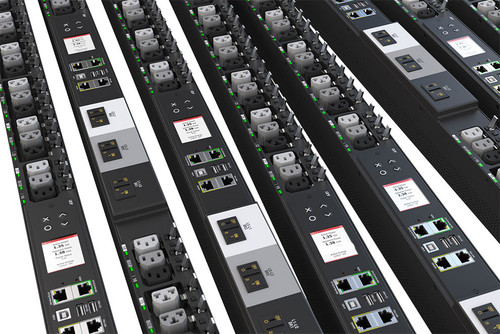

The Server Technology® Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Switched "Primary" PDU can be connected to a Switched "Link" PDU to extend the network access to the redundant or secondary power feed.
- NETWORK MONITORING: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
- HOT-SWAP NETWORK CARD: Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit.
- STAR MULTI-LINKING: Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
- TEMPERATURE/HUMIDITY MONITORING: Primary and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
- AUTO-FLIP CURRENT DISPLAY: Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
- BRANCH CIRCUIT PROTECTION: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
- OUTLET CONTROL: On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
- HIGH RETENTION LOCKING OUTLETS: Receptacles have high retention and are compatible with P-Lock type power cords.
- FLEXIBLE MOUNTING: Includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).
