• Powered by Intel N100 processor (12th Gen, Alder Lake-N)
• Dual display support: 1× HDMI 2.0b, 1× DisplayPort 1.4
• Gigabit Ethernet, Wi-Fi-ready (M.2 slot with antennas pre-installed)

• 4× USB 3.2 Gen 2 (10 Gbps), 2× USB 2.0
• Supports up to 16 GB DDR4 SO-DIMM
• 1× M.2-2280 (NVMe/SATA), 1× M.2-2230 for Wi-Fi
• Includes wall/VESA mounting bracket

Specifications

• Fanless and silent
  Completely fanless Heat-pipe cooling system, virtually noiseless
  Passive cooling through convective heat transfer
  Perfect to be used in noise-sensitive environments
  Fanless means less dust and thus virtually no maintenance required
• 24/7 Nonstop Operation
  This device is approved for 24/7 permanent operation.
  Requirements:
  - Free air circulation around the PC must be guaranteed.
  - Ventilation holes must be kept clear.
• Chassis
  Slim PC with black chassis made of plastic
  Dimensions: 135 x 115 x 39 mm (WLH) = 0.6-litre
  Height including rubber feet: 41.3 mm
  Weight: 0.6 kg net and 1.5 kg gross
  One hole for Kensington Locks (right-hand side)
  VESA mount included (supports 75x75 mm and 100x100 mm Standard)
• Operation System
  This system comes without operating system.
  It is compatible with Windows 11 (64-bit)
  Windows 11 driver download: go.shuttle.eu/NE10N
• Processor
  Model: Intel® Processor N100
  Max. Turbo clock frequency: 3.4 GHz
  Code name: "Alder Lake-N"
  10 nm structure, FCBGA1338 package (soldered)
  CPU cores / Threads: 4 / 4
  L2 Cache: 6 MB
  Thermal Design Power (TDP): 6 W
  System-on-Chip processor (SoC) with integrated graphics processor, no chipset required
  Passive processor cooling without fan
• Integrated Graphics
  The Graphics Processing Unit (GPU) is integrated in the processor
  Intel® UHD Graphics, GPU frequency: max. 750 MHz
  Supports DirectX 12.1, OpenGL 4.6, OpenCL 3.0, Intel Quick Sync Video
  Execution Units (EU): 24
  Dual Display Support via two video outputs:
  - HDMI 2.0: max. 4096 x 2160 @ 60 Hz
  - DisplayPort 1.4: max. 4096 x 2160 @ 60 Hz
  Supports two digital UHD/4K displays simultaneously.
• UEFI Firmware
  32 MB Flash ROM
  AMI UEFI BIOS Firmware
  Based on the Unified Extensible Firmware Interface (UEFI)
  Supports Power-fail-resume / AC power-on state / always-on
  Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
  Supports boot up from external flash memory cards
  CMOS battery (type CR2032 with connecting cable)
• Hardware TPM Chip
  Supports DTPM 2.0 with Infineon SLB9670VQ2.0 (can be deactivated)
• Memory Support
  1x SO-DIMM slots with 260 pins
  Supports DDR4-3200 (PC4-25600U) SDRAM at 1.2V
  Supports one RAM module with max. 16 GB capacity
  Supports two unbuffered DIMM modules (no ECC)
• M.2 expansion slot for SSD card
  M.2-2280 M-key slot
  Interfaces: PCI-Express Gen. 3.0 and SATA
  Supports M.2 SSD cards with a width of 22 mm and a length of 80 mm (type 2280)
  Supports SATA SSDs (BM-Key) or NVMe PCIe SSDs (M-Key)
• M.2-2230E slot for WLAN cards
  Interface: PCI-Express and USB 2.0
  Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
  The slot is located underneath the SSD card.
  This PC comes with two pre-installed internal WLAN antennas with I-PEX4/MHF-IV connectors.
  Use a standard WLAN module, e.g. Realtek AW-XB547NF or Intel AX200/210/211 (not included).
• Integrated Audio
  Senary SN6140-CNZR audio controller
  Two analog audio connectors (3.5 mm):
  1) Line out (head-phones)
  2) Microphone input
  Digital multi-channel audio output: via HDMI and DisplayPort
• Gigabit LAN
  One RJ45 connector supports lokal network at 10/100/1000 Mbps.
  Motorcomm YT6801 Ethernet LAN controller
  Supports Wake-on-LAN

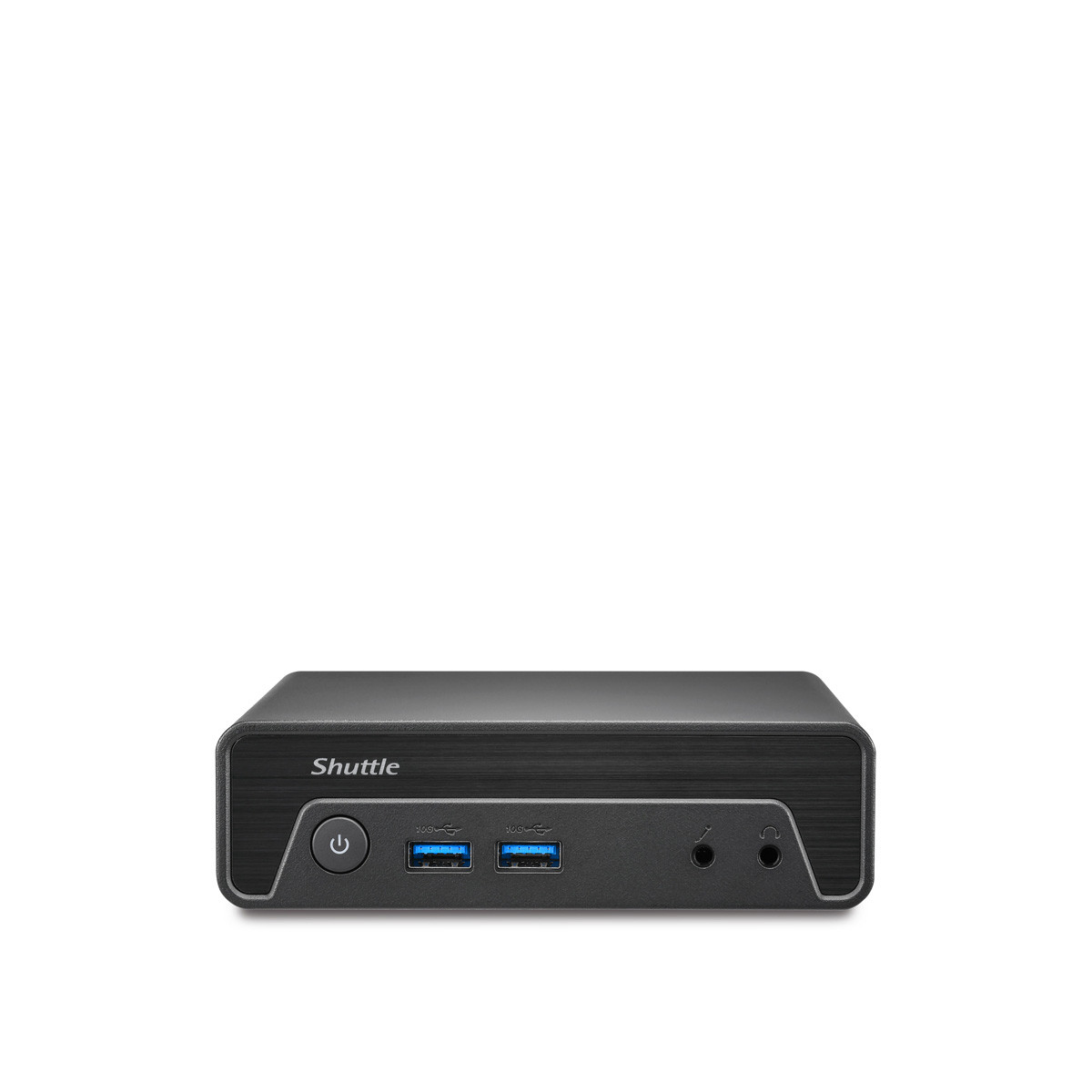

• Front Panel Connectors
  Power button
  Power LED (blue = power-on, orange = S3 mode)
  2x USB 3.2 Gen 2 Type A (blue, max. 10 Gbps)
  Audio Line-Out (headphones) 3.5 mm
  Microphone Input 3.5 mm

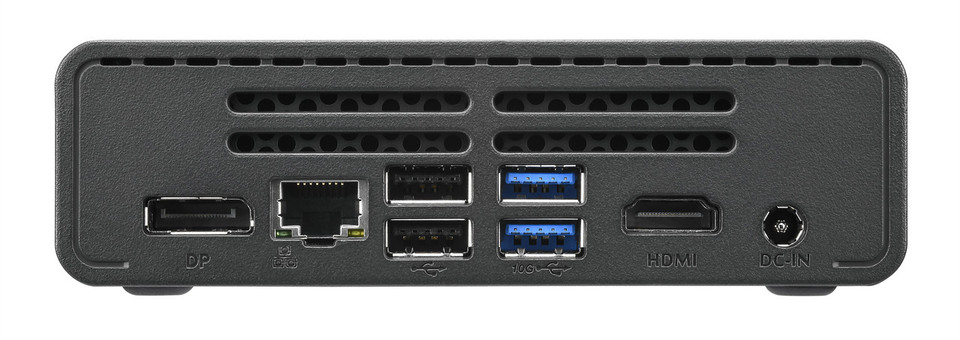

• Back Panel Connectors
  HDMI 2.0 Video/Audio
  DisplayPort 1.4 Video/Audio
  2x USB 3.2 Gen 2 Type A (blue, max. 10 Gbps)
  2x USB 2.0 (black)
  1x Gigabit Ethernet LAN (1 Gbps, RJ45)
  DC input for the external power adapter (supports 19V)
• Power Supply
  External 65 W AC/DC power adapter (fanless)
  AC Input: 100 ~ 240 V AC, 50 ~ 60 Hz, max. 1.5 A
  Automatic AC voltage adjust
  DC Output: 19 V, max. 3.42 A, max. 65 W
  DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
  AC cable with 3-pin Micky MM C6 and Schuko earthed safety plug
• Supplied Accessories
  Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
  VESA mount for 75 / 100 mm standard (black)
  Two flat-head screws, M3 x 3.5 mm with offset (connects VESA mount to PC)
  Four screws M4 x 6 mm (to affix VESA mount on the PC)
  External 65 W power adapter with power cord (with protective-earth contacts)
  A DVD driver disk is not supplied.
  Windows 11 driver download: go.shuttle.eu/NE10N
• Environmental Specifications
  Operating temperature range: 0 ~ 40 °C
  Relative humidity range: 10 ~ 90 % (non-condensing)
• Certification and Compliance
  EMI: CE, UKCA, FCC, RCM, VCCI, BSMI
  Safety: CB IEC 60950-1/62368-1, cTUVus (UL 62368-1), BSMI
  Other: RoHS, Energy Star, ErP
  This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
  (1) 2004/108/EC relating to electromagnetic compatibility (EMC),
  (2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD),
  (3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)
