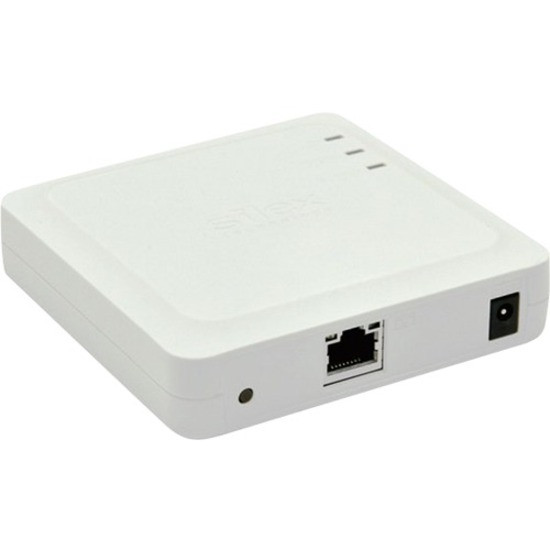

Silex BR-400AN IEEE 802.11n 130 Mbit/s Wireless Access Point - 2.40 GHz, 5 GHz - 1 x Network (RJ-45) - Gigabit Ethernet

The BR-400AN is a mesh network system that allows the user to easily construct a wireless LAN in a place where there is no network. It supports IEEE802.11s mesh network. This 802.11a/b/g/ n mesh WLAN converter automatically establishes a wireless LAN between devices. With this bridge , users can set up wireless LAN environment in offices, health care sites and plants where IoT and ICT are actively involved in transfer of data.

The BR-400AN can transmit data at 130Mbps with just 7ms roundtrip timing. It supports IEEE802.1X authentication to guarantee enterprise-level security in office and business networks. It supports industry leading standards for authentication and encryption including WPA, WPA2, and most commonly used EAP types.

Mesh Technology

BR-400AN supports IEEE802.11s making it easier to construct a mesh network at a low cost compared with the traditional mechanism. The mesh network automatically reconfigures the communication route according to the installation environment. Approx 1 sec of network configuration time, mesh proves effective in transmitting data in factory and office environment.

Network Redundancy & loop detection

BR-400AN supports the RSTP (Rapid Spanning Tree Protocol). AMC Mesh network can suppress loop network, and it enables fast convergence. Automatic recovery time up to 6 sec, when backbone is down.

It also helps in easy area expansion with backup just by placing the bridge where they are needed. It does not require AP but can horizontally expand the area.

Multi-hop Support

Up to 32 units constitutes to make one mesh network group, with the maximum of 5 hops. Data is transmitted farthest by overlapping hops, connecting data with multiple stages and multiple routes.

Mesh Point Mode & Mesh Access Point Mode

Two modes of operation are available in BR-400AN depending on the application environment:

Mesh Point Mode is when a bridge is connected to another bridge. Up to 8 units can be connected.

Mesh Access Point Mode is when a device is connected to a bridge to access. Up to 100 units can be connected.

AMC Manager Support

The BR-400AN wireless bridge is compatible with the optional device management software "AMC Manager®".

With this software, network administrators can execute the functions required for device management of Silex networking products from one point, for example monitor device status, configuration settings, update firmware, automatically record device operating logs and restart the devices.

Mesh Monitor (AMC Manager® plug-in)

Mesh Monitor is AMC Manager® plug-in option to visualize mesh network composed of BR-400AN . This application aids the user with setup and operation management. User can map BR - 400AN and check communication path, connection link status between terminals, radio field strength at a glance.

Enterprise security

BR-400AN supports enterprise-class security which makes it ideal for business networks.

• IEEE 802.1X authentication compliant
• Access point SSID Stealth compatible
• MAC address filtering function
• AES encryption

Features

• When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
• 130 Mbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity
• Ensure speedy data transfer of up to 130 Mbit/s with the IEEE 802.11n wireless technology
• Gigabit Ethernet port for ultra-fast wired network speeds
