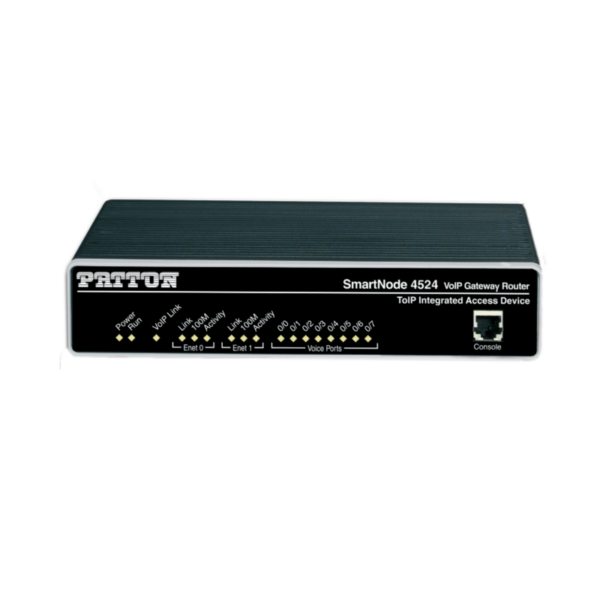

Connect with confidence using the Smart Node 4524 VoIP Gateway Router. Integrating a complete enterprise router with a full-featured Voice-over-IP Media Gateway offers the new standard in toll-bypass, remote/branch office connectivity, and enhanced carrier services. Perfect for the Remote office, Branch office, or PBX/Switch extension, the Smart Node 4524 integrates all your voice, FAX, and LAN traffic for seamless and secure networking. With its FXS analog ports the SN4520 Series supports up to eight simultaneous calls, connects to any legacy telephone or PBX, and provides dial-tone, ringing, and caller-ID. When equipped with FXO ports, the local PSTN can be accessed enabling local calling, enhanced toll-bypass services, and fallback configurations. ClearConnect™ adaptive network monitoring ensures your call always gets connected even if the VoIP link goes down or becomes congested.
Core Features:
- 2 FXS
- 2 FXO
- 2×10/100baseT
- H.323 and SIP
- External UI Power
- Toll-Quality VoIP
- Advanced Local Call Switching
- Complete SIP and T.38 support
- Easy Management & Provisioning
- Outstanding Interoperability
| Weight | 2.85 lbs |
|---|---|
| Dimensions | 15 × 11 × 4 in |
| Brand | Patton |
| Device Ports | FXO, FXS |
| Number of Ports | 2 FXO, 2FXS |
Voice Connectivity:
- 2, 4, 6, or 8 FXS ports
- 2-wire Loopstart, RJ-11/12
- Short haul loop 1.1 KM @3REN
- EuroPOTS (ETSI EG201 188)
- Programmable AC impedence, feeding, and ring voltage; On-Hook Voltage 29VDC
- Caller-ID Type-1/2 FSK and ITU V.23/Bell 202 generation
- 2 or 4 FXO ports
- 2-wire loop-start presented as an RJ-11/12
- 2.5kV line isolation Surge Protection: Voice Ports: Tip & Ring protected by 270 V side actor
- Off-hook and ring detection, Automatic line gain, Programmable ring count
- End of Call detection, Line drop, busy tone, battery reversal detection
- Hook-Flash Sending, H.245 Hook-Flash relay, DTMF send, detect, and relay
- Caller ID FSK CLI reception and relay (Bellcore/ANSI and ETSI/ITU), Call routing based on Caller ID
- Second dial-tone for two-stage DTMF dialing, Call routing based on DTMF numbers
- Data Connectivity
- Dual 10/100 Full Duplex, Autosensing, Ethernet RJ-45
