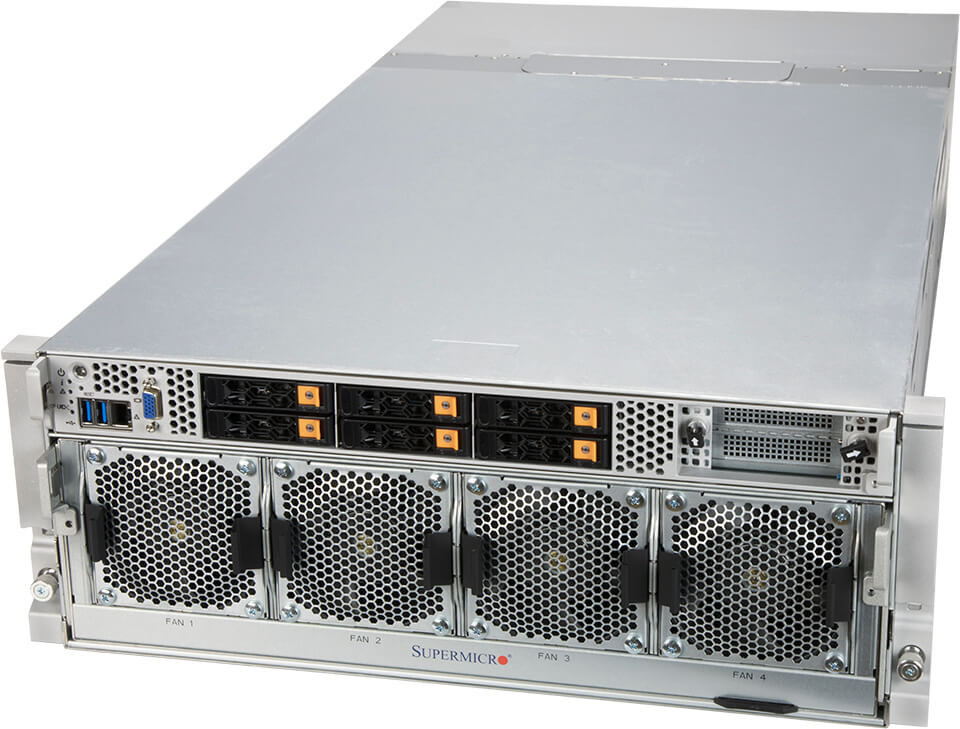

Supermicro 4U Dual Processor (3rd Gen Intel Xeon) GPU System with NVIDIA HGX A100 8-GPU 40GB/80GB, NVLink, NVSwitch, Redundant 3000W Titanium Level Power Supplies - (Complete System Built Required) - SYS-420GP-TNAR+
Key Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 32 DIMM Slots;
Up to 8TB DRAM;
Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
Intel® Optane™ Persistent Memory 200 series - 10 PCI-E Gen 4.0 X16 LP Slots
AIOM/OCP 3.0 Support - Flexible networking options
- 2 M.2 NVMe and SATA for boot drive only

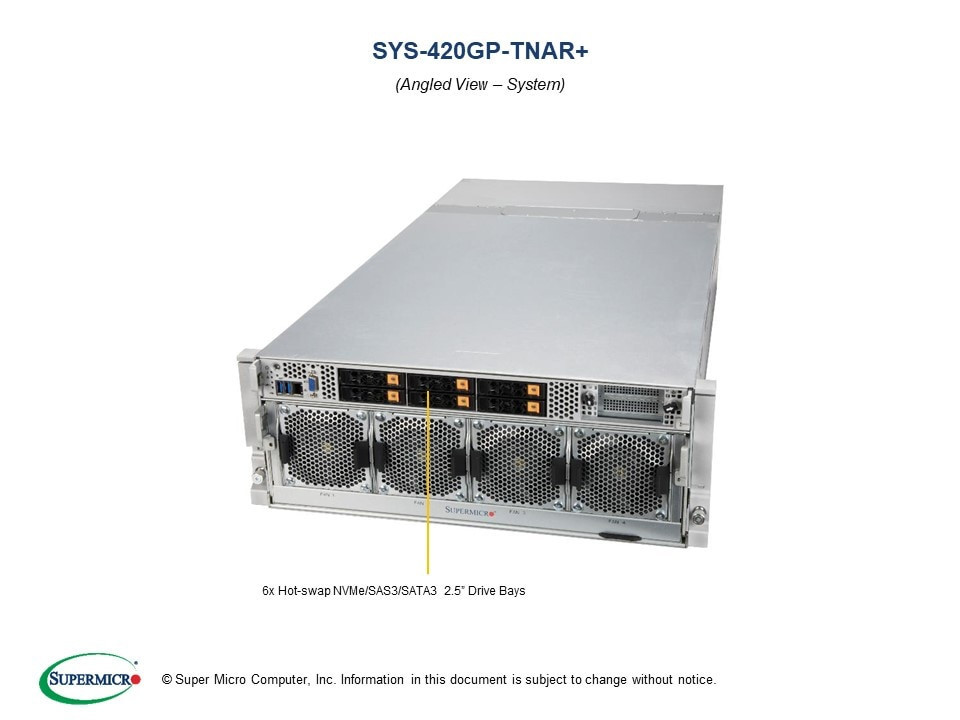

6x 2.5" Hot-swap NVMe/SATA/SAS drive bays - 4 heavy duty fans with optimal fan speed control
- 4x 3000W redundant Titanium level power supplies
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts List - (Items Included) | |||
| |
Part Number |
Qty |
Description |
| Motherboard / Chassis | MBD-X12DGO-6 |
1 |
Super X12DGO-6 Motherboard |
| Add-on Card / Module | AOM-438G-AIOM-P | 1 | AIOM adapter card for CSE-438G,RoHS |
| Add-on Card / Module | AOM-438G-FAN-P | 1 | Fan adaptor for SC1018G,RoHS |
| Add-on Card / Module | AOM-DGO-IO-P | 1 | I/O riser card for 4U 8 SXM4 GPU system 420GP-TEVRT,RoHS |
| Add-on Card / Module | AOM-SXM4-IO-P | 1 | PCIE Gen4 switch board for 4U 8 SXM4 GPU system,RoHS |
| Backplane | BPN-GPU-438G | 1 | Midplane for 4U AMD/Intel Delta GPU system,RoHS |
| Backplane | BPN-NVME4-F418-B6S6 | 1 | 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices. The Backplane is for X12 FatTwin Product Line.,HF,RoHS |
| Cable 1 | CBL-0223L | 4 | BLADE PWS POWER CORD C-19 TO C-20, PBF |
| Cable 2 | CBL-GNZ2-12105F-85 | 1 | GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105. |
| Cable 3 | CBL-GNZ2-1281F-85 | 1 | GENZ 2C x16 (STR),Slimline x8 (STR) to 2x 2x Slimline x4 |
| Cable 4 | CBL-PWEX-1114-30 | 1 | Microfit,2x4, PH3.0 to Microfit,2x4, PH3.0,30CM,9A/pin, |
| Cable 5 | CBL-PWEX-1117-40 | 2 | MiniFit,2x2,PH4.2,F to MiniFit,2x2,PH4.2,F,40CM,8A/pin, |
| Cable 6 | CBL-SAST-1238FLP-85 | 1 | SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,38C |
| Cable 7 | CBL-SAST-1242-100 | 2 | Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,43CM,100 O |
| Cable 8 | CBL-SAST-1258FLP-85 | 1 | SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,58C |
| FAN 1 | FAN-0196L4-1 | 4 | 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fan Board |
| Power Supply | PWS-3K02G-2R | 4 | 2U 3000W, Titanium efficiency for GPU 54V(2430W)+12V(1100W) |
| Riser Card | RSC-G-66G4 | 1 | 1U LHS GPU Riser card with two PCI-E 4.0 x16 slots,RoHS |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | SNK-P0077V | 2 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin |
| *Cable 9 | CBL-OTHR-0794 | 1 | VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS |
Notes:
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Network Card(s) | AOC-MCX516A-CCAT | - | Mellanox MCX516A-CCAT 2-port 100GbE QSFP28 PCIe 3.0 x16 CX-5. HF, RoHS |
| AOC-MCX512A-ACAT | - | Mellanox MCX512A-ACAT PCIe 2-port 25GbE SFP28 Gen3x8 CX-5 EN. RoHS | |
| AOC-653106A-HDAT | - | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card 2-port, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS | |
| AOC-STG-i4S | - | Standard low-profile 4-port SFP+ | |
| AOC-653105A-HDAT | - | Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card 1-port, QSFP56, PCIe 3.0/4.0 x16, RoHS | |
| AOC-STG-I2T | - | Standard low-profile 2-port 10GbE, based on Intel X540 Twinville | |
| AOC-653105A-ECAT | - | Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS. | |
| AOC-S25G-i2S | - | Standard low-profile 2-port 25GbE SFP28, based on Intel XXV710+ Marvell Unionville, RoHS | |
| AOC-623106AN-CDAT | - | ConnectX-6 Dx 100GbE 2-port QSFP56 PCIe 4.0 x16, RoHS | |
| AOC-S25G-M2S | - | Standard low-profile 2-port 25GbE SFP28, based on Mellanox ConnectX-4 LX EN chipset, RoHS | |
| AOC-MCX556A-ECAT | - | MCX556A-ECAT, CX-5 VPI, EDR IB, 100GbE, 2-port, QSFP28, PCIe3 x16 | |
| Network Card(s) AIOM | AOC-A25G-b2SM | - | AIOM 2-port 25GbE SFP28, Broadcom BCM57414,RoHS |
| AOC-ATG-i2SM | - | AIOM 2-port 10GbE SFP+, based on X710-BM2,RoHS | |
| AOC-AG-I4M | - | AIOM 4-port 1GbE RJ45, based on i350-AM4, RoHS | |
| AOC-AG-I2M | - | AIOM 2-port 1GbE RJ45, based on i350-AM2, RoHS | |
| AOC-AH25G-M2S2TM | - | AIOM 2-port 25GbE SFP28 based on Mellanox CX-4 Lx EN, and Dual-Port 10GbeE RJ45 based on Intel X550-AT2, RoHS | |
| AOC-653436A-HDAB | - | Mellanox MCX653436A-HDAB OCP3.0 2-port HDR/200GbE QSFP56 Gen 3/4x6 CX-6 VPI with custom bracket, RoHS | |
| AOC-ATG-I4SM | - | AIOM 4-port 10GbE SFP+, based on Intel XL710-BM1,RoHS | |
| AOC-MCX4621A-ACAB | - | Mellanox MCX4621A-ACAB OCP 3.0, 2-port 25GbE SFP28, Gen3 x8 CX-4 Lx, RoHS. | |
| AOC-ATG-i2T2SM | - | AIOM 4-port 10GbE, 2-port RJ45 & 2-port SFP+, based on Intel X710-TM4, RoHS | |
| AOC-623436AN-CDAB | - | Mellanox MCX623436AN-CDAB OCP 3.0 2-port 100GbE QSFP56 Gen4x16 CX-6, RoHS | |
| AOC-ATG-i2TM | - | AIOM 2-port 10GBase-T, Intel X550,RoHS | |
| Optional NVMe Kit | BPN-NVME4-HS119N-S4R | 1 | 1U 4-slot SFF backplane to suppors four SAS3/SATA3/NVMe4 storage devices |
| MCP-220-00178-0B | 4 | Hot-swap thin-profile, 2.5" tool-less NVMe drive tray w/ orange tab | |
| CBL-SAST-1224LP-85 | 2 | SlimLine LP x8 to SlimLine LP x8, 24-cm cable | |
| CBL-PWEX-1231 | 1 | MicroFit, 2x2 36-cm GPU cable | |
| RAID Controller /Cable | CBL-SAST-0568 • |
2 | Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s |
| AOC-S3108L-H8IR-16DD | 1 | 8 int 12Gb/s ports, 8xGen3, ROC - LP,16 HDD w/ exp | |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Storage | AOC-S3908L-H8iR & 1x CBL-SAST-1262-100 | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP, 240 HDD w/ exp, RoHS |
| Trusted Platform Module Options | AOM-TPM-9670V-S-O | 1 | SPI capable vertical TPM 2.0 provisioned for server,RoHS |
| AOM-TPM-9671V-S-O | 1 | SPI capable vertical TPM 1.2 provisioned for server,RoHS | |
