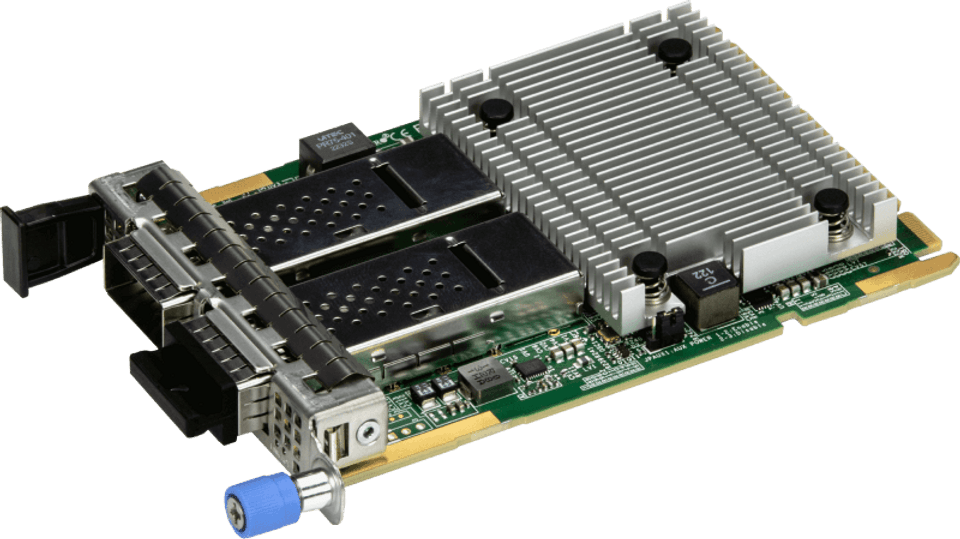

Supermicro Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-A200G-B1CM is using the shared hardware design of AOC-A100G-b2CM by enabling the firmware setup to provide single port 200Gbps output in port1 while the port2 is disabled. Based on the Broadcom® BCM57508 with features such as VXLAN, NVGRE, RoCE, it provides unparalleled density, performance, and functionality. The Supermicro® AOC-A200G-B1CM is the most versatile 200GbE controller in the market and an excellent choice to enhance network connectivity in Data Centers and Enterprise environments.

FEATURES

• Advanced I/O Module (AIOM) Form Factor
• Broadcom® BCM57508 200GbE controller
• Support for 200GbE, 100GbE, 50GbE and 40GbE Speed
• Single QSFP56 Connector
• RDMA over Converged Ethernet (RoCE)
• VXLAN, NVGRE and Geneve
• Broadcom® TruFlow™ flow processing engine
• Asset Management Features with thermal sensor
• NC-SI for Remote Management (not supported by default)

SPECIFICATIONS

• General
• Advanced I/O Module (AIOM) Form Factor
• Broadcom® BCM57508 200GbE controller
• Single QSFP56 Connector
• Networking Features
• Jumbo frames (up to 9.6 KB)
• IEEE 802.3x flow control
• IEEE 802.3ad Link Aggregation
• Virtual LANs- 802.1q VLAN tagging
• Configurable Flow Acceleration
• UEFI and iSCSI boot
• Stateless Offload Features
• TCP, UDP and IP checksum offloads
• IPv4 and IPv6 offloads
• Large Send Offload
• Receive Segment Coalescing
• TCP Segmentation Offload
• Large Receive Offload
• Receive Side Scaling (RSS)
• Transmit Side Scaling (TSS)
• Virtualization Features
• NetQueue, VMQueue, and Multiqueue
• SR-IOV with up to 128 Virtual Functions (VFs)
• VXLAN, NVGRE, and Geneve
• Edge Virtual Bridging (EVB)
• RDM over Converged Ethenet (RoCE)
• RoCEv1 and RoCEv2
• Data Center Bridging with RoCE
• Flow Processing
• Exact/Wildcard Match Flow Lookup
• VLAN insertion/deletion
• NAT/NAPT/Mirroring
• Data Center Bridging
• Priority-based flow control (PFC; IEEE 802.1Qbb)
• Enhanced transmission selection (ETS; IEEE 802.1Qau)
• Quantized Congestion Notification (QCN; IEEE 802.1Qau)
• Data Center Bridging Capability eXchange (DCBX; IEEE 802.1Qaz)
• 8 traffic classes per port; fully DCB compliant per 802.1Qbb
• Power Savings
• ACPI compliant power management
• PCI Express Active State Power Management (ASPM)
• Ultra-low-power mode
• Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)
• Power Consumption
• Maximum 20W
• Storage Conditions
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Storage humidity: 90% non-condensing relative humidity at 35°C
• Physical Dimensions
• Card PCB dimensions: 76mm x 115mm (W x D)
