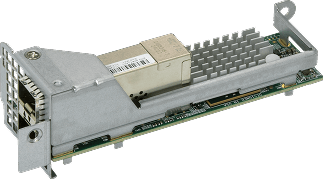

The Supermicro AOC-C25G-I2S 25 Gigabit Ethernet Adapter is one of the most compact and scalable 25G Ethernet adapters for today's demanding data center environments. Based on the latest Intel® network controller E810-XXVAM2, it addresses the demanding needs of the next-generation data center. The AOC-C25G-I2S is designed in a proprietary and small MicroLP form factor to fit Supermicro MicroCloud 8/10-node systems.
FEATURES
- Dual 25GbE SFP28 Connectors, backwards compatible 10GbE
- MicroLP Form Factor
- PCI-E 4.0 x8, backward compatible to PCI-E 3.0 x8
- Intel E810-XXVAM2 Ethernet Controller
- NC-SI for remote management
- RoHS compliant 6/6
SPECIFICATIONS
- General
- Intel E810-XXVAM2 Ethernet Controller
- MicroLP Form Factor
- Dual SFP28 ports
- PCI-E 4.0
- Application Device Queues (ADQ)
- Dynamic Device Personalization (DDP)
- Host Interface
- PCI-E v4.0
- Backward compatible with PCIe v3.0
- Message Signal Interrupt (MSI-X)
- Networking Features
- Jumbo Packet (9K Max)
- Teaming
- Virtual LANs 802.1q VLAN tagging
- Stateless Offload Features
- TCP, UDP, IPv4, IPv6 checksum offload
- Large Send Offload
- Receive Segment Coalescing
- TCP segmentation Offload (TSO)
- UDP Segment Offload (USO)
- Large Segment Offload (LSO)
- Receive Side Scaling (RSS)
- Virtualization Features
- VXLAN
- NVGRE
- Geneve
- SR-IOV
- 768 Virtual Station Interface (VSI)
- 8 Physical Functions (PF)
- Microsoft VM Queue
- VMWare NetQueue
- DPDK Support
- QoS: Priority-based Flow Control (802.1Qbb)
- Enhanced Transmission Selection (802.1Qaz)
- Manageability
- Network Controller Sideband Interface (NC-SI)
- Asset Management with Thermal Sensors
- RDMA over Converged Ethernet (iWARP and RoCE)
- iWARP
- RoCEv2
- Data Center Bridging
- Remote Boot
- UEFI PXE Boot
- Data Center Bridging
- Enhanced transmission – IEEE 802.1Qaz
- Priority based Flow Control – IEEE 802.1Qbbb
- Edge Virtual Bridging - IEEE 802.Qbg
- Power Savings
- ACPI Compliant power management
- Pass through Energy Efficient Ethernet (IEEE802.3az-2010)
- Cables Support
- SFP28 Direct Attach Copper cables
- Fiber-optic cables (with required optional SFP28 transceivers)
- Power Consumption
- Maximum power consumption: 10.5W
- Operating Conditions
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity at 35°C
- Physical Dimensions
- Card PCB dimensions: 113mm (4.46in) x 39mm (1.54in)
- Supported Platforms
- MicroCloud 8/10 node systems
