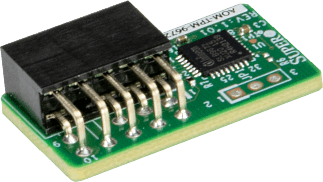

The Supermicro AOM-TPM-9672V series provide solid foundation hardware based for securely establishing the identity and software status which include highest level of protection the confidentiality of data. This is the first Supermicro TPM that offers security solution with a post-quantum cryptography (PQC) with protected firmware update mechanism with a 256-bits key length. This new outstanding Supermicro is designed for improved computing performance. Furthermore, it also extends non-volatile memory to store additional certificates and cryptographic keys. This AOM-TPM-9672V module complies with Trusted Computing Group (TCG), contains FIPs compliant and engineered with TPM firmware recovery.

Features

• TCG 2.0 Compliant Trusted Platform module (TPM)
• Compliant to TPM Family 2.0
• SPI Interface
• FIPs 140-2 level 2
• Supported Intel TXT and Microsoft Certification
• 24 PCRs with established Hash-based signatures SHA-1, SHA-256 and SHA-384
• Protection against Dictionary Attack
• Random Number Generator (RNG)
• Built-in support by Linux Kernel
• 51 kByte NV memory with unlimited amount of NV counters.
• Support RSA key generation (1024, 2048, 3072 and 4096 bit)
• Operating temperature range -40°C to +105°C or -40°C to +85°C
• Up to 4 Endorsement keys (EK)
• Intel Trusted Execution Technology Support
• AMD Secure Virtual Machine Architecture Support
• 3.3 V power supply or 1.8 V power supply

Specifications

• Physical Dimensions

• 26.13mm × 14.64mm × 9.93mm (W × L × H)

• Security Features

• Protection of keys and passwords

• Secured firmware update

• Designed for Quantum Computers

• Stronger Cryptographic algorithms

• Secured channel for encrypted data

• Application Support

• Servers and PCs such as desktops, tablets and workstations

• Computing and Storage

• Network devices such as Gateways, Routers, Network interface cards, Switches, etc.
