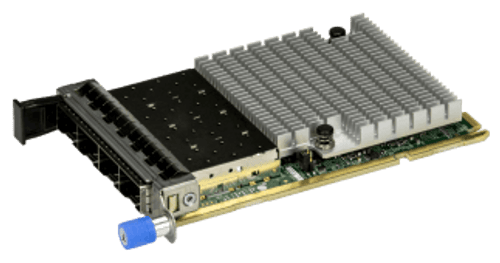

Supermicro Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-A25G-i4SM is one of the most feature rich and low power consumption 25GbE controllers in the market. Based on the Intel Columbiaville E810-CAM1 Ethernet controller with features such as VxLAN, NVGRE, RDMA, and others, it provides unparalleled density, performance, and functionality. The Supermicro® AOC-A25G-i4SM is the most versatile 25GbE controller in the market with the best total cost of ownership for 25GbE deployments in cloud, telco, and enterprise data centers.
FEATURES
- Advanced I/O Module (AIOM) Form Factor
- Intel Columbiaville E810-CAM1 25GbE controller
- Support for 25GbE and 10GbE Speed
- Quad Port SFP28 connectors
- PCIe Gen 4.0 x16 (backward compatible to PCI-E 3.0)
- Low Latency RDMA over Converged Ethernet (iWARP and RoCE v2)
- Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)
- Intel® Ethernet Flow Director – Application Device Queues (ADQ)
- Dynamic Device Personalization (DDP)
- Hardware Root of Trust with Firmware Recovery
- VXLAN, NVGRE and Geneve
- Asset Management Features with thermal sensor
- Network Controller Sideband Interface (NC-SI) for Remote Management
SPECIFICATIONS
- General:
- Advanced I/O Module (AIOM) Form Factor
- Intel E810-CAM1 25GbE controller
- Quad Port SFP28
- Advance Device Queues (ADQ)
- Dynamic Device Personalization (DDP)
- Converged Storage Network:
- iSCSI
- SMB Direct
- iSER
- NVMe over RDMA (iWARP and RoCEv2)
- Storage Performance Development Kit (SPDK)
- NVMe over TCP
- RDMA
- iWARP
- RoCEv2
- Management and Control:
- NC-SI over MCTP
- NC-SI over SMBus
- MCTP over PCIe
- BMC
- PLDM and PLDM based firmware update
- Remote Boot:
- Signed UEFI option ROM compatible with HTTPS boot
- UEFI PXE Boot
- Precision Clocks Synchronization IEEE 802.3ae 10 Gigabit Ethernet
- IEEE 1588 (also known as the Precision Time Protocol (PTP))
- Power Consumption:
- ACPI Compliant power management
- Pass through Energy Efficient Ethernet (IEEE802.3az-2010)
- Maximum: 14W
- Operating Conditions:
- Storage Temperature: -40 °C to 115 °C
- Physical Dimensions:
- Card PCB dimensions: 76mm x 115mm (W x D)
