Compact and Powerful dual-port 10 Gigabit Ethernet Adapter

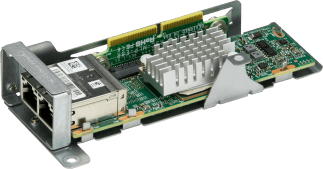

The AOC-CTG-b2T and AOM-CTG-b2TM 10 Gigabit Ethernet Adapters are the most compact and scalable 10GBase-T adapters for today’s demanding data center environments. Based on Broadcom® network controller BCM57416, it addresses the demanding needs of the next-generation data center. The AOC-CTG-b2T and AOM-CTG-b2TM are designed in a proprietary and small MicroLP formfactor to fit Supermicro MicroCloud 8-node and 12-node systems.
Features
- Dual 10GbE RJ45 Connectors
- MicroLP Form Factor
- Broadcom BCM57416 Ethernet Controller
- PCI-E 3.0 x4 interface
- Asset Management feature with thermal sensor
- NC-SI for remote management
Specifications
- General:
- MicroLP Form Factor for Supermicro Micro Cloud systems
- Broadcom BCM57416 dual-port 10Gbps controller
- PCI-E 3.0 x4 (8GT/s) interface
- Dual RJ45 connectors
- Networking Features:
- Jumbo Frames (up to 9600-byte)
- 802.3x flow control
- Link Aggregation (802.3ad)
- Virtual LANs 802.1q VLAN tagging
- Configurable Flow Acceleration
- IEEE 1588 and Time Sync
- vSAN/RDMA
- TruFlow Technology
- Stateless Offload Features:
- TCP, UDP, IPv4, IPv6 checksum offload
- Large Send Offload
- Receive Segment Coalescing
- TCP segmentation Offload
- Large Receive Offload
- Receive Side Scaling (RSS)
- Transmit Side Scaling (TSS)
- NIC partitioning (NPAR):
- 16 Physical Functions
- QoS per partition
- Partitioning control via sideband communication
- Up to 64MAC/VLAN filter per partition
- Stateless offload configuration per partition
- VEB/VEPA support
- Flow Processing:
- Exact/Wildcard Match Flow Lookup
- VLAN insertion/deletion
- NAT/NAPT
- Mirroring
- Virtualization Features:
- NetQueue, VMQueue, and Multiqueue
- Support for 128 Virtual Functions
- VXLAN
- NVGRE
- Geneve
- Edge Virtual Bridging (EVB)
- Data Center Bridging:
- Priority-based flow control (PFC; IEEE 802.1Qbb)
- Enhanced transmission selection (ETS; IEEE802.1Qau)
- Quantized congestion Notification (QCN; IEEE802.1Qau)
- Data Center Bridging Capability eXchange (DCBX; IEEE802.1Qaz)
- 8 traffic classes per port; fully DCB compliant per 802.1Qbb
- Manageability:
- Network Controller Sideband Interface (NC-SI)
- PXE boot
- Asset Management with Thermal Sensors
- Power Savings:
- ACPI compliant power management
- Ultra low-power mode
- Pass-through Energy Efficient Ethernet (IEEE802.3az-2010)
- Operating Conditions:
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity at 35°
- Physical Dimensions:
- PCB dimensions: 11.3cm (4.46”) x 3.9cm (1.54”)
