The Most Compact and Advanced 10GBase-T Adapters

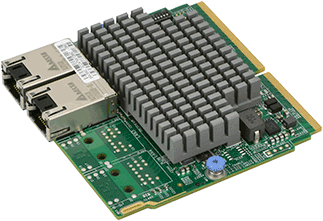

The Supermicro AOC-MTG-i2T are the most feature rich low power 10GBase-T controllers in the market today. Based on the Intel^® X550 chipset with virtualization features such as VXLAN and NVGRE, it offers flexible connectivity selection for all networking requirements. The second generation integrated 10GbE MAC+PHY drives down both cost and power enabling a highly cost effective deployment of 10GbE in the data center. The AOC-MTG-i2T is among the most innovative 10GbE controllers in the market and an excellent choice to expand network connectivity in data centers and enterprise environments.

Features

• Super I/O Module (SIOM) Form Factor

• Intel^® X550 10GbE controller. The second generation, 10GBase-T controller with integrated MAC and PHY.

• Backward compatibility with existing 1000Base-T networks simplifies the transition to 10 GbE.

• Dual RJ45 Connectors

• Network Virtualization Offloads: VXLAN and NVGRE

• VMDq and SR-IOV for virtualized Environment

• Asset Management Features with thermal sensor

• NC-SI for Remote Management

• Supports RJ-45 Category-6 and 6A cables

• RoHS compliant 6/6

Specification

• General

   - Intel^® X550 10GbE controller with integrated 10GBase-T copper

     PHYs

   - Super I/O Module (SIOM) Form Factor

   - Dual RJ45 ports



• I/O Features

   - MSI/MSI-X support

   - Low Latency

   - Multiple Queues: 64 Tx and Rx Per Port

   - Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4,

     IPv6) Capabilities

   - Tx TCP Segmentation Offload (IPv4, IPv6)

   - Receive and Transmit Side Scaling for Windows Environment

     and Scalable I/O for Linux Environments (IPv4, IPv6 and TCP/

     UDP)



• Virtualization Features

   - Multi-mode I/O Virtualization Operations

   - Network Virtualization Stateless Offload: VXLAN, NVGRE

   - Support for Virtual Machine Device Queues (VMDq)

   - 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port

   - Flexible Port Partitioning: 64 VFs per Port

   - PCI-SIG SR-IOV

   - 802.1q VLAN support



• Management Features

   - Preboot eXecution Environment (PXE) support

   - Remote Boot iSCSI and FCoE

   - IEEE 1588

   - Asset Management support on Supermicro^® platforms

   - NC-SI for Remote Management

• Cable Support

   - RJ-45 Category-6 up to 55m; Category-6A up to 100m

• Power Consumption

   - AOC-MTG-i2T: Typical 11W, Maximum 13W

• Operating Conditions

   - Operating temperature: 0°C to 55°C (32°F to 131°F)

   - Storage temperature: -40°C to 70°C (-40°F to 158°F)

   - Storage humidity: 90% non-condensing relative humidity at 35°C

• Physical Dimensions

   - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x

     D)

• Supported Platforms

   - Supermicro® motherboards with Super I/O Module slot

   - Supermicro® server systems with Super I/O Module slot
