Description

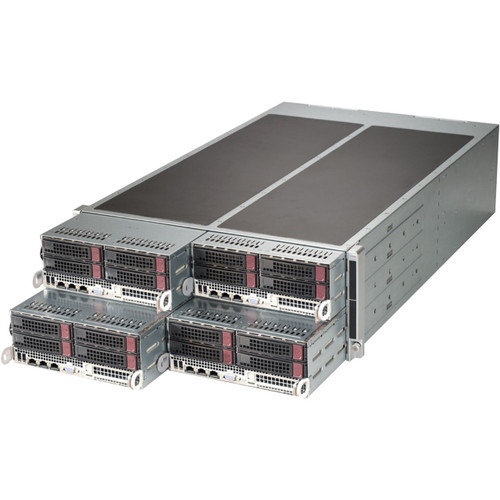

Key Features4 Hot-plug System Nodes in 4U
Each node supports:

1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4^&dagger/ v3 family QPI up to 9.6GT/s

2. Up to 2TB^&dagger ECC 3DS LRDIMM up to
DDR4- 2400^&daggerMHz 16x DIMM slots

3. Expansion slots: 1 PCI-E 3.0 x16 (LP)
1 PCI-E 3.0 x8 (Micro Low Profile)
See Cable Configuration Map

4. I/O ports: 2 GbE ports 1 Built-in video
2 USB 3.0 ports

5. Built-in Server management tool
(IPMI 2.0 KVM/media over LAN) with
dedicated LAN port

6. 6+2 3.5" Hot-swap SATA3 HDD Bays

7. 2x 80mm 11k RPM middle fans

8. 1280W Redundant Power Supplies
Platinum Level (95%)

Specifications


Product SKUs

SYS-F628R3-RTB+	SuperServer F628R3-RTB+ (Black)


Motherboard

Super X10DRFR


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^&dagger/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^&dagger / Up to 55MB^&dagger Cache
System Bus	QPI up to 9.6 GT/s
Note	^&dagger BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory

Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 2TB^&dagger ECC 3DS LRDIMM 1TB ECC RDIMM
Memory Type	2400^&dagger/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB 32GB 16GB 8GB 4GB LRDIMM: 64GB 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SATA	SATA 3.0 (6Gbps) w/ RAID 0 1 5 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i350-AM2 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T 100BASE-TX and 1000BASE-T RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	ASPEED AST2400 BMC


Input / Output (per node)

Serial ATA	10x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports
VGA	1x VGA port


Management

Software	SuperDoctor® 5 Watch Dog NMI IPMI 2.0 SUM and SSM
Power Configurations	ACPI / APM Power Management Power-on mode for AC power recovery


Chassis

Form Factor	4U Rackmount
Model	CSE-F424AS-R1K28BP


Dimensions and Weight

Width	17.63" (448mm)
Height	6.96" (177mm)
Depth	29" (737mm)
Package	28.3" (W) x 15.0" (H) x 42.4" (D)
Weight	Net Weight: 105 lbs (47.63 kg) Gross Weight: 150 lbs (68.04 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED Hard drive activity LED 2x Network activity LEDs Information LED (UID Fan failure Overheat)


Expansion Slots (per node)

PCI-Express	1 PCI-E 3.0 x16 (LP) + 1 Micro LP MicroLP Adapter Matrix (Networking options)


Drive Bays (per node)

Hot-swap	(6+2) 3.5" Hot-swap SATA3 HDD trays


Backplane

1x SAS/SATA backplane


System Cooling (per node)

Fans	2x 8cm 11k RPM middle fans


Power Supply

1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	1000W Output @ 100-140V 8-12A 50-60Hz 1280W Output @ 180-240V 6-8A 50-60Hz
DC Output	1000W: +12V/83A +5Vsb/4A 1280W: +12V/106.7A +5Vsb/4A


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 5°C to 40°C (41°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X10DRFR CSE-F424AS-R1K28BP	4 1	Super X10DRFR Motherboard 4U Chassis
Backplane	BPN-SAS-F424-A6	4	6-port Fat Twin 6Gbps hot swappable HDD backplane support up to 6x 3.5-inch SAS/SATA HDD
Backplane	BPN-SAS-F424-A2	4	2-port Fat Twin 6Gbps hot swappable HDD backplane support up to 2x 3.5-inch SAS/SATA HDD
Backplane	BPN-ADP-F418LS	4	Power Distribution Board for X10DRFRRoHS/REACHPBF
Cable 1	CBL-OTHR-0022L	4	20 to 20 pin cable for BPN-ADP-F418LS7.5cm 28AWGRoHS/REACHPBF
Cable 2	CBL-0157L-02	8	CBLSGPIO2X4F TO 2X4FP2.54RIBBON IN RND TUBE27CM28AWG
Cable 3	CBL-0481L	4	SATAINTROUNDST-ST81CM30AWG
Cable 4	CBL-0480L	4	4 pins to 4 pins 40cm PDB to MB power cable HF. 18AWG
Cable 5	CBL-PWCD-0900	4	PWCDUS/EU/Canada/China/AustraliaIEC60320 C14 TO C134FT17AWG
Cable 6	CBL-0484L	12	SATAINTROUNDST-ST55CM30AWG
Cable 7	CBL-0489L	8	SATAINTROUNDST-RA70CM30AWG
Cable 8	CBL-SAST-0538	8	SATAINTROUNDST-RA29CM30AWG
Cable 9	CBL-0486L	8	2x2 to 2x2 15cm power cable HF. 18AWG
Label	LBL-0108	1	CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual	MNL-1648-QRG	1	Quick Reference Guide for SYS-F628R3-RTB+/R72B+HFRoHS/REACH
Heatsink / Retention	SNK-P0048PS	4	2U Passive CPU Heat Sink for X9 X10 Generation Systems Equipped w/ a Narrow ILM MB
Heatsink / Retention	SNK-P0048P	4	2U Passive CPU Heat Sink for X9 X10 Generation Systems Equipped w/ a Square ILM MB
Power Supply	PWS-1K28P-SQ	4	1U 1280W redundant single output power supply


Optional Parts List

	Part Number	Qty	Description
Software	SFT-OOB-LIC &bull	4	OOB Management Package (per node license)
Software	SFT-DCMS-Single	4	DataCenter Management Package (per node license)
