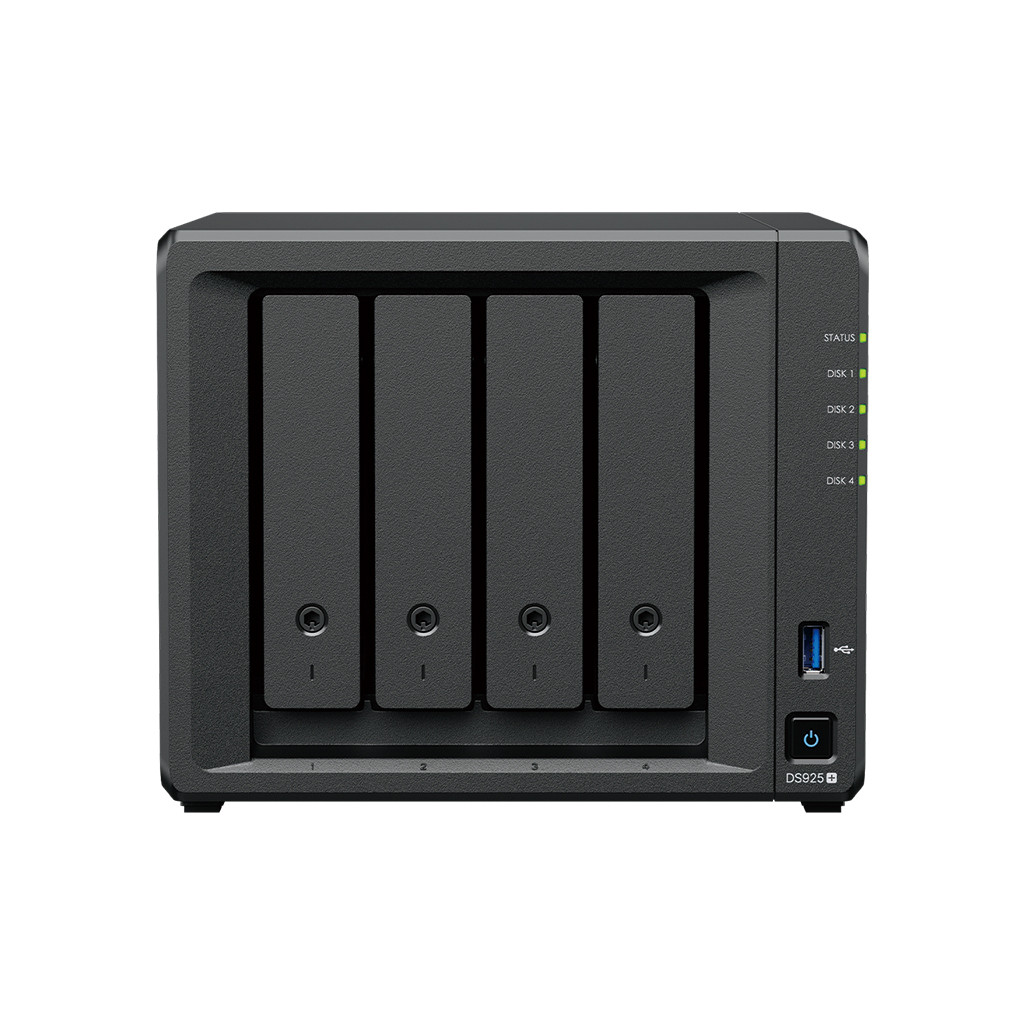

Synology DiskStation DS925+ - 4-Bay With Expansion - AMD Ryzen V1500B - Two built-in 2.5GbE Ports
Versatile all-purpose data hub
2.5GbE connectivity and diverse storage options
The DS925+ features built-in 2.5GbE networking and supports both SATA flash drives and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as either cache or storage pools.
DATASHEET|
Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
|
Storage
|
Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 9 (DX525 x 1) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Drive Type |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
|
External Ports
|
RJ-45 2.5GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | USB Type-C | |
|
Appearance
|
Size (Height x Width x Depth) | 166 mm x 199 mm x 223 mm |
| Weight | 2.26 kg | |
|
Others
|
System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 20.5 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 100 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 37.91 watts (Access) 12.33 watts (HDD Hibernation) |
|
| British Thermal Unit | 129.27 BTU/hr (Access) 42.05 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus | |
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
|
Optional Accessories
|
|
|
