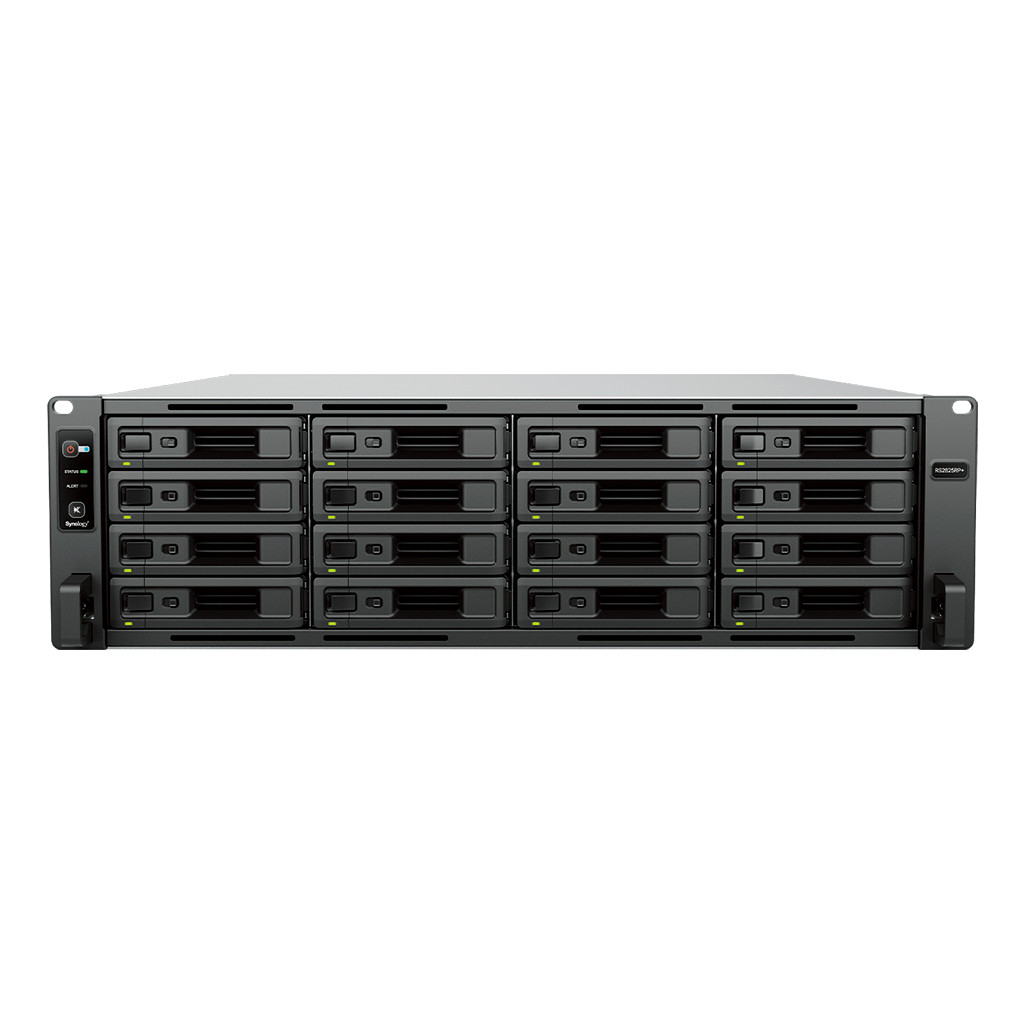

Synology RackStation RS2825RP+ - 3U 16-bay Storage System - Supports 16 2.5" SATA SSD and 3.5" SATA HDD
The RS2825RP (redundant power) is a versatile and cost-effective 3U 16-bay storage system for central data storage and sharing, endpoint and server backup, surveillance management, and other business applications. Designed for small businesses and remote office deployments, this system features over 3,519/1,790 MB/s sequential read/write performance and up to 560 TB of raw storage , providing ample throughput and storage capacity to power business workloads.
Flexible storage with redundancy
Over 3,519/1,790 MB/s seq. read/write , built-in 10GbE, and up to 560 TB raw storage after expansion
Flexible configuration
Add 12 extra drive bays, 10/25GbE ports, and SSD cache volumes whenever needed
Versatile applications
Back up endpoints, manage up to 90 IP cameras, or safely sync and share files across sites
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen V1780B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 3.35 (base) / 3.6 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory
|
System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
|
Storage
|
Drive Bays | 16 |
| Maximum Drive Bays with Expansion Unit | 28 (RX1225RP x 1) | |
| Drive Type |
|
|
| Hot Swappable Drive* | ||
|
External Ports
|
RJ-45 1GbE LAN Port | 2 |
| RJ-45 10GbE LAN Port | 1 | |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | Mini-SAS HD | |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
|
PCIe
|
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
|
Appearance
|
Form Factor (RU) | 3U |
| Size (Height x Width x Depth) | 132.3 mm x 482 mm x 656.5 mm | |
| Weight | 17.3 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
|
Others
|
System Fan | 80 mm x 80 mm x 3 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 49.6 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 550 watts | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 134.48 watts (Access) 50.81 watts (HDD Hibernation) |
|
| British Thermal Unit | 459.17 BTU/hr (Access) 173.49 BTU/hr (HDD Hibernation) |
|
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Operating Humidity | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus | |
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
