Tangent Medix 24 v2, 24" Medical Computer, UL60601-Certified, up to 32GB DDR4 2133 (2 x SO-DIMM), All-in-One Medical Computers

Product code: UK-TAN-Medix 24 v2
Condition: New
Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

Request A Quote

SSL Secure Payment

Tangent Medix 24 v2, 24" Medical Computer, UL60601-Certified, up to 32GB DDR4 2133 (2 x SO-DIMM), All-in-One Medical Computers

Tangent Medix 24 v2, 24" Medical Computer, UL60601-Certified, up to 32GB DDR4 2133 (2 x SO-DIMM), All-in-One Medical Computers

Tangent Medix 24 v2, 24" Medical Computer, UL60601-Certified, up to 32GB DDR4 2133 (2 x SO-DIMM), All-in-One Medical Computers

Features
• Intel 11th Gen. Core i7/i5 processors
• Integrated RFID
• Fanless Construction with Heat Pipes
• TPM
• Optional UPS Battery Backup
• Optional CD/DVDROM
• Built-in Reading Light
• IGEL Compatible

Medical Computer Features

Tangent's Medix 24 v2 is a 24" Medical Grade Computer that features the Intel Core i Series, up to 32GB DDR4 2133 (2 x SO-DIMM), Optional UPS battery backup, IP65 front & IPX1 back panels, antimicrobial enclosure, fanless design, TPM, vPro.

Intel 11th Gen Core i5/i7

Fast and responsive, ready for performance and multi-tasking.

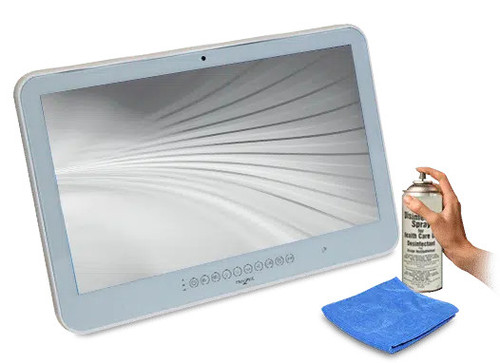

IP65 Front | IPX1 Back

Can be sprayed and wiped clean without damaging the internals.

Antimicrobial

Factory treated with an antimicrobial additive to battle surface contamination.

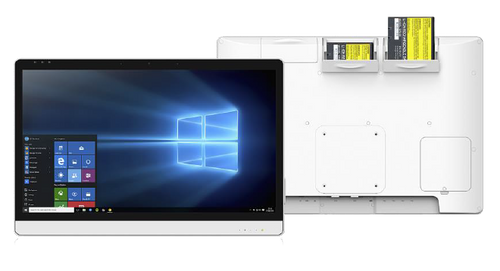

Optional UPS Battery Backup

Up to 30 minutes of standby power.

UL60601-Certified, All-in-One Medical Computers

Tangent Medical Grade Computers designed for healthcare.

UL60601-Certified

UL60601 Certification ensures essential performance and safe-use around other medical electrical equipment.

IP Rating

Sealed and Protected from water and dust intrusion. Easy to spray and wipe clean, aiding in contaminant protection

Antimicrobial

Extra period after environments.

Mission Critical Medical Grade Computers for Healthcare

Medical grade computers or medical PCs are specifically designed for healthcare environments. To safeguard clinicians and for patient safety, a medical PC must be UL/IEC60601-1 certified to be considered medical grade. IEC 60601-1 Certification is granted when a medical electrical device undergoes testing for safety and performance compliance. Certification helps to guarantee reliability and ensure the medical device won't cause harm to staff or patients. 60601-1 certified medical grade PCs offered by Tangent have passed rigorous standards to obtain this certification.

Tangent is a leading provider of cutting-edge medical computers designed for the healthcare industry. 15-inch to 24-inch all-in-one medical grade computers designed for arm mounting, wall mounting, medical stations, or cart installations can be used in a variety of healthcare environments. No matter where you need a mission critical computer, you can find the ideal medical grade all-in-one computer in Tangent’s product line for healthcare.

Tangent's medical grade computers are designed with antimicrobial enclosures. The antimicrobial agent in our medical computers is a necessary component of computers specifically manufactured to address patient and medical staff safety. Antimicrobial medical grade computers help to prevent hazardous surface contamination and promote infection control.

Medical Computer Features to Benefit the Healthcare Industry

Additional features vary by Medical PC model, and can include:

Ingress protection and can be sprayed and wiped clean without damaging the internal components of the computer.
Battery operation- Tangent is the first computer manufacturer to introduce a medical grade computer operated by hot-swappable batteries to the healthcare industry. This feature is poised to serve the unique need of the healthcare industry for medical cart device integration.
Tangent medical grade computers are backed by knowledgeable, talented US-based Technical Support and up to 3-year product warranties. Our medical computers are fully-customizable for healthcare application needs.

SPECIFICATIONS

Display
LCD Size 23.8" (16:9)
Max. Resolution 1920 x 1080 (FHD)
Touch
Touch Screen Projected Capacitive (Optional)
Touch Controller EETI
System
Processor Intel Core i5-1145G7E
Intel Core i7-1185G7E
System Chipset Tiger Lake U SOC
Graphics Controller Intel Iris Xe Graphics
LAN Chipset 1 x GbE: Intel I219-LM
1 x GbE: Intel I210
Audio Realtek ALC256
System Memory Up to 32GB DDR4 2133 (2 x SO-DIMM)
BIOS Insyde 64Mbit
TPM TPM 2.0 Nuvoton (dTPM)
vPro Yes (CPU dependent)
Operating System
Windows Windows 10 Pro 64bit (UEFI only)
Windows 11 Pro 64bit (UEFI Only)
Windows 10 IoT SAC/LTSC 64bit (UEFI only)
Storage
M.2 1 x M.2 2280 "M" Key (NVMe)
Expansion
M.2 1 x M.2 (M key) supports M.2 2280
1 x M.2 (E key) supports M.2 2230 (Reserve for Wi-Fi)
Other Features
Cooling Method Fanless w/ heat pipe
Internal Speaker 2 x 3W speakers
OSD Buttons 4 x Soft touch buttons (LCD On & Off/Power/Brightness On & Off)
WebCam 1 x 2Mpixel camera w/ sliding cover Active noise cancellation mic (ANC) 8M pixel camera (Optional)
Physical
Enclosure Materials ABS + PC plastics, antimicrobial enclosure
Dimension (WxHxD) 22" x 15.13” x 1.9” (560.4mm x 384.3mm x 49.12mm)
Weight w/o UPS no Stand: 13.30 lbs.
w/UPS no Stand: 14.25 lbs.
w/o UPS with Stand: 17.6 lbs.
w/UPS and Stand: 18.55 lbs.
Mounting VESA 75 & 100, optional stand
I/O
Video 1 x HDMI out
1 x HDMI in
COM 4 x RJ45 RS232 Serial Ports
USB 4 x USB 3.0 (rear)
2 x USB 2.0 (rear)
1 x USB 2.0 (side)
LAN 2x GbE RJ45
WLAN 802.11 AC + BT 4.2 LE
Audio 1x Line-Out
Others 1 x power switch
1 x screen on/off
Built-in reading light
Power
Power Input Voltage 19 VDC
Power Connector Barrel Plug
Battery 1 x Li-ion UPS backup only (optional) – 72W – 14.8 @ 5000mah
Power Adapter External power adapter, 19V @4.74A
Environment
Operating Temp. 32°F to 104°F (0°C to 40°C)
Storage Temp. -4°F to 140°F (-20°C to 60°C)
Relative Humidity 10% to 90% non-condensing
IP Level IP65 front, IP x 1 back
Certification IEC60601-1:2005 + A1:2015 (Ed 3.1)
IEC60601-1-2:2014 (Ed 4.0)
IEC60601-1-6:2010 + A1:2013 (Ed 3.1)
ANSI/AAMI ES60601-1:2005/A1:2012 and
C1:2009/®2012 and A2:2010/®2012
ANSI/AAMI 60601-1-2
CAN/CSA-C22.2 No.60601-1-2
CAN/CSA-C22.2 No.60601-1:14
Energy Star 8.0
Warranty
Warranty 1-Year Standard
