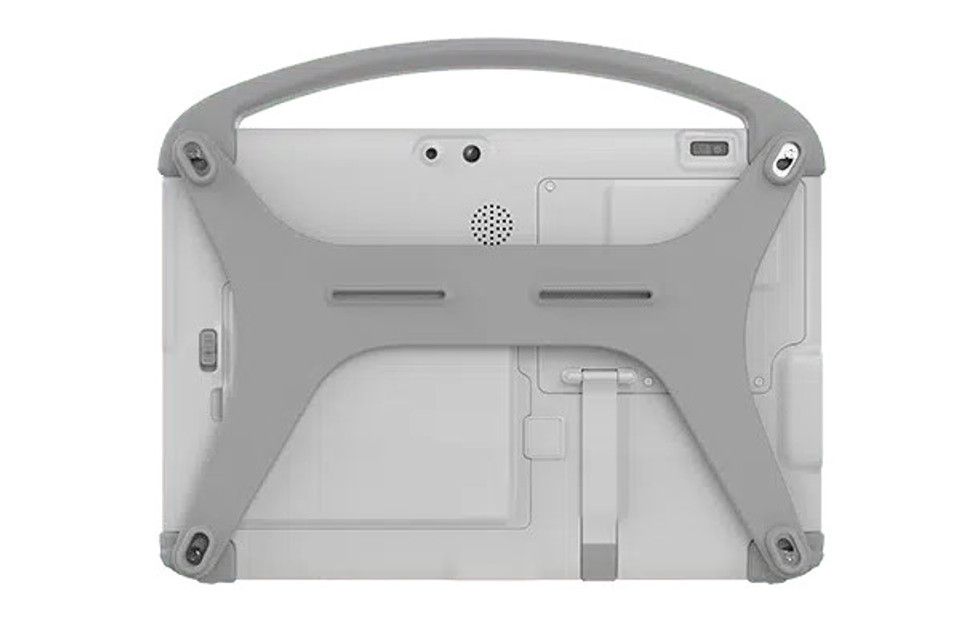

Tangent Medix T13 v4, 13" Medical Tablet PC, Intel Quad Core 11th Gen Processor, Front and Back Cameras, 1D/2D Barcode Scanner
Features
• Intel Quad-Core 11th Gen Processor
• Medical Grade, Antimicrobial Enclosure
• Magnesium Chassis
• Hot-Swappable Battery
• Anti-Reflective Coating
• Optional Carrying Handle
Medical Tablet PC Features
13” Tablet featuring Intel Quad-Core 11th Gen CPU, hospital grade antimicrobial enclosure, ABS/Magnesium chassis, hot-swappable battery, and optional carrying handle. Other optional features include 1D/2D Barcode Scanner or RFID Reader w/SSO or Keystroke Support.
11th Gen Quad-Core
Intel 11th Gen Core CPU for performance and multi-tasking.
Antimicrobial
Hospital grade protection against microbes and surface contamination.
Magnesium Chassis
33% Lighter than Aluminum, Medix T13 v4’s Magnesium chassis delivers a high strength-to-weight ratio. Offers high impact resistance.
Hot-Swap Battery
Continuous operation with hot-swap battery feature.
Antimicrobial, Infection-Control & Rugged Design
Tangent Medical Grade Tablets are designed specifically for healthcare. Powerful, lightweight, durable design and antimicrobial enclosure combine to give you the ideal tool for healthcare environments.
Antimicrobial
Prevents surface contamination. Supports infection control initiatives.
IP Rated- Easy to Sanitize
Sealed and protected from water and dust intrusion. Easy to spray and wipe clean, aiding in contaminant protection
Rugged Design
Designed to withstand shock and vibration.
Optional Barcode Scanner
Scan medications, wrist bands, and other applications.
Optional RFID / Smart Card
Security authentication safeguards confidential patient data and ensures HIPAA compliancy.
Mission Critical Medical Grade Computers for Healthcare
Medical grade computers or medical PCs are specifically designed for healthcare environments. To safeguard clinicians and for patient safety, a medical PC must be UL/IEC60601-1 certified to be considered medical grade. IEC 60601-1 Certification is granted when a medical electrical device undergoes testing for safety and performance compliance. Certification helps to guarantee reliability and ensure the medical device won't cause harm to staff or patients. 60601-1 certified medical grade PCs offered by Tangent have passed rigorous standards to obtain this certification.
Tangent is a leading provider of cutting-edge medical computers designed for the healthcare industry. 15-inch to 24-inch all-in-one medical grade computers designed for arm mounting, wall mounting, medical stations, or cart installations can be used in a variety of healthcare environments. No matter where you need a mission critical computer, you can find the ideal medical grade all-in-one computer in Tangent’s product line for healthcare.
Tangent's medical grade computers are designed with antimicrobial enclosures. The antimicrobial agent in our medical computers is a necessary component of computers specifically manufactured to address patient and medical staff safety. Antimicrobial medical grade computers help to prevent hazardous surface contamination and promote infection control.
Medical Computer Features to Benefit the Healthcare Industry
Additional features vary by Medical PC model, and can include:
Ingress protection and can be sprayed and wiped clean without damaging the internal components of the computer.
Battery operation- Tangent is the first computer manufacturer to introduce a medical grade computer operated by hot-swappable batteries to the healthcare industry. This feature is poised to serve the unique need of the healthcare industry for medical cart device integration.
Tangent medical grade computers are backed by knowledgeable, talented US-based Technical Support and up to 3-year product warranties. Our medical computers are fully-customizable for healthcare application needs.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 13.3" (16:9) |
| Max. Resolution | 1920 x 1080 (WUXGA) |
| Brightness (cd/m2 ) | 350 cd/m2 |
| Contrast Ratio | 700:1 |
| LCD Color | 262,144K |
| Pixel Pitch (mm) | 0.1529mm (H/V) |
| Viewing Angle (H-V) | 178" x 178" |
| Anti-Glare Treatment | Yes |
| Touch | |
| Touch Screen | Projected Capacitive w/10 points Digital Pen (Optional) |
| Touch Controller | EETI HID Digitizer |
| System | |
| Processor | Intel Core i5-1135G7, Quad-Core, 8MB Cache, up to 4.2GHz Intel Core i7-1165G7, Quad-Core, 12MB Cache, up to 4.7Ghz |
| System Chipset | Tiger Lake R SoC Integrated |
| Graphics Controller | Intel Iris Xe Graphics |
| LAN Chipset | 1x GbE: Intel i219-V |
| Audio | Realtek ALC256 |
| System Memory | Up to 32GB DDR4 3200MHz (2 x SO-DIMM) |
| BIOS | Insyde 64Mbit NIST compliant BIOS Optional |
| TPM | TPM 2.0 (fTPM) |
| Operating System | |
| Windows | Windows 10 Pro 64bit, Windows 11 Pro Windows 10 IoT Enterprise |
| Storage | |
| NVMe | 1 x M.2 2280 "M" Key for up to 2TB storage |
| Expansion | |
| SIM Socket | 1x SIM |
| M.2 | 1x M.2 2280 "M" Key for NVMe SSD 1x M.2 2230 "A" & "E" Key for WiFi 1x M.2 2242 "B" key for 4G LTE Modem |
| Other Features | |
| Cooling Method | Fanless |
| Internal Speaker | 1x 1W Speaker |
| WebCam | 1x5Mpixel Camera (Front, Optional) 1x8Mpixel Camera (Rear, Optional) |
| Physical | |
| Enclosure Materials | ABS plastic + Magnesium/Aluminum Alloy |
| Anti-microbial | Yes |
| Dimension (WxHxD) | 13.2" x 8.94" x 0.8" (335mm x 227mm x 21.0mm) (w/o handle) |
| Weight | 3.97lb. (1.8Kg) |
| Mounting | Optional Docks (see accessories) |
| I/O | |
| Video | 1x HDMI (Right Side) |
| USB | 1x USB 3.0 (Left Side) 2x USB 2.0 (Right Side) |
| LAN | 1x GbE RJ45 (Right Side) |
| WLAN | 802.11 Ax + BT 5.2 LE (Intel) |
| Audio | 1x Line-Out (Left Side) |
| Others | 1 x power switch 3 x programmable buttons Options: 1D/2D barcode scanner (optional) Dual Band RFID reader w/SSO or Keystroke support (optional) |
| Power | |
| Power Mode | AC Adapter |
| Power Input Voltage | 19 VDC |
| Power Connector | Barrel Plug |
| Battery | 1x Li-Ion 11.4VDC @ 5400mAh - 61.5W (Hot Swapable) 1x Li-Ion 11.4VDC @ 8000mAh - 91.2W (Optional) |
| Power Adapter | External Power Adapter, 19VDC @3.42A |
| Environment | |
| Operating Temp. | 32°F - 104°F (0°C - 40°C) |
| Storage Temp. | -67°F to 158°F (-55°C to 70°C) |
| Relative Humidity | 0% to 90% non-condensing |
| Certification | FCC CE/CB UKCA ANSI/AAMI ES60601-1 |
| Accessories | |
| Accessories | Desktop Charging Cradle w/USB & LAN Vehicle Mount Cradle w/VESA Shoulder Strap 6x Bay Battery Charger |
| Warranty | |
| Warranty | 1-Year Standard |
