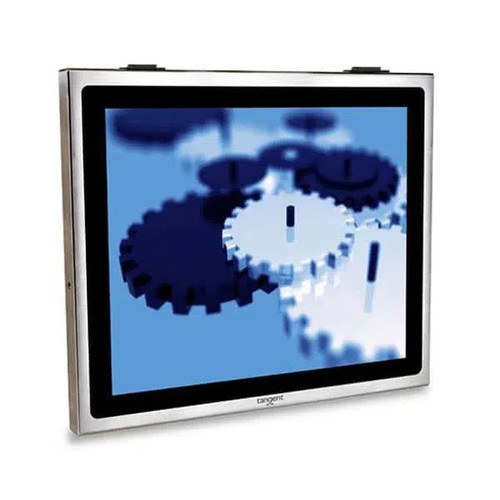

Tangent Vita 484 Fanless Industrial PC, 2 x 260-pin DDR4 SO-DIMM, up to 32GB, Intel 8th Gen. Core i7/i5 Processors
Features
•16”, 19” and 22” Touchscreen
• Intel 8th Gen. Core i7/i5 Processors
• Low Power Consumption Optimized
• 2 x 260-pin DDR4 SO-DIMM, up to 32GB
• Fanless Design
• TPM
• vPro
VITA 484 Features
Voltage Range
Wide input voltage range allows for integration into more environments.
Extreme Operation
Unit can operate at extreme temperature ranges.
IP64 Rated.
IP64 rated front panel offers protection against dust and water splash.
Fanless Design
Fanless Design offers extreme relability with noise-free operation.
Data Input
Optional RFID MiFare Reader and Magnetic Stripe Reader
Industrial Fanless Touchscreen PC
Tangent Industrial PC designed to withstand harsh environments.
Industrial Grade Design
Built from rugged components to deliver reliability, performance, and versatility.
Fanless Operation
High-performance, fanless operation for reliability and use in dusty, industrial environments.
Waterproof, Dustproof, Shock / Vibration proof
IP64, IP65, IP66, or IP69K Sealed for waterproof, dustproof operation.
Certified to meet shock and vibration tests.
Extreme Temperature Operation
Designed to operate at temperatures up to 140° F (60° C).
Mission Critical Medical Grade Computers for Healthcare
Medical grade computers or medical PCs are specifically designed for healthcare environments. To safeguard clinicians and for patient safety, a medical PC must be UL/IEC60601-1 certified to be considered medical grade. IEC 60601-1 Certification is granted when a medical electrical device undergoes testing for safety and performance compliance. Certification helps to guarantee reliability and ensure the medical device won't cause harm to staff or patients. 60601-1 certified medical grade PCs offered by Tangent have passed rigorous standards to obtain this certification.
Tangent is a leading provider of cutting-edge medical computers designed for the healthcare industry. 15-inch to 24-inch all-in-one medical grade computers designed for arm mounting, wall mounting, medical stations, or cart installations can be used in a variety of healthcare environments. No matter where you need a mission critical computer, you can find the ideal medical grade all-in-one computer in Tangent’s product line for healthcare.
Tangent's medical grade computers are designed with antimicrobial enclosures. The antimicrobial agent in our medical computers is a necessary component of computers specifically manufactured to address patient and medical staff safety. Antimicrobial medical grade computers help to prevent hazardous surface contamination and promote infection control.
Medical Computer Features to Benefit the Healthcare Industry
Additional features vary by Medical PC model, and can include:
Ingress protection and can be sprayed and wiped clean without damaging the internal components of the computer.
Battery operation- Tangent is the first computer manufacturer to introduce a medical grade computer operated by hot-swappable batteries to the healthcare industry. This feature is poised to serve the unique need of the healthcare industry for medical cart device integration.
Tangent medical grade computers are backed by knowledgeable, talented US-based Technical Support and up to 3-year product warranties. Our medical computers are fully-customizable for healthcare application needs.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 15.6”, 18.5” and 21.5” (16:9) |
| Max. Resolution | 15.6" & 18.5" Models: 1366 x 768 (HD) 21.5" Model: 1920 x 1080 (FHD) |
| Brightness (cd/m2) | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Viewing Angle | 170° / 160° |
| Backlight MTBF | 30,000 hours |
| Touch | |
| Touch Screen | Projected Capacitive w.10 points |
| Touch Controller | EETI EXC 3160 |
| System | |
| Processor | Intel 8th Gen. Core i7/i5 Processors |
| System Chipset | Whiskey Lake SOC |
| LAN Chipset | 1 x GbE: Intel I219-LM |
| Audio | Realtek ALC888 |
| System Memory | Up to 32GB DDR4 2400 (2 x SO-DIMM) |
| BIOS | AMI 128Mbit |
| TPM | TPM 2.0 (fTPM) |
| vPro | Yes (CPU dependent) |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Storage | |
| SSD/HDD | 1 x 2.5” SATA Bay |
| M.2 SATA | 1 x M.2 2280 “M” Key (SATA or PCIe x 4 NVMe) |
| Expansion | |
| Mini PCI Express | 1 x MiniPCIe Full or Half Length 2 x MiniPCIe Full and Double Length, for POE PD Options |
| M.2 | 2 x M.2 (M key) supports M.2 2280 (See Storage above) 1 x M.2 (A/E key) supports M.2 2230 (WiFi) |
| Other Features | |
| Cooling Method | Fanless |
| Internal Speaker | 2 x 3Watt |
| Webcam | 1 x 2Mpixel w/Mic |
| I/O | |
| Video | 1 x HDMI |
| COM | 1 x D89 Serial RS-232 1 x D89 Serial RS-232/422/485 |
| USB | 4 x USB 3.2 Gen2 |
| LAN | 3 x GbE RJ45 |
| WLAN | 802.11 AC + BT 5.0 |
| Others | 1 x Power Button 1 x Reset Button 1 x RFID – MiFAre 13.56Mhz Reader (Optional) 1 x Magnetic Stripe Reader (Optional) |
| Operating System | |
| Windows | Windows 10 Pro 64bit (UEFI Only) Windows 19 IoT SAC/LTSC 64bit (UEFI Only) Windows 11 Pro Windows 11 IoT SAC |
| Power | |
| Power Input Voltage | 12 VDC |
| Power Connector | 4pin Mini-DIN |
| Power Adapter | External Power Adapter, 12V @ 8.0A (96W) |
| Environment | |
| Operating Temp | -4°F - 122°F (-20°C - 50°C) |
| Storage Temp. | -4°F - 140°F (-20°C - 60°C) |
| Relative Humidity | 10% - 95% non-condensing |
| IP Level | IP64 (Front panel) |
| Certification | CE, FCC Class A, ErP 2009/125/EC |
| Physical | |
| Enclosure Materials | ABS Plastics |
| Dimensions (W x H x D) | 15.6” Model: 15.59” x 9.84” x 2.52” (396 x 250 x 64mm) 18.5” Model: 18.5” x 11.42” x 2.75” (470 x 290 x 70 mm) 21.5” Model: 20.79” x 13.23” x 2.68” (528 x 336 x 68 mm |
| Weight | 15.6” Model: 9.91lbs (4.5Kg) 18.5” Model: 16.09lbs (7.3Kg) 21.5” Model: 18.29lbs (8.3Kg) |
| Mounting | VESA 75/100, Optional Stand, Optional Panel Mounting kit |
| Warranty | |
| Warranty | 1-year standard |
