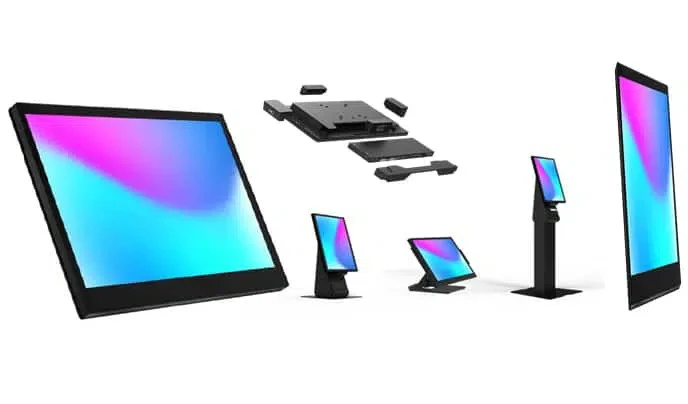

Tangent Vita K Android Industrial PC, Fanless Construction, Qualcomm Snapdragon 660 CPU, Android 10
Features
• 11.6", 15.6", 18.55" & 21.4" Android Industrial PC
• Android 10
• Modular Design – Easy Maintenance
• Multiple Peripherals – Expandable and Flexible
• Qualcomm Snapdragon 660 CPU
• Flexible Configuration
• Narrow Stylish Bexel Design
• Fanless Construction
• Low Power Consumption Optimized
• Optional Accessories: Webcam w/Mic, MSR, RFID, 2D
Scanner, Fingerprint Reader, Light Bar
VITA K Android Features
Industrial Grade
Metal enclosure offers rugged housing for use in harsh environments.
Widescreen
Enhanced viewing with 12", 15", 19" or 22" widescreen.
IP65 Rated.
rated front panel offers dust and water resistance.
Fanless Design
12", 15", 19", 22" offer fanless, noise-free operation
VESA Mounting
VESA mounting capability offers installation flexibility
Industrial Fanless Touchscreen PC
Tangent Industrial PC designed to withstand harsh environments.
Industrial Grade Design
Built from rugged components to deliver reliability, performance, and versatility.
Fanless Operation
High-performance, fanless operation for reliability and use in dusty, industrial environments.
Waterproof, Dustproof, Shock / Vibration proof
IP64, IP65, IP66, or IP69K Sealed for waterproof, dustproof operation.
Certified to meet shock and vibration tests.
Extreme Temperature Operation
Designed to operate at temperatures up to 140° F (60° C).
Mission Critical Medical Grade Computers for Healthcare
Medical grade computers or medical PCs are specifically designed for healthcare environments. To safeguard clinicians and for patient safety, a medical PC must be UL/IEC60601-1 certified to be considered medical grade. IEC 60601-1 Certification is granted when a medical electrical device undergoes testing for safety and performance compliance. Certification helps to guarantee reliability and ensure the medical device won't cause harm to staff or patients. 60601-1 certified medical grade PCs offered by Tangent have passed rigorous standards to obtain this certification.
Tangent is a leading provider of cutting-edge medical computers designed for the healthcare industry. 15-inch to 24-inch all-in-one medical grade computers designed for arm mounting, wall mounting, medical stations, or cart installations can be used in a variety of healthcare environments. No matter where you need a mission critical computer, you can find the ideal medical grade all-in-one computer in Tangent’s product line for healthcare.
Tangent's medical grade computers are designed with antimicrobial enclosures. The antimicrobial agent in our medical computers is a necessary component of computers specifically manufactured to address patient and medical staff safety. Antimicrobial medical grade computers help to prevent hazardous surface contamination and promote infection control.
Medical Computer Features to Benefit the Healthcare Industry
Additional features vary by Medical PC model, and can include:
Ingress protection and can be sprayed and wiped clean without damaging the internal components of the computer.
Battery operation- Tangent is the first computer manufacturer to introduce a medical grade computer operated by hot-swappable batteries to the healthcare industry. This feature is poised to serve the unique need of the healthcare industry for medical cart device integration.
Tangent medical grade computers are backed by knowledgeable, talented US-based Technical Support and up to 3-year product warranties. Our medical computers are fully-customizable for healthcare application needs.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size | 11.6", 15.6", 18.5" 21.5" (16:9) |
| Max. Resolution | 1920 x 1080 (FHD) for 11.6", 15.6" & 21.5 1366 x 786 (HD) for 18.5" |
| Touch | |
| Touch Screen | Projected capacitive w. 5 points (Optional) |
| System | |
| Processor | Qualcomm Snapdragon 660 CPU |
| System Chipset | 4 core Kyro 260 Gold (Cortex-A73) 4 core Kyro 260 Silver (Cortex-A53) |
| Graphics Controller | Adreno 512 |
| LAN Chipset | 1 x 10/100 LAN |
| Audio | Hexagon 680 DSP |
| System Memory | 4GB LPDDR4 |
| Operating System | |
| Linux | Android 10 |
| Storage | |
| SSD/HDD | 64GB eMMC |
| Other Features | |
| Cooling Method | Fanless |
| Internal Speaker | 1 x 1W speaker (Left side only) |
| Camera | 5Mpixel (Optional w/Mic) |
| I/O | |
| Video | 1 x MiniDP out (FeDP – Proprietary) 1 x DP via USB-C (requires converter cable) |
| COM | 2 x DB9 RS232 Serial Ports |
| USB | 2 x USB 3.0 (Type A) 2 x USB 3.0 (Type C) 2 x USB 2.0 (Type A) |
| LAN | 1 x 10/100 LAN RJ45 |
| WLAN | 802.11 AC + BT 4.2 LE |
| Others | 1 x RJ11 Cash Drawer Output Optional Accessories: 5Mpixel Webcam w/Mic 3-Track MSR RFID/NFC Reader 2D Scanner Fingerprint Reader (Digital Persona) Light Bar NOTE: 11.6” Model supports 1x accessory (Bottom only) 15.6", 18.5" and 21.5" Models can support 3x accessories (Sides and Bottom) |
| Power | |
| Power Input Voltage | 19 VDC |
| Power Connector | 4pin Mini DIN |
| Power Adapter | External Power Adapter, 19V @ 3.42A |
| Environment | |
| Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | 20% - 85% non-condensing |
| Certification | Ce Mark Class A, FCC Class A, LVD |
| Physical | |
| Enclosure Materials | ABS + PC plastics enclosure |
| Dimension (WxHxD) | 11.6": 8.4" x 7.1" x 1.6" (277 x 180.5 x 40.8mm) 15.6": 14.9" x 9.3" x 1.7" (370 x 235 x 42.3mm) 18.5": 17.8" x 10.8" x 2.0" (453 x 273 x 50.2mm) 21.5": 20.4" x 12.2" x 1.9" (518 x 310 x 49.3mm) |
| Weight | 11.6": 3.1 lbs. 15.6": 6.6 lbs. 18.5": 9.7 lbs. 21.5": 11.7 lbs. |
| Mounting | VESA 75 & 100 Optional Stands: POS Stand Printer Stand Floor Stand w/ Printer Mount |
| Warranty | |
| Warranty | 1-Year Standard |
