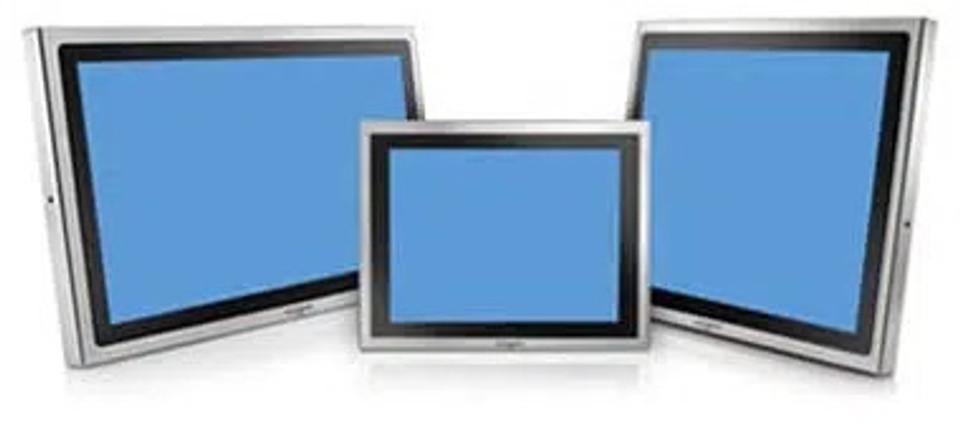

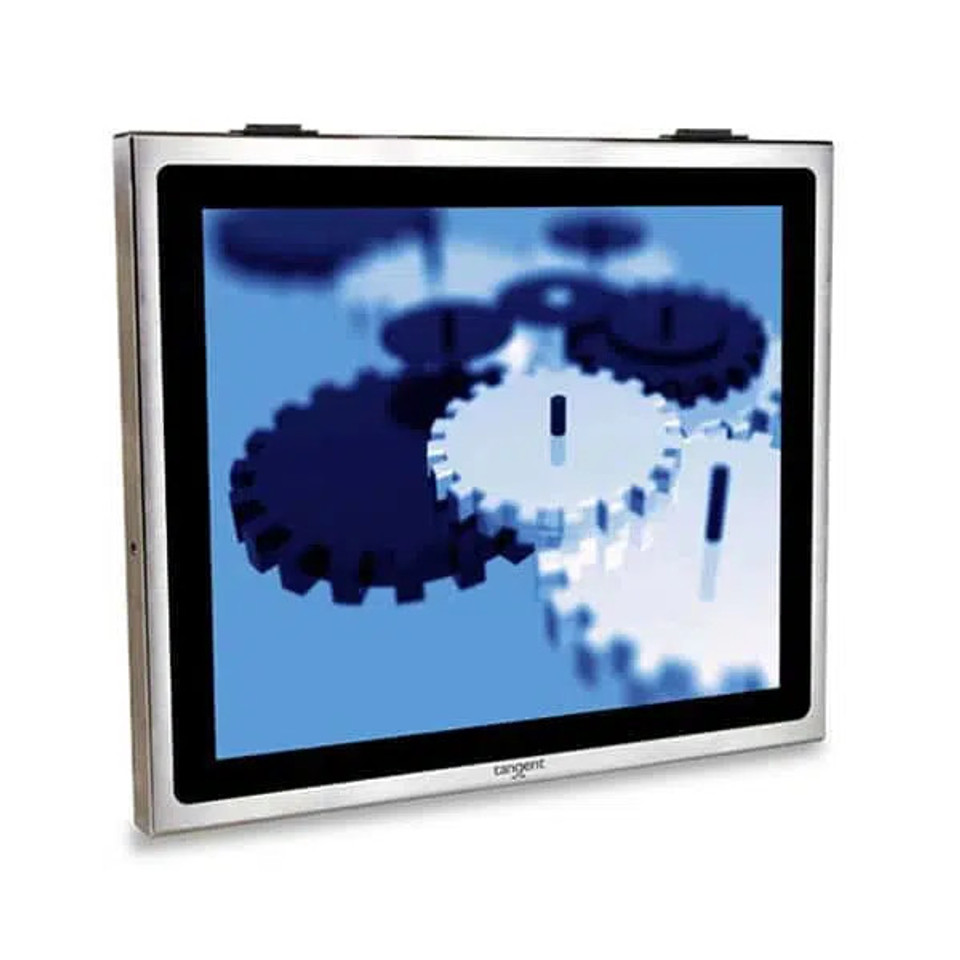

Tangent Vita S Series v3 Fanless Industrial PC, stainless steel fanless design IP66 full enclosure, 2 x 260-pin DDR4 SO-DIMM, up to 32GB, Intel 8th Gen. Core i7/i5 Processors
Features
• 15", 19", 22" & 24" Touch
• Intel 8th Gen. Core i7/i5 Processors
• IP66/IP69K Rated Enclosure
• Fanless Construction
• Low Power Consumption Optimized
• 2 x 260-pin DDR4 SO-DIMM, up to 32GB
• Stainless Steel Enclosure
• TPM (Optional)
S Series Features
IP66
Protected against spray down, water pressure and temp.
8th Gen Core i7/i5 Processor
Best-in-class integrated media/graphic performance. Faster connectivity.
Stainless Steel
Rugged, stainless housing offers a corrosion resistant surface.
Fanless Design
Fanless design for extreme reliability, and noise-free operation.
VESA Mounting
100x100 VESA mounting provides installation flexibility.
Industrial Fanless Touchscreen PC
Tangent Industrial PC designed to withstand harsh environments.
Industrial Grade Design
Built from rugged components to deliver reliability, performance, and versatility.
Fanless Operation
High-performance, fanless operation for reliability and use in dusty, industrial environments.
Waterproof, Dustproof, Shock / Vibration proof
IP64, IP65, IP66, or IP69K Sealed for waterproof, dustproof operation.
Certified to meet shock and vibration tests.
Extreme Temperature Operation
Designed to operate at temperatures up to 140° F (60° C).
Mission Critical Medical Grade Computers for Healthcare
Medical grade computers or medical PCs are specifically designed for healthcare environments. To safeguard clinicians and for patient safety, a medical PC must be UL/IEC60601-1 certified to be considered medical grade. IEC 60601-1 Certification is granted when a medical electrical device undergoes testing for safety and performance compliance. Certification helps to guarantee reliability and ensure the medical device won't cause harm to staff or patients. 60601-1 certified medical grade PCs offered by Tangent have passed rigorous standards to obtain this certification.
Tangent is a leading provider of cutting-edge medical computers designed for the healthcare industry. 15-inch to 24-inch all-in-one medical grade computers designed for arm mounting, wall mounting, medical stations, or cart installations can be used in a variety of healthcare environments. No matter where you need a mission critical computer, you can find the ideal medical grade all-in-one computer in Tangent’s product line for healthcare.
Tangent's medical grade computers are designed with antimicrobial enclosures. The antimicrobial agent in our medical computers is a necessary component of computers specifically manufactured to address patient and medical staff safety. Antimicrobial medical grade computers help to prevent hazardous surface contamination and promote infection control.
Medical Computer Features to Benefit the Healthcare Industry
Additional features vary by Medical PC model, and can include:
Ingress protection and can be sprayed and wiped clean without damaging the internal components of the computer.
Battery operation- Tangent is the first computer manufacturer to introduce a medical grade computer operated by hot-swappable batteries to the healthcare industry. This feature is poised to serve the unique need of the healthcare industry for medical cart device integration.
Tangent medical grade computers are backed by knowledgeable, talented US-based Technical Support and up to 3-year product warranties. Our medical computers are fully-customizable for healthcare application needs.
SPECIFICATIONS
| Display | |
|---|---|
| LCD Size/ Max Resolution | 15" LCD (4:3), 1024 x 768 (XGA) 19" LCD (5:4), 1280 x 1024 (SXGA) 21.5" LCD (16:9), 1920 x 1080 (FHD) 23.8” LCD (16:9), 1920 x 1080 (FHD) |
| Brightness (cd/m2) | 15": 450 cd/m2 19": 350 cd/m2 21.5" & 23.8” : 250 cd/m2 |
| Contrast Ratio | 15": 800:1 19": 1000:1 21.5": 1000:1 23.8”: 3000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 15": 0.297mm |
| Viewing Angle (H-V) | 15": 160° / 160° 19" & 21.5": 170° / 160° 23.8”: 178° / 178° |
| Touch | |
| Touch Screen | 15”/ 19”/21.5”: 5 wire resistive w/1 point touch 23.8”: Projected Capacitive |
| Touch Controller | 15”/ 19”/21.5”: Elo |
| System | |
| Processor | Intel 8th Gen. Core i7/i5 Processors |
| System Chipset | Whiskey Lake SOC |
| Graphics Controller | Intel HD Graphics 620 (Core CPU) |
| LAN Chipset | 1 x GbE: Intel I219-LM |
| Audio | Realtek ALC262 |
| System Memory | Up to 32GB DDR4 2133 (2x SO-DIMM) |
| BIOS | AMI 128Mbit |
| TPM | TPM 2.0 (fTPM) |
| vPro | Yes |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| I/O | |
| COM | 1 x DB9 Serial RS232/ COM1 (1 x M12 Connector) 1 x DB9 Serial RS232/422/485, COM2 (1 x M12 Connector |
| USB | 2 x USB 2.0, USB 1 & 2 (1 x M12 Connector) 2 x USB 2.0, USB 3 & 4 (1 x M12 Connector) |
| LAN | 1 x GbE RJ45 (1 x M12 Connector) |
| WLAN | 802.11 AC + BC 4.0 LE (Optional) |
| Others | 1 x Sealed Power Switch |
| Storage | |
| SSD/HDD | 1 x 2.5” SATA Bay |
| mSATA | 1 x mSATA (Shared with 1 x Mini PCIe) |
| M.2 SATA | 1 x M.2 M-key, SATA, 2242/2260/2280) |
| Expansion | |
| M.2 | 1 x M.2 (E key) supports M.2 2230 for Wi-Fi |
| Other Features | |
| Cooling Method | Fanless |
| Internal Speaker | 2 x 2W Sealed Speakers (Optional) |
| Operating System | |
| Windows | Windows 10 Pro 64bit Windows 11 Pro 64bit |
| Power | |
| Power Input | 19 ~ 28 VDC |
| Power Connector | M12 Connector |
| Power Adapter | Sealed External 24V @ 5A (120W) |
| Environment | |
| Operating Temp | 32°F to 104°F (0°C to 40°C), (0°C to 50°C w/SSD) |
| Storage Temp. | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 10% to 90% non-condensing |
| Shock | With SSD: 15 G, half sine, 11 ms |
| Vibration | With SSD: 5 Grms, 5-500 Hz, 15 min/axis |
| IP Level | IP66 (Full Enclosure) / 4 x NEMA IP69K (Optional w/PCAP) |
| Certification | 15”/ 19”//21.5”: FCC, CE (EMC), VCCI Class B 23.8”: FCC Class B,, CE (EMC), VCCI Class B, Canada ICES-003 |
| Physical | |
| Enclosure | SUS304 Stainless Steel Enclosure 23.8” Optional SUS316 Stainless Steel |
| Dimension (W x H x D) | 15": 15.55" x 12.18" x 2.28" (395 x 309.5 x 58mm) 19": 18.03" x 15.19" x 2.52" (458 x 386 x 64mm) 22": 21.93" x 13.72" x 2.30" (557 x 348.5 x 58.5mm) 24: 24.67” x 15.59” x 2.52” (626..6 x 396.1 x 64.0mm) |
| Weight | 15": 18.5 lbs.(8.4kg) 19": 25.35 lbs.(11.5kg) 22": 26.45 lbs.(12kg) 24”: 32.63 lbs. (14.8kg) |
| Mounting | VESA 100, Optional Side Mount Stand |
| Warranty | |
| Warranty | 1-year standard |
