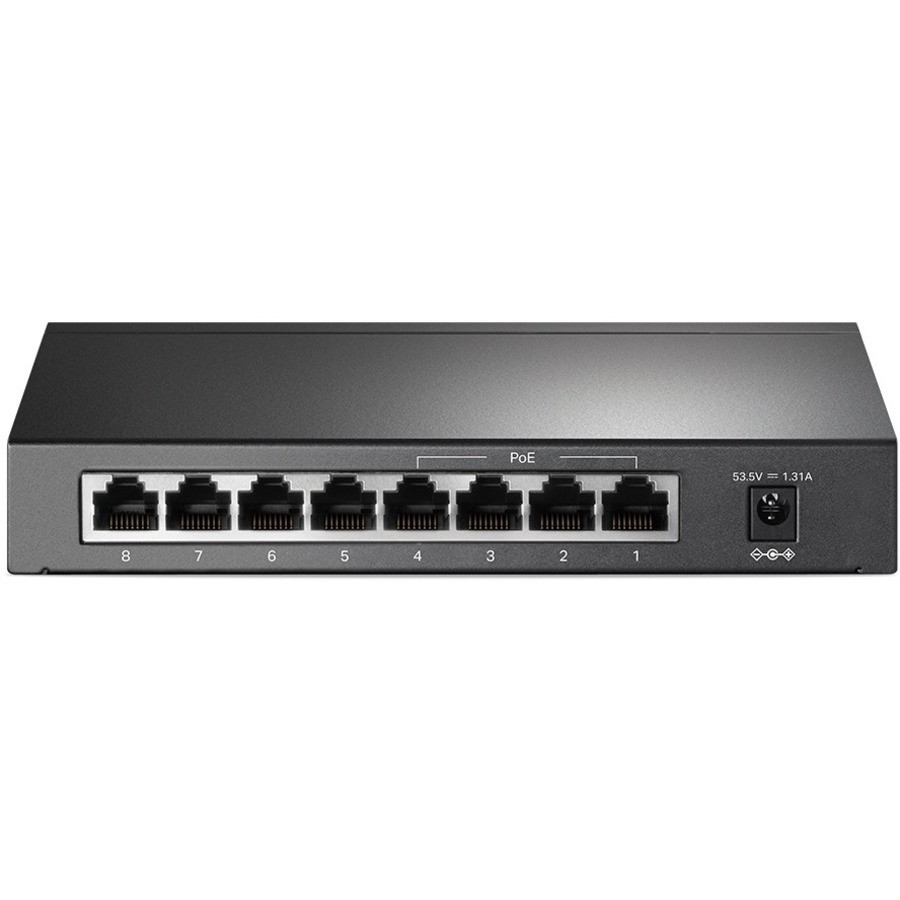

8PORT Gigabit POE SWITCH DESKTOP POE SWITCH STEEL CASE
What This Product Does
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
- Flexible Full Gigabit 8-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 64W, together w/ 4x Gigabit Non-PoE Port for high-speed connections.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.
| Layer Supported | 2 |
| Network Technology | 10/100/1000Base-T |
| Twisted Pair Cable Standard | Category 6 |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Modular | No |
| Management Port | No |
| Uplink Port | No |
| Number of PoE (RJ-45) Ports | 4 |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| 4 x Gigabit Ethernet PoE+ |
| Form Factor | Desktop |
| Height | 1.1" |
| Width | 6.7" |
| Depth | 3.9" |
| Product Color | Black |
| Product Material | Metal |
| Input Voltage | 48 V DC |
| Power Source | Power Adapter |
| Power Consumption | 5.40 W |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | No |
| PoE Budget | 64 W |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TL-SG1008P |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | TL-SG1008P |
| Product Name | TL-SG1008P Ethernet Switch |
| Brand Name | TP-Link |
