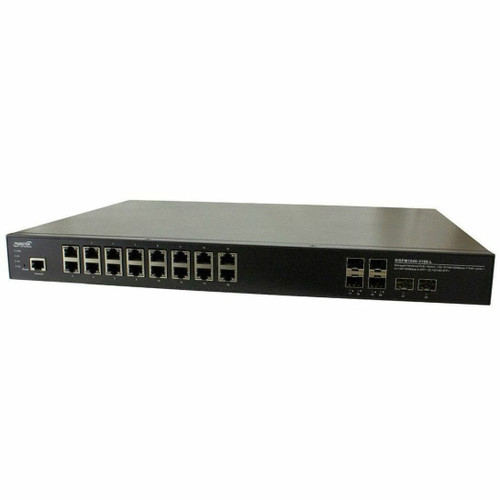

Transition Networks Managed Hardened Gigabit Ethernet PoE+ Rack Mountable Switch - 16 Ports - Manageable - 4 Layer Supported - Modular - 4 SFP Slots - Optical Fiber, Twisted Pair - Rack-mountable - 5 Year Limited Warranty POE+ 4 100/1000 SFP 2 1G/10G SFP+
This switch is a next generation rack mount hardened switch with 80Gbps switching capacity. It provides (16) 10/100/1000 PoE+ ports, (4) 100/1000 dual speeds SFP ports and has (2) additional 1G/10G SFP+ slots.Features
- IPv4/IPv6 dual protocols
- Supports Jumbo Frame up to 9K bytes
- Authentication - RADIUS, TACACS+
- DHCP Relay, DHCP Snooping, DHCP Server
- L2/L3/L4 ACLs Support MAC, VLAN ID, or IP address, protocol, per port
- LLDP (Link Layer Discovery Protocol)
- ITU-T G.8031 Ethernet Linear Protection
- ITU-T G.8032 Ethernet Ring Protection Switching
- Rapid Ring for fast recovery
- IEEE 802.3az Energy Efficiency
Technical Specs
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 4 |
Power Description
| Power Source | Power Supply |
Interfaces/Ports
| Modular | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| 2 x 10 Gigabit Ethernet Expansion Slot | |
| 4 x Gigabit Ethernet Expansion Slot |
Miscellaneous
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE | |
| TAA Compliant | No |
I/O Expansions
| Expansion Slot Type | SFP |
| SFP+ | |
| Number of Total Expansion Slots | 6 |
| Number of SFP Slots | 4 |
| Number of SFP+ Slots | 2 |
| Shared SFP Slot | No |
Physical Characteristics
| Weight (Approximate) | 10.58 lb |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 11.8" |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SISPM1040-3166-L-NA |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer | Transition Networks, Inc |
| Product Model | SISPM1040-3166-L |
| Product Name | Managed Hardened Gigabit Ethernet PoE+ Rack Mountable Switch |
| Brand Name | Transition Networks |
Media & Performance
| Network Technology | 10GBase-X |
| 1000Base-X | |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
