Features

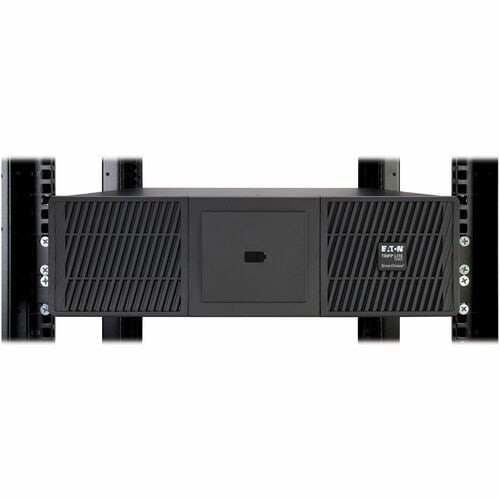

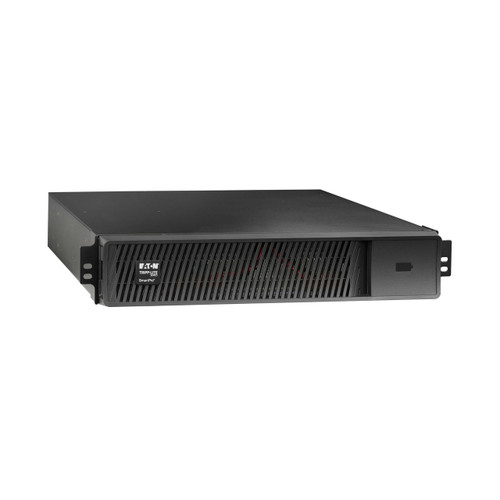

Backup Battery Module Gives Your Compatible UPS System Extended RuntimeThe BP48VRXLTAA offers extended battery runtime when used in conjunction with certain Eaton Tripp Lite series 1500VA SmartPro® UPS systems, such as the SMART1500RXLTAA. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.Equipped with External Battery Auto-DetectThe automatic battery detection feature works with the connected UPS system to detect the EBM and automatically update runtimes. Up to four EBMs can be daisy-chained to a single UPS.Versatile Design Supports 2U Rack or Tower Installation This VRLA battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright configuration.TAA-Compliant for GSA Schedule PurchasesThe BP48VRXLTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- In terms of cost per watt hours, it is an inexpensive choice providing efficient power
- Add power to the UPS whose quality is affected by weak internal batteries
- Valve-regulated battery characteristics for reliable charging performance with maximum productivity
Specifications
OVERVIEW
| UPC Code | 786689816032 |
INPUT
| Input Phase | Single-Phase |
BATTERY
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage (VDC) | 48 |
| Internal UPS Replacement Battery Cartridge | 744-A3297 |
| Battery Replacement Description | Hot-swappable, user-replaceable batteries. EBM requires 2 Replacement Battery Cartridges. |

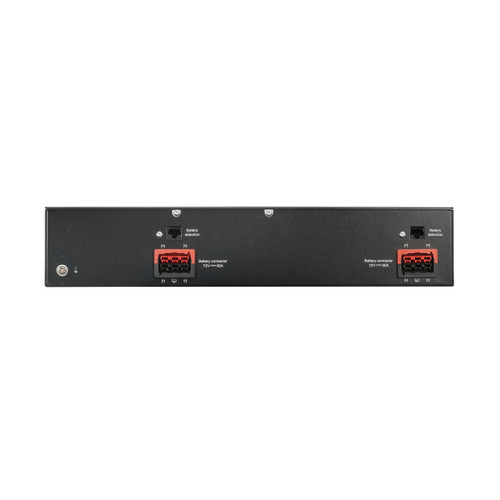

| UPS Connection | Detachable power and data cables with series specific connectors. |
| Typical Battery Lifespan | 3 to 5 Years |
PHYSICAL
| Material of Construction | Steel |
| Rack Height | 2U |
| External Battery Pack Form Factor | Rack/Tower |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount; Tower |
| Minimum Required Rack Depth (inches) | 19 |
| Unit Dimensions (hwd / in.) | 3.400 x 17.200 x 17.600 |
| Unit Weight (lbs.) | 61.8 |
STANDARDS & COMPLIANCE
| Product Certifications | CSA (Canada); cTUVus; cUL Listed |
| Product Compliance | CE (Europe); RoHS; Trade Agreements Act (TAA); WEEE |
