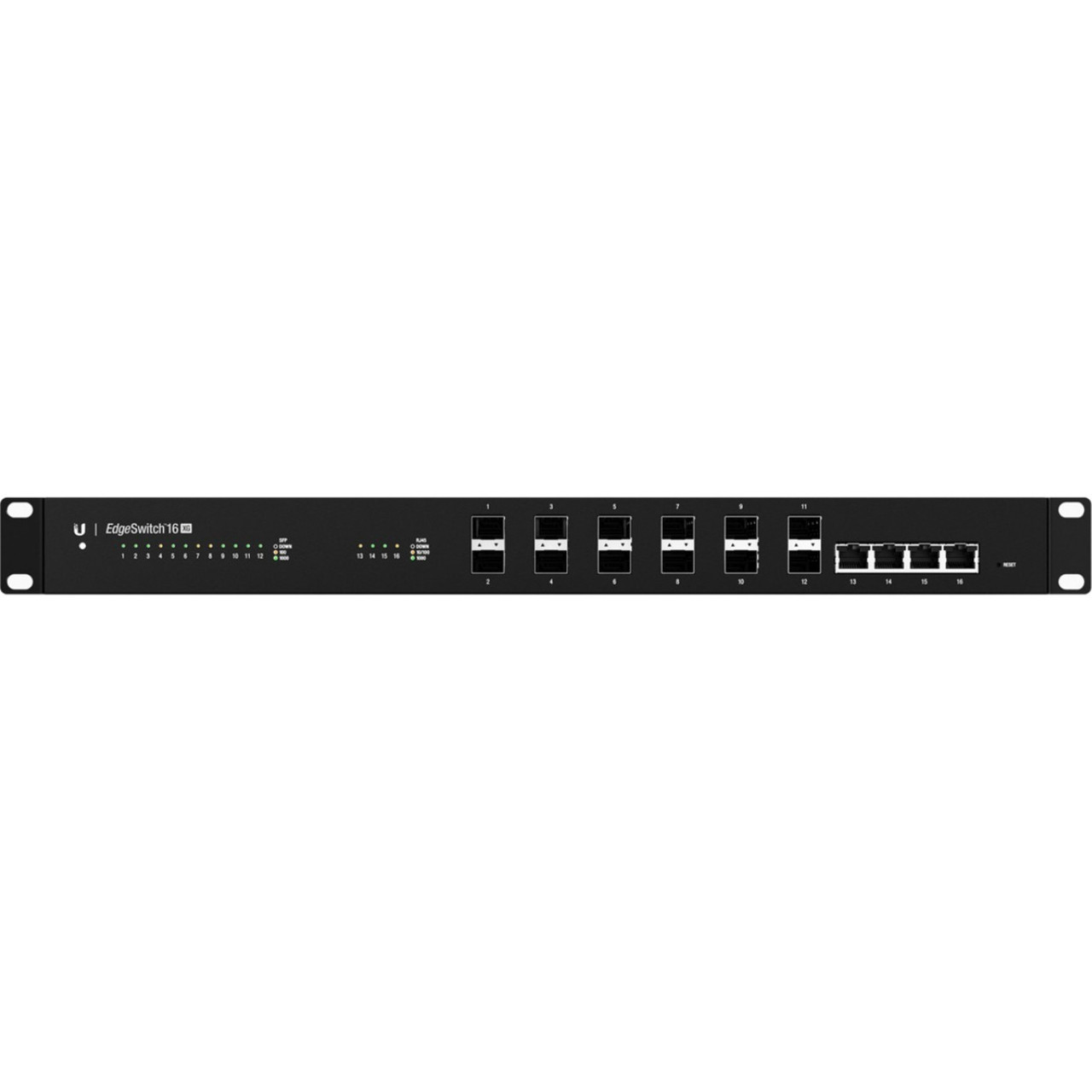

Ubiquiti 10G 16-Port Managed Aggregation Switch - 4 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Standalone - 1 Year Limited Warranty
Advanced Switching Technology for the MassesBuild and expand your network with Ubiquiti Networks® EdgeSwitch™ XG, part of the EdgeMAX® line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services togrowing networks.
The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.
10G High-Capacity Links
The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
- MSTP/RSTP/STP
- VLAN, Private VLAN, Voice VLAN
- Link Aggregation
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
- DiffServ, CoS
- Static Routing, Policy-Based Routing
- DHCP Server Functionality
Features
- Non-Blocking Throughput Switching
- Maximum Performance and Low Latency
- 10G Ethernet SFP+ and RJ45 Ports
Technical Specs
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 3 |
Power Description
| Power Source | Power Supply |
| AC Adapter | |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Slots | 12 |
| Number of SFP+ Slots | 12 |
| Shared SFP Slot | No |
Miscellaneous
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE |
Physical Characteristics
| Weight (Approximate) | 5.78 lb |
| Form Factor | Standalone |
| Rack-mountable | |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 8.7" |
| Compatible Rack Unit | 1U |
Media & Performance
| Network Technology | 10GBase-X |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | No |
| Stack Port | No |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Expansion Slot |
| 4 x 10 Gigabit Ethernet Network |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | ES-16-XG |
| Manufacturer Website Address | http://www.ubnt.com |
| Manufacturer | Ubiquiti Networks, Inc |
| Product Model | ES-16-XG |
| Product Name | 10G 16-Port Managed Aggregation Switch |
| Product Line | EdgeSwitch |
| Brand Name | Ubiquiti |
