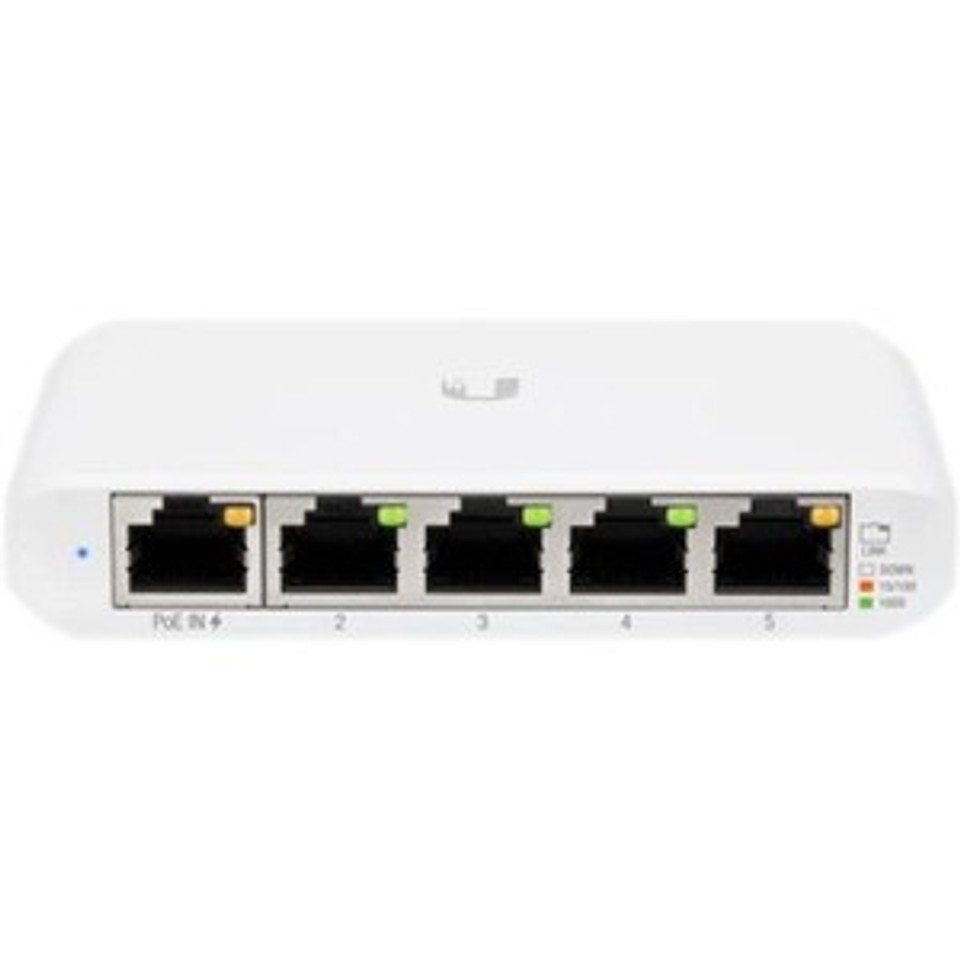

Ubiquiti Compact 5-Port Gigabit Switch - 5 Ports - Manageable - 2 Layer Supported - 2.50 W Power Consumption - Twisted Pair - PoE Ports - Compact, Desktop - 2 Year Limited Warranty GIGABIT DESKTOP SWITCH
Expand your network with the UniFi® Switch Flex Mini, part of the Ubiquiti® UniFi Enterprise System.Compact Desktop Design
The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.
Copper Connectivity
Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.
Efficient Use of Energy
The UniFi Switch Flex Mini uses only a maximum of 2.5W.
For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter.
Switching Performance
The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Scalable UniFi Network Controller
Management Capabilities
The UniFi Network™ Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.
Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
Deep Packet Inspection
Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
Software Features
The UniFi Network Controller software offers the following features for the UniFi Switch Flex Mini:
- Centralized configuration management (including configuration cloning)
- Auto-MDIX automatically adjusts as needed for straight through or crossover cable
You can access the UniFi Switch Flex Mini through the UniFi Controller to configure a variety of features:
- Operation mode (switching or mirroring) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
You can also view status information for each port:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting
Features
- Powered by 802.3af/at PoE or USB Type C
- Compact Desktop Footprint
- Energy-Efficient Design
Technical Specs
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 2 |
Interfaces/Ports
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet PoE |
| 4 x Gigabit Ethernet Network |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
Physical Characteristics
| Weight (Approximate) | 5.29 oz |
| Form Factor | Compact |
| Desktop | |
| Height | 0.8" |
| Width | 4.2" |
| Depth | 2.8" |
Power Description
| Input Voltage | 5 V |
| 57 V DC | |
| 44 V DC | |
| Power Source | PoE |
| Power Consumption | 2.50 W |
| PoE (RJ-45) Port | Yes |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | USW-Flex-Mini-3 |
| Manufacturer Website Address | http://www.ubnt.com |
| Packaged Quantity | 3 |
| Manufacturer | Ubiquiti Networks, Inc |
| Product Name | Compact 5-Port Gigabit Switch |
| Product Line | USW Flex Mini |
| Brand Name | Ubiquiti |
