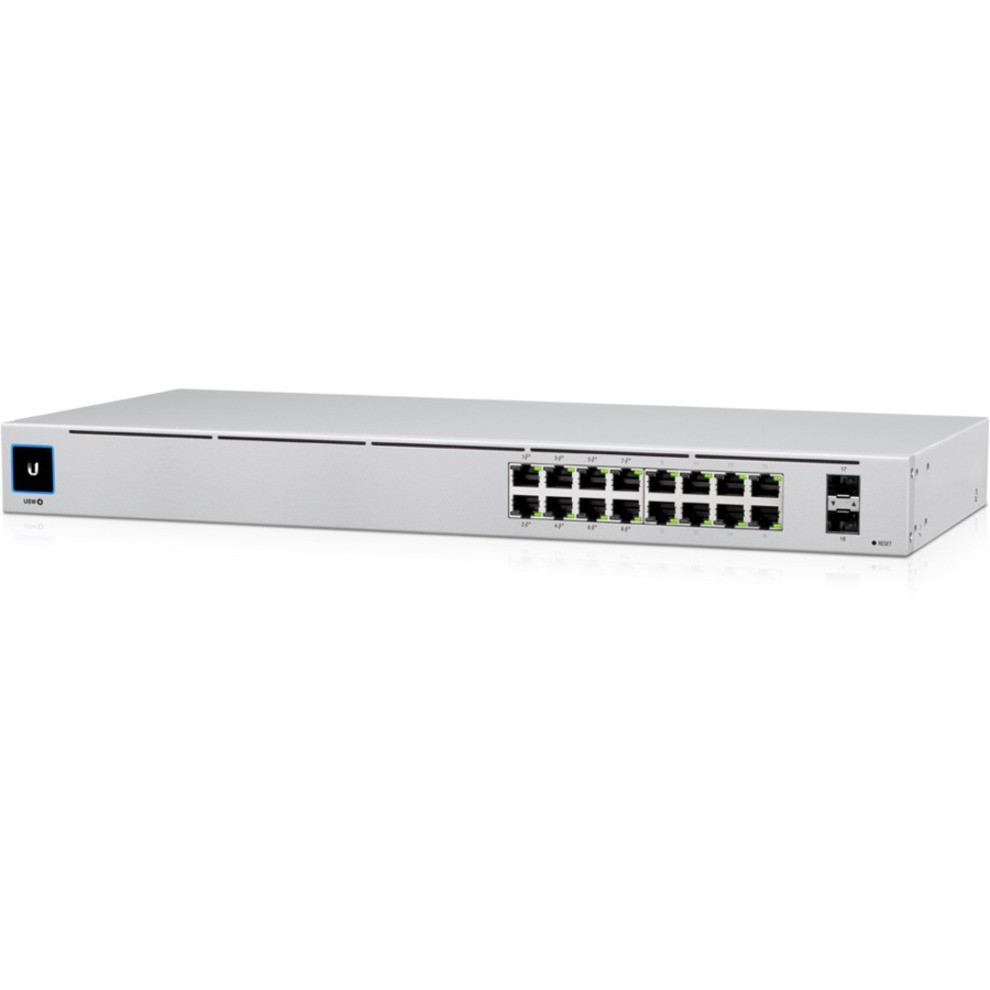

Ubiquiti UniFi 16-Port PoE Switch - 16 Ports - Manageable - 2 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Desktop - 1 Year Limited Warranty POE & SFP
The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9" , the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Management & Protocols
Network & Communication
Power Description
| Power Source | Power Supply |
I/O Expansions
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of Total Expansion Slots | 2 |
| Number of SFP Slots | 2 |
Miscellaneous
| Package Contents | - UniFi 16-Port PoE Switch
- Rackmount Hardware
|
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 1000Base-X |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Twisted Pair |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| 8 x Gigabit Ethernet Network |
| 8 x Gigabit Ethernet PoE+ |
Physical Characteristics
| Weight (Approximate) | 6.17 lb |
| Form Factor | Desktop |
| Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 7.9" |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | USW-16-POE |
| Manufacturer Website Address | http://www.ubnt.com |
| Manufacturer | Ubiquiti Networks, Inc |
| Product Model | USW-16-POE |
| Product Name | UniFi 16-Port PoE Switch |
| Product Line | UniFi |
| Brand Name | Ubiquiti |
