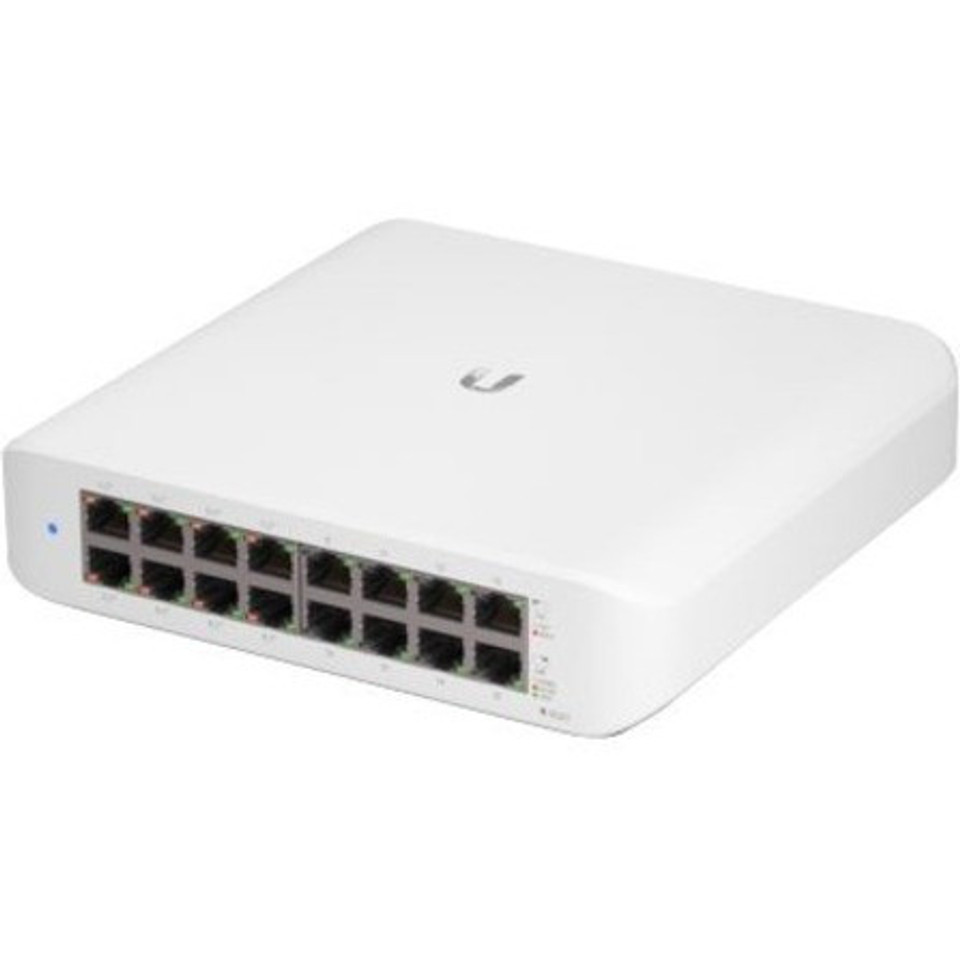

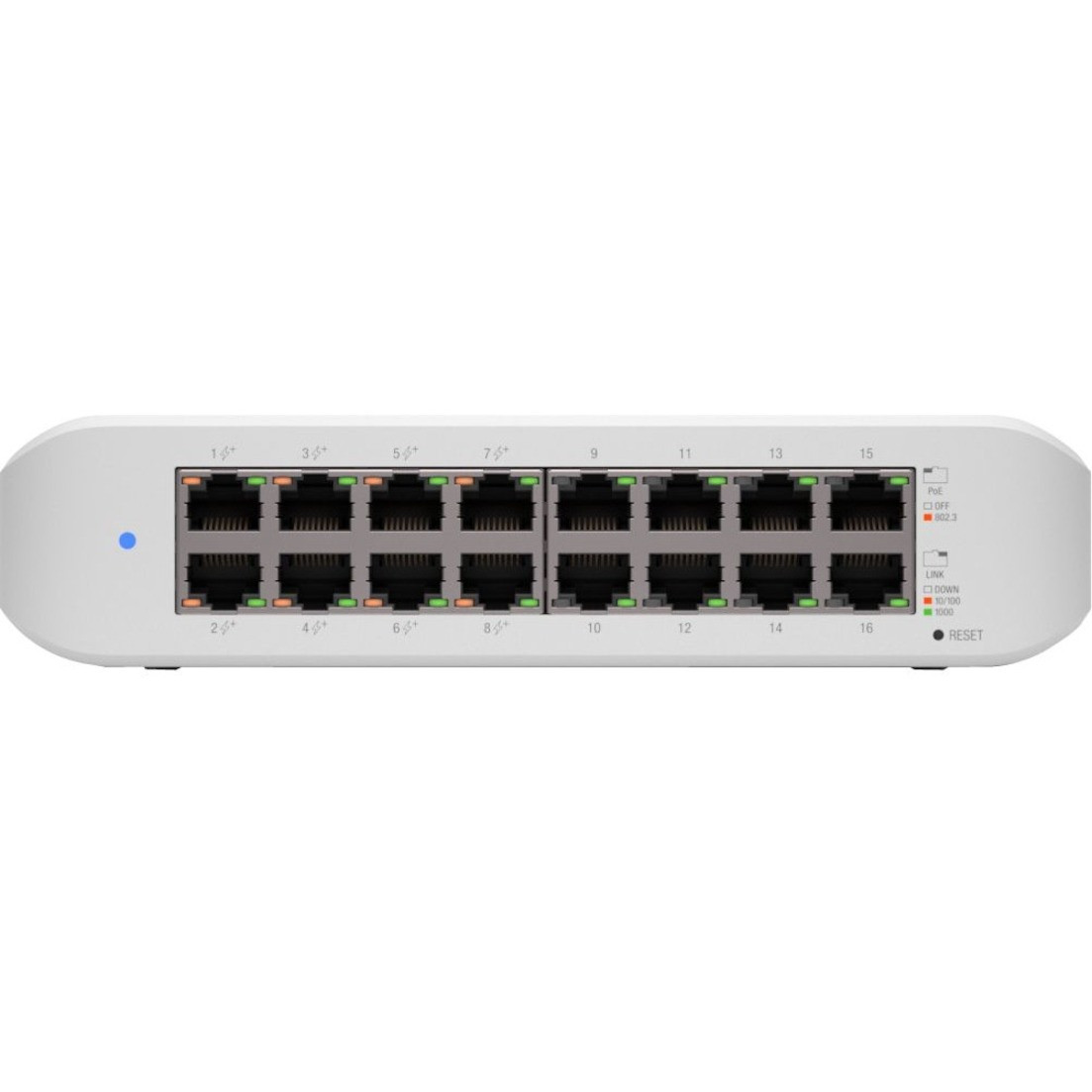

Ubiquiti UniFi Switch Lite 16 PoE USW-Lite-16-PoE Ethernet Switch - 16 Ports - Manageable - 2 Layer Supported - 15 W Power Consumption - 45 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable - 2 Year Limited Warranty
The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices.
Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Features:
- (16) Gigabit RJ45 ports including (8) 802.3at PoE+
- Managed by UniFi Controller
- 60W power supply
- Wall-mountable (Kit included)
Managed by UniFi Network Controller version: 5.13.5 or higher
Management & Protocols
Network & Communication
Interfaces/Ports
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| 8 x Gigabit Ethernet PoE+ |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | USW-Lite-16-POE |
| Manufacturer Website Address | http://www.ubnt.com |
| Manufacturer | Ubiquiti Networks, Inc |
| Product Model | USW-Lite-16-PoE |
| Product Name | UniFi Switch Lite 16 PoE USW-Lite-16-PoE Ethernet Switch |
| Product Line | UniFi Switch Lite 16 PoE |
| Brand Name | Ubiquiti |
Miscellaneous
| Package Contents | - UniFi Switch Lite 16 PoE USW-Lite-16-PoE Ethernet Switch
- Mounting Kit
|
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
Physical Characteristics
| Weight (Approximate) | 2.65 lb |
| Form Factor | Wall Mountable |
| Height | 1.7" |
| Width | 7.6" |
| Depth | 7.3" |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC |
| Power Source | Power Supply |
| Power Consumption | 15 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 45 W |
