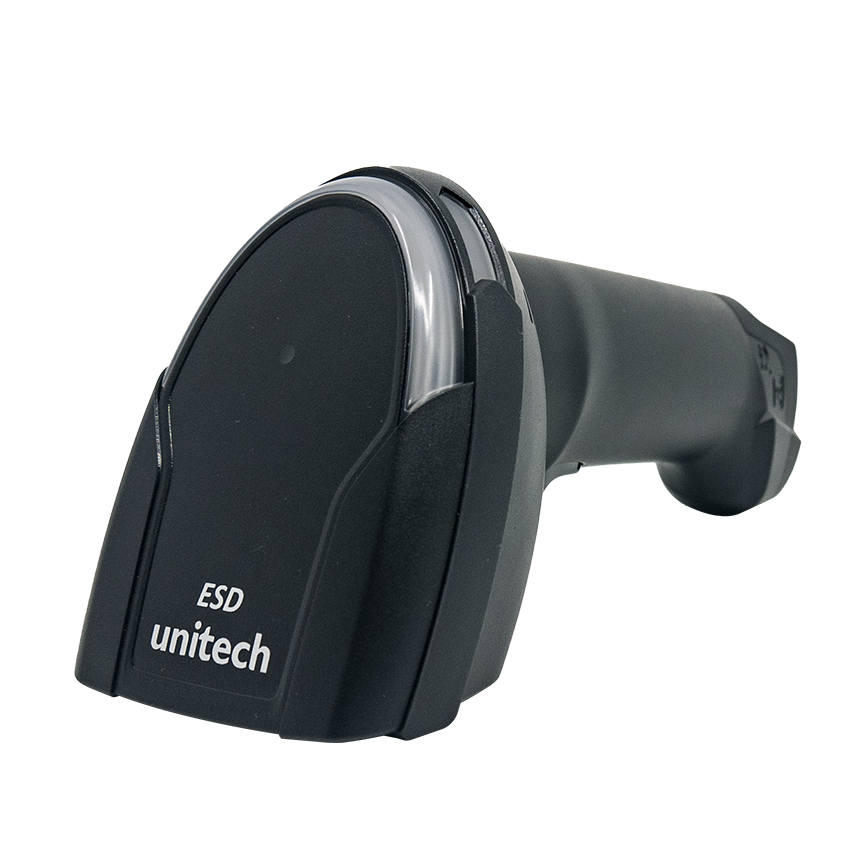

Unitech 2D Imager DPM Scanner, DPM Technology｜ESD-Safe Design｜IP42 + 2.1m Drop Protection - MS852DPM ESD

The MS852 DPM ESD is designed to read 1D, 2D, and barcode markings using DPM technology and is intended to meet the stringent requirements of cleanrooms and static-safe manufacturing environments.

Specially built for satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments, the MS852DPM ESD 2D barcode scanner enhances its outstanding value on supporting most 1D, 2D and barcodes marked with the DPM technology. It is an ideal choice for a variety of applications, from manufacturing, automotive, aeronautical, medical care, electronic equipment to healthcare markets.

Increase Productivity with Superior Industrial Barcode Scanner
The MS852 DPM ESD is built in megapixel barcode sensor that enhances the maximum compatibility to capture most 1D / 2D barcodes on mobile screens and special barcode symbologies such as Direct Part Marks(DPM) on chips. With its advanced barcode technology and durable design, the MS852 DPM ESD handheld scanner is a highly reliable tool to increase productivity and efficiency.

DPM technology (Direct Part Marking)
Direct Part Marking is a process that allows users to mark a barcode directly on an item instead of printing the barcode on a label, such as plastic and metal. There are three main technologies available for DPM: laser etched marking, dot peening and ink jet printing, with the intent to create a permanent identifier for the item. The permanent nature of the
marking, assures that the item can be identified throughout its full life-cycle during the supply chain, even while being exposed to harsh environmental conditions. When it comes to identifying DPM parts throughout the manufacturing process, tracking your valuable assets though their lifecycle or quality control – the unitech MS852 DPM ESD really gets the job done!

Ultra-Durability
While sustaining a 2.1 meter drop to concrete, MS852 DPM ESD incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for best reliability.

ESD Protection
MS852 DPM ESD-safe scanner is made by internal mixed way with antistatic agent to protect our barcode scanner to be ESD safe to be used at ESD protected area including its cable. With the Internal mixed way, the body of the product and its cable can withstand ESD up to 105 ~109 ohms per square and no containing Chlorine material. The Internal mixed way can provide a longer time of ESD protection than external addition way due to external additional anti-static in the
latter part of the packaging or processing process was wiped away. It is a reliable tool to streamline your workflow in manufacturing
environments.

• Advanced barcode reading technology for decoding Direct Part Marking (DPM)


• Specifically designed to satisfy the stringent requirements of static-safe environments


• Support most 1D / 2D barcode on mobile screens


• Long lifecycle trigger design: Up to 10,000,000 times


• Ultra-rugged design: IP42 and 2.1m drop spec


• Louder beeper and brighter LED indicators for easily recognizing feedbacks
