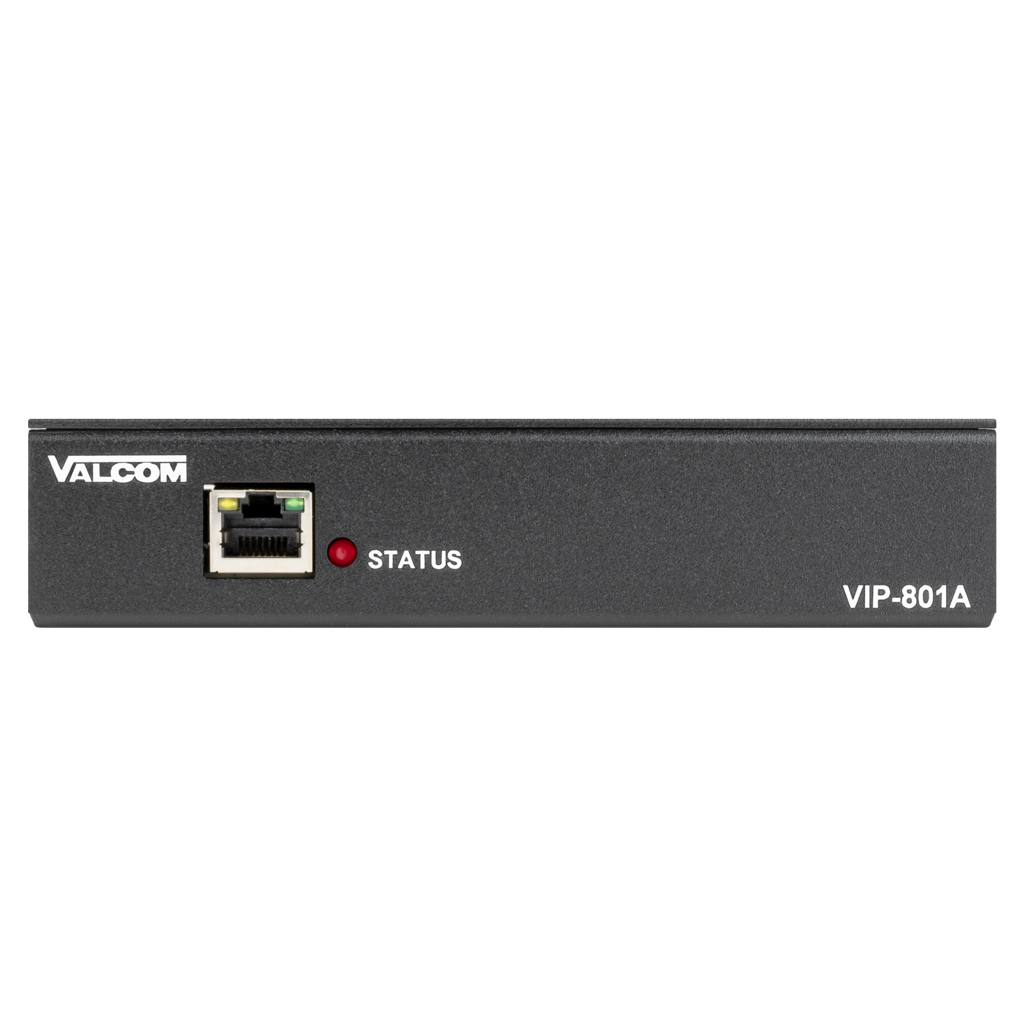

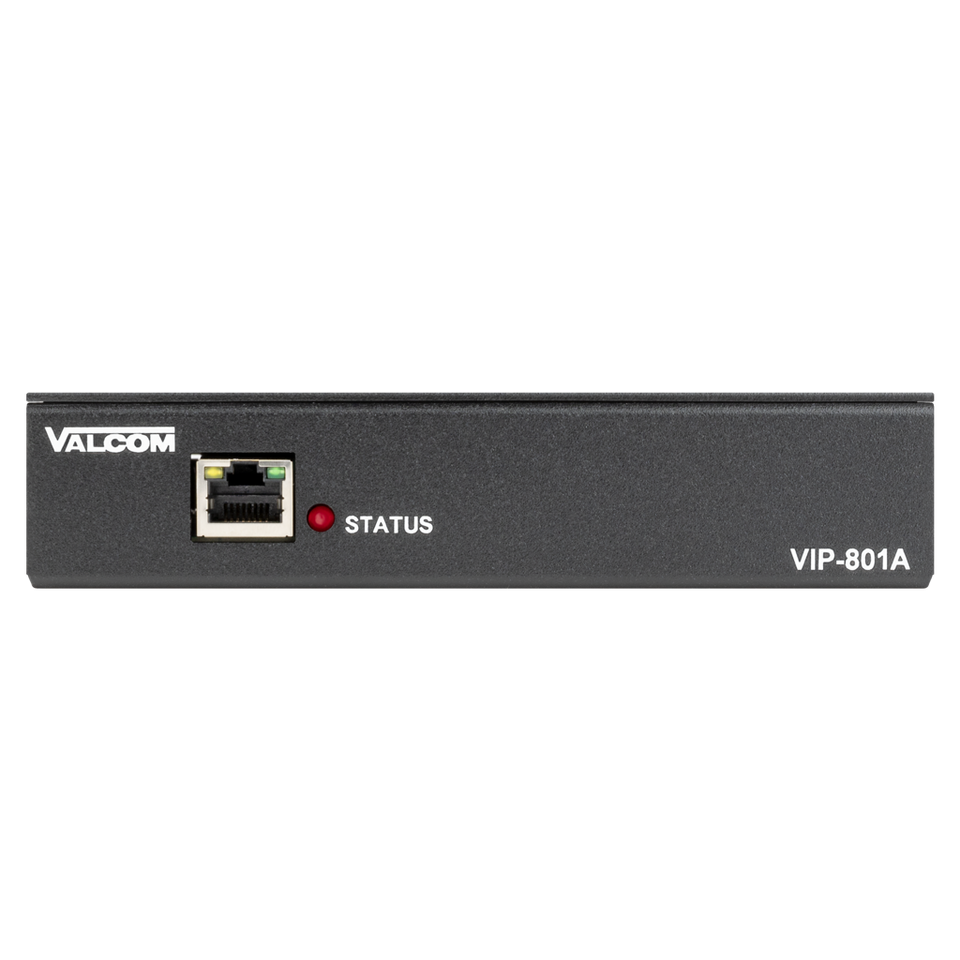

Valcom ENHANCED NETWORK AUDIO PORT
Overview
The VIP-801A is one of Valcom's Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device For connectivity to virtually any VoIP telephone system.
- Audio outputs
- Programmable Form A or C Relay Closures
- Programmable contact closure inputs
- RJ-45 jack For network connection
- Front panel activity LED
- Provides audio For up to 40 Valcom one-way amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25 or 70 Volt amplifiers
- Barrel jack For optional DC power
Specifications
AUDIO INPUT
Audio input impedance: 600 Ohms
AUX input impedance: 8 to 600 Ohms
AUX input level: -10dBm nominal
SENSITIVITY
Voice switch sensitivity: -21dBm
AUDIO OUTPUT
Page output impedance: 50 Ohms
Page output level: - 10dBm nominal
Auxiliary output provides a signal output compatible with most amplifiers and should be used where a transformer-coupled output is desired.
POWER REQUIREMENTS
Via rear panel barrel connector:
Voltage: 24VDC
Current: 325mA
Via 802.3af PoE Ethernet Switch: Class 3
NETWORK
10/100 Mbps Ethernet
Manual or Dynamic Host Configuration Protocol (DHCP) IP address assignment.
Time and date synchronization using NTP
PROTOCOLS
IETF SIP (RFC3261)
IETF IGMP version 2 or 3 (RFC2236, RFC3376)
IETF RTP (RFC1889)
IETF RTP Payload For DTMF (RFC2833)
AUDIO CODECS
G.711 u-law, others
ACCESS METHODS
Valcom M Cast Page Group
SIP – enabled telephone system
CAPACITY
Provides audio For up to 40 Valcom one-way amplified speaker assemblies
AUXILIARY RELAYS
Two Form C Relays rated at 1A @ 24 Vdc
ENVIRONMENT
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
DIMENSIONS & WEIGHT
Dimensions:
1.38in H x 6.13in W x 5.25in D
(3.50cm x 15.60cm x 13.33cm)
Weight: 1.25lbs (0.57kg)
MOUNTING
The VIP-801A is designed For wall or table mounting.
Simple Diagram
