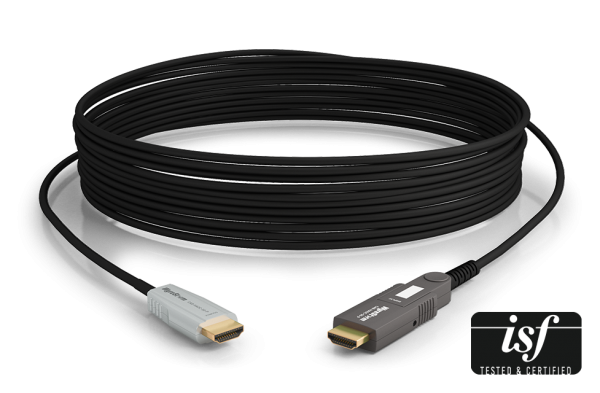

WyreStorm 24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60 | Kevlar strengthened | Detachable Head | Plenum & FT6 Rated

The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication. This model features a detachable RX head and is certified for fire safety.

HDMI 2.0 AND BEYOND

Using a 4-core transmission system and passive optical transmission, the CAB-HAOC cables are compatible with content exceeding the current HDMI 2.0 standard. With each core rated at 6Gbps, the combined bandwidth means that the CAB-HAOC will support future content up to 24Gbps, equating to 4K/60 4:4:4 10-bit. Emerging resolutions in gaming are also supported, such as 2560x1440p @144Hz.

PASSIVE HDMI COMMUNICATION

It’s not all about raw bandwidth and transmission power, HDMI technology works by sending huge amounts of invisible “metadata” in both directions and it’s this information that makes or breaks a viewing experience. WyreStorm Active Optical Cables have been verified to not only ensure that the A/V signal gets to its destination but also the invisible metadata too. CEC, ARC, ALLM and VRR are all supported by WyreStorm HAOC’s.

GLOBAL HDR STANDARD SUPPORT

The emergence of HDR has inevitably meant there are several methods of displaying deeper colour palettes. Open standards such as HDR-10 & HLG and licensed versions like Dolby Vision & SL-HDR1 are all currently competing formats that all vary in their method of effectively achieving the same end result. WyreStorm HAOC’s, being a transparent transmission medium, support all known HDR standards and send them uncompressed.

Features

• Uncompressed optical transmission of HDMI content up to 24Gbps:
  • 2K (2560 x 1440p) 4:4:4 8-bit at 144Hz
  • 4K (4096 x 2160p) 4:4:4 10-bit HDR at 60Hz
  • 5K (5120 x 2880p) 4:4:4 10-bit HDR at 30Hz
• Compatible with all current and emerging HDR standards at up to 60Hz:
  • HLG (Hybrid Log Gamma)
  • HDR-10 and HDR-10+
  • Dolby Vision
  • PQ (Perceptual Quantizer)
  • SL-HDR-1
• Ready for future HDCP 2.3 content encryption
• True native HDMI communication ensures CEC and ARC communication between compatible devices
• Supports emerging HDMI technologies such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
• Perfect for use in environments with excessive EM or RF interference
• Kevlar protected communication cores
• High quality aluminum construction with low-profile 20mm/0.79” TX head
• Supplied coiled in box
• No single use plastic included* #SUPFree
• Available in 2m, 4m 6m & 8m lengths in Essentials range and 10-50m lengths available in WyreStorm Professional range of products
