Name: WyreStorm 4K HDR 4:4:4 60Hz HDBaseT3.0 Receiver with USB Device Inputs, Audio De-embed & PoH 100m/328ft over Cat6 - RX3-100
Brand: WyreStorm
SKU: UK-WYR-RX3-100
Availability: OutOfStock

WyreStorm 4K HDR 4:4:4 60Hz HDBaseT3.0 Receiver with USB Device Inputs, Audio De-embed & PoH 100m/328ft over Cat6 - RX3-100

Product code: UK-WYR-RX3-100

Condition: New

Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

Request A Quote

Description
Warranty Information
Shipping Policy
Protection Plans

Description

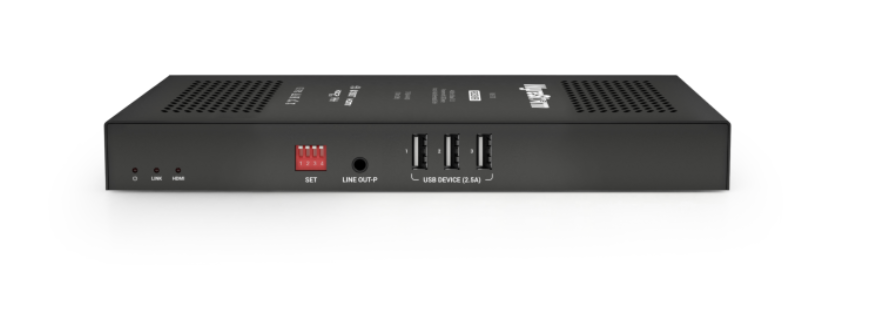

WyreStorm 4K HDR 4:4:4 60Hz HDBaseT3.0 Receiver with USB Device Inputs, Audio De-embed & PoH 100m/328ft over Cat6 - RX3-100

Introducing the RX3-100, an uncompressed 18G HDBaseT 3.0 receiver that achieves signal transmission up to 100m/328ft at 4K@60Hz via Cat.6A cable. With HDBaseT 3.0, experience USB data transfers of up to 300Mbps, nearly doubling HDBaseT 2.0’s capability of 190Mbps. This heightened capacity supports high-speed connections to 4K webcams, whiteboards, and data drives. The RX3-100 seamlessly pairs with any of WyreStorm’s HDBaseT 3.0 transmitter options, such as the SW-120-TX3 and SW-120-TX3-Ux for a powerful switching extender solution!

UNCOMPRESSED SIGNAL TRANSMISSION

HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable.

USB 2.0 PASSTHROUGH

The main feature of the RX3-100 is the 3 device ports, which are capable of USB 2.0 pass-through, which offers not only KVM functionality for extension of a keyboard/mouse or touchscreen, but also full data transfer capabilities of 300Mbps for 4K UHD webcams and high-speed data drives.

AUDIO DE-EMBED AND PASSTHROUGH

The RX3-100 offers both audio de-embed from the source HDMI and independent audio pass-through lane from line-in audio from the TX simultaneously.

BIDRECTIONAL CONTROL & POH

The RX-100 boasts bidirectional PoH, which can power or be powered by a transmitters such as the SW-120-TX3-Ux or SW-120-TX3, while also passing bidirectional RS-232 control to either the display or back to the head-end. If RS-232 isn’t an option, it also supports CEC signals from the transmitter

Additional Features

HDBaseT 3.0 Receiver supporting:
- Uncompressed content up to 4K@60Hz 4:4:4 8bit
- HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
Compatible with DVI-I and DP++ v1.3 signals from compatible devices
USB 2.0 passthrough offering 300Mbps transfer and HID extension
Features 3x USB device ports
Supports independent lane analog audio pass-through from transmitter to receiver
Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
