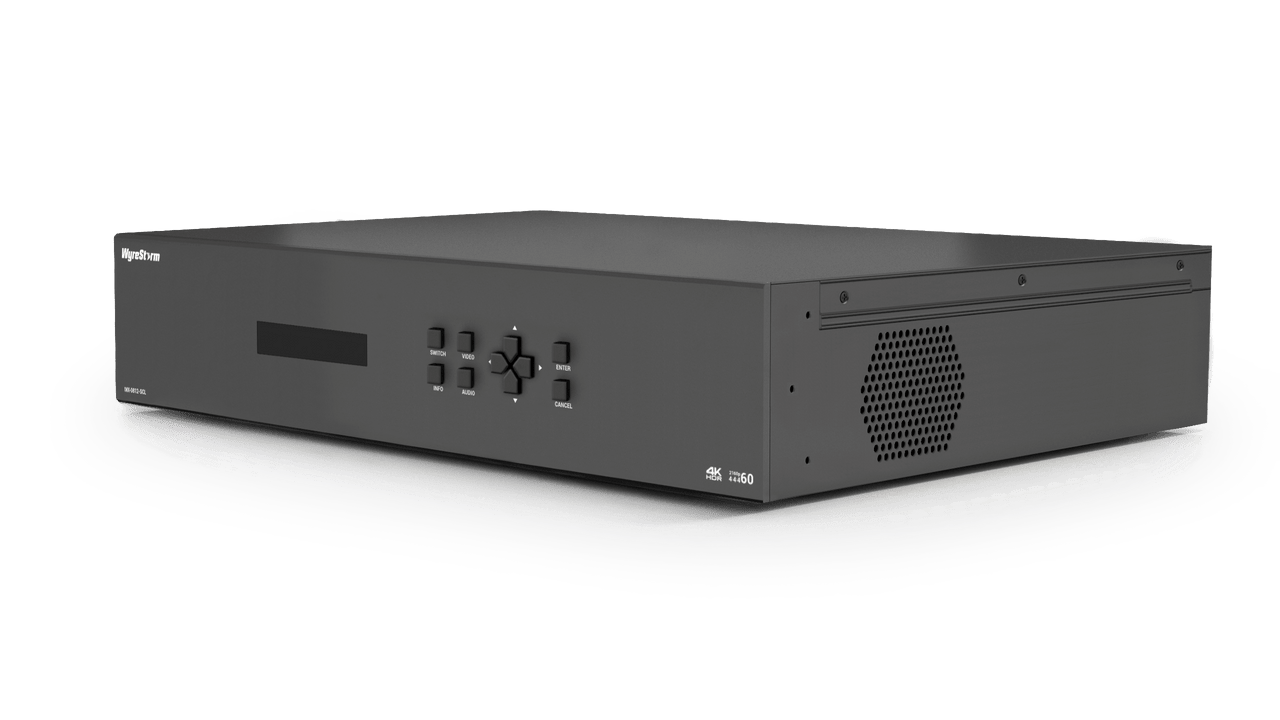

WyreStorm 4K60 8×12 Advanced Seamless Scaling HDMI Matrix - MX-0812-SCL

The MX-0812-SCL is an HDMI matrix switcher featuring 8 HDMI inputs and 12 outputs, each capable of handling 4K60 video, with advanced scaling for each output. It includes video processing capabilities for video walls, such as cropping, bezel correction, and the ability to rotate images, as well as multiview options like Picture-in-Picture and Quad view. Designed for various applications, it offers seamless switching, video wall control, and multiview functions (coming in an update), alongside comprehensive audio support through HDMI de-embedding, analog, and Dante audio connections.

CONNECTIVITY & SCALABILITY

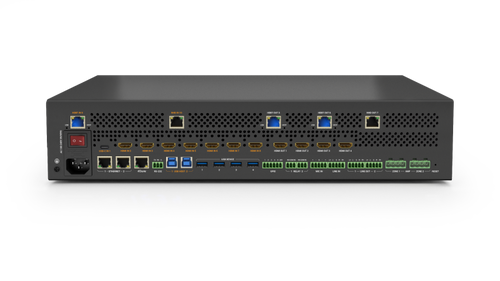

The MX-0812-SCL offers a significant level of connectivity with 8 HDMI inputs and 12 HDMI outputs, all capable of handling 4K60 video. Each output is equipped with a 4K60 scaler, ensuring high-definition video scaling across multiple displays.

ADVANCED VIDEO PROCESSING

Featuring video wall processing capabilities, including cropping, bezel correction, scaling, and the ability to rotate images by 90, 180, or 270 degrees (Outputs 9-12). Additionally, it supports grouping functions for enhanced video wall presentations. The matrix also offers sophisticated multiview capabilities, supporting the simultaneous display of up to four separate video sources on a single screen. When activated, the multiview configuration is mirrored across HDMI outputs 1 to 4, ensuring consistent visual outputs on multiple displays. It supports a variety of multiview layouts, including Picture-in-Picture (PIP), Picture-by-Picture (PBP), Split Screen, Master view, and Quad view, catering to different viewing preferences and requirements. This flexibility makes it ideal for scenarios requiring real-time monitoring of multiple video feeds, such as control rooms, live events, and professional broadcasting environments.

FLEXIBILITY

The Matrix provides three distinct working modes tailored for system integrator projects: seamless matrix switching, video wall controller, and multiview switcher. This versatility makes it well-suited for a variety of applications and user needs. Designed with flexibility in mind, it supports both vertical and horizontal screen orientations and offers flexible configuration to meet the diverse requirements of professional environments

INDEPENDENT AUDIO SWITCHING & DANTE

The MX-0812-SCL integrates HDMI audio de-embedding, analog audio connections, and a Dante 4×4 network for expansive audio distribution. Specifically, the Matrix supports de-embedding audio from 8 HDMI inputs and includes 4 Dante inputs for extensive networked audio integration. Additionally, it provides 4 analog audio outputs and 4 Dante audio outputs, enabling flexible audio setups. A key highlight is the capability for independent audio switching, allowing any of the 12 audio inputs to be directed to any of the 8 audio outputs, ensuring tailored audio management for diverse requirements.
