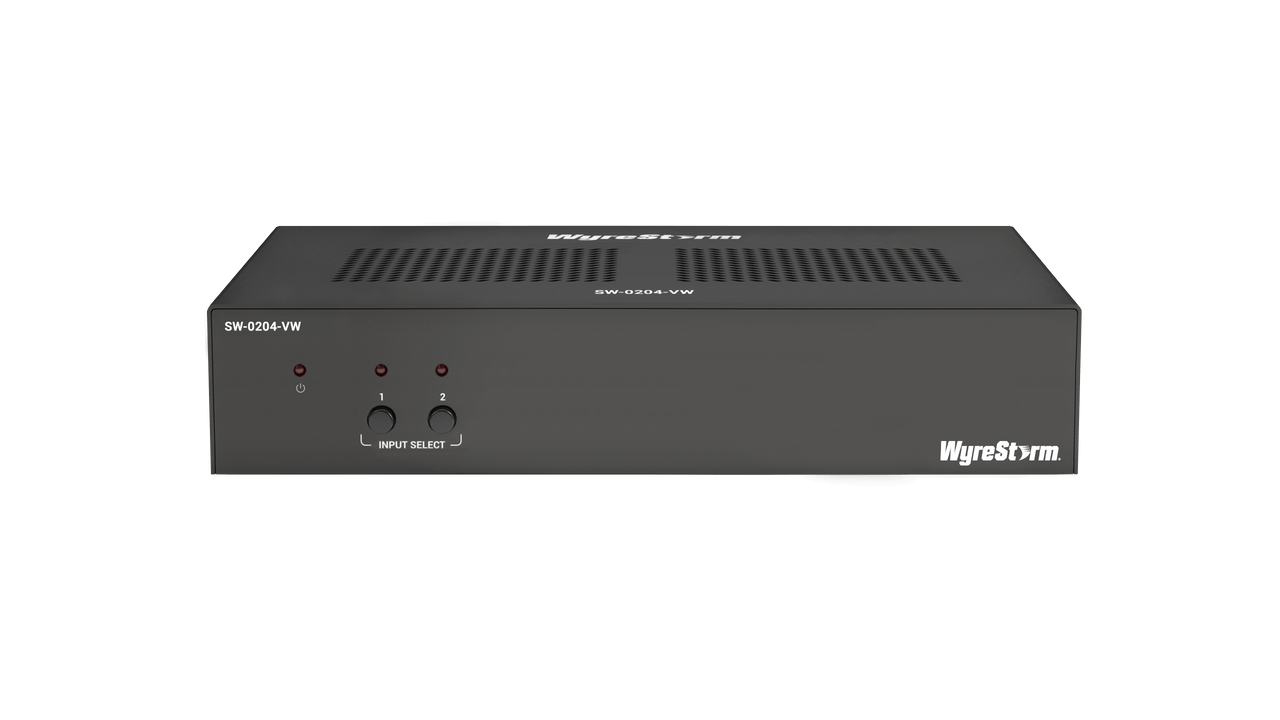

WyreStorm 4K60Hz 4-Output Video Wall Processor - SW-0204-VW
The SW-0204-VW 4x HDMI 2.0 Video Wall processor is an advanced 2x inputs (alternative) and 4x outputs video wall processor, providing video wall layout of 1×4 and 2×2 (rows x columns) with 4K and ultra-wide resolution support, independent analog audio output and image scaling. It also supports a user-friendly Web-UI, RS232 and Telnet for optimal flexibility control.
SELECTABLE VIDEO WALL LAYOUT
The SW-0204-VW supports 4-screen video walls with selectable modes, including 1×4 and 2×2 configurations. It extends the input video source across four displays, delivering stunning visual detail and an enhanced viewing experience. Advanced features, such as bezel correction, video wall flip, and flexible layout adjustments, allow precise customization for seamless multi-screen alignment.
4K60 SUPPORT WITH IMAGE SCALING
Fully compatible with 4K@60Hz video content, the SW-0204-VW adheres to HDMI 2.0 and HDCP 2.3 standards. Its built-in scaling processor allows both upscaling and downscaling to resolutions up to 4K@60Hz 4:4:4, ensuring superior image quality and a fully immersive visual experience.
ULTRA-WIDE RESOLUTION SUPPORT
Supporting ultra-wide resolutions such as 3840×600, the SW-0204-VW is ideal for landscape-oriented video walls. This feature makes it a perfect choice for digital signage, conference rooms, and large-scale presentations.
ENHANCED AUDIO FEATURES
The SW-0204-VW offers advanced audio functionality, including audio de-embedding from HDMI inputs and an audio mute option. These features provide clear, reliable audio output, complementing the visual performance of the video wall.
Features
- Capable of processing to a 1×4 or 2×2(rows x columns) video wall
- HDMI 2.0 video connection include 2 HDMI inputs and 4 HDMI outputs
- HDCP 2.3 compliant and backward compatible for secure content transmission
- Supports up to 4K@60Hz 4:4:4 8bit video content
- Image scaling up and down to any resolution — up to 4K@60Hz
- Audio features including HDMI de-embed audio and MUTE
- Bezel correction
- Video-Wall Flip in full screen layout
- EDID management for efficient control and customization of connected displays
- Control by Web-UI, RS232 and Telnet
- Firmware upgrade via Web-UI
- Locking DC power jacks
- 12v/3a DC with AU, EU, UK, US Power cables included
