18 GBPS BACKPLANE
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be managed by the TX-H2X-ADZ and sent over distance. Newly emerging 60Hz HDR-10 & Dolby Vision content can also be handled by this powerful future-ready device.
AUDIO DSP
No two rooms or even installations are the same. That’s why we’ve coupled to each audio zone output; a powerful audio DSP, which allows an integrator to have complete control over the audio configuration. Also, a 10-band equalizer, volume and variable delay, which can be set per zone for a truly customized room-by-room balance.
GREAT VALUE OPTION
Omitting the complex HDBaseT transmission port, this card allows an input, output and audio functionality to still be added to an H2XC matrix. Whether adding just another audio zone or tapping into the 18Gbps backplane for further I/O, this card can still do it all.
HDCP2.2
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the growing H2 product family, all H2XC matrix cards and peripheral devices support the multi-point distribution of this content over HDMI, HDBaseT and multi-mode fibre.

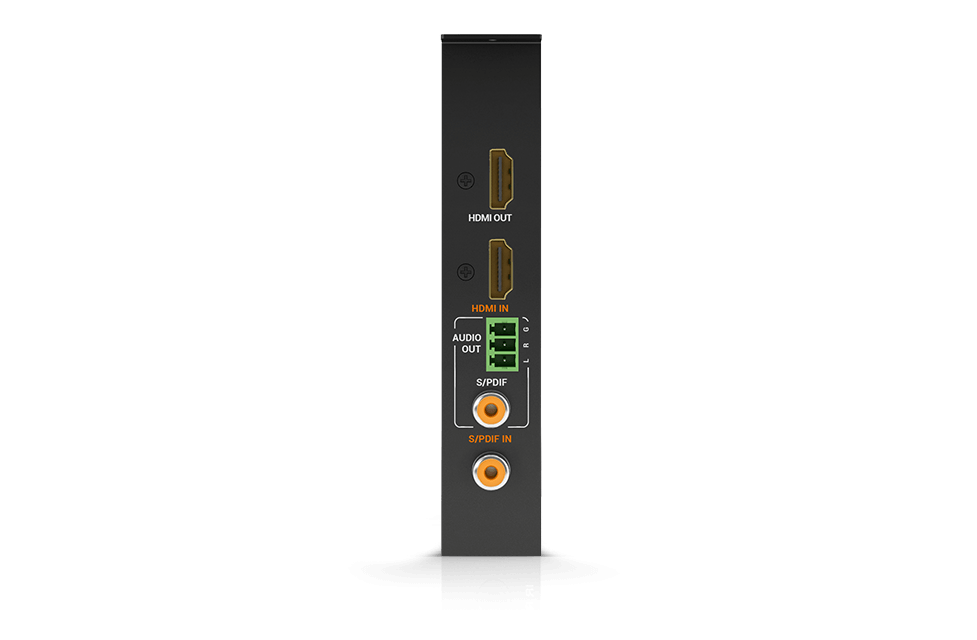

- 18Gbps HDMI input to matrix backplane
- Switched HDMI output capable of 2160p 4:4:4 and HDR @ 60Hz
- Audio zone output: analog stereo pre-out with mirrored S/PDIF output
- Separate S/PDIF input for additional audio source
- Adds additional audio zone + DSP to an H2XC chassis
- Supports 4K/60 4:4:4 or RGB content
- Compatible with all HDR standards such as HDR-10, HLG and Dolby Vision
- Passes all audio formats including DTS:X and Dolby Atmos
- Cost-effective pure HDMI card aligns perfectly with WyreStorm Active Optical HDMI cables
